Wall Installation
Note: Before installation, please ensure the UC-IVB-50 is disconnected from a power source.
To install the UC-IVB-50 on a wall (drywall):
1. Using the wall hanging bracket as a guide, mark and then drill four (4) 1/4” pilot holes for the drywall
anchors on the desired wall. Insert the 4 provided drywall anchors into the pilot holes in wall.
Secure the wall hanging bracket to the wall by using the provided bracket mounting screws. Do not
overtighten as this may damage the drywall and/or anchors.
2. Release the tabletop stand from the UC-IVB-50 by removing the 3 mounting screws located on both
arms of the tabletop stand on the back of the UC-IVB-50. Please reserve these screws for the next
step.
3. Use the mounting screws from the previous step to attach the wall hanging mount to the
UC-IVB-50.
4. Attach the UC-IVB-50 to the wall by placing the wall hanging mount on the open lip of the wall hanging
bracket. The wall hanging mount attached to the UC-IVB-50 can be tilted to make hanging easier and
to adjust the angle of the UC-IVB-50 once it is attached to the wall.

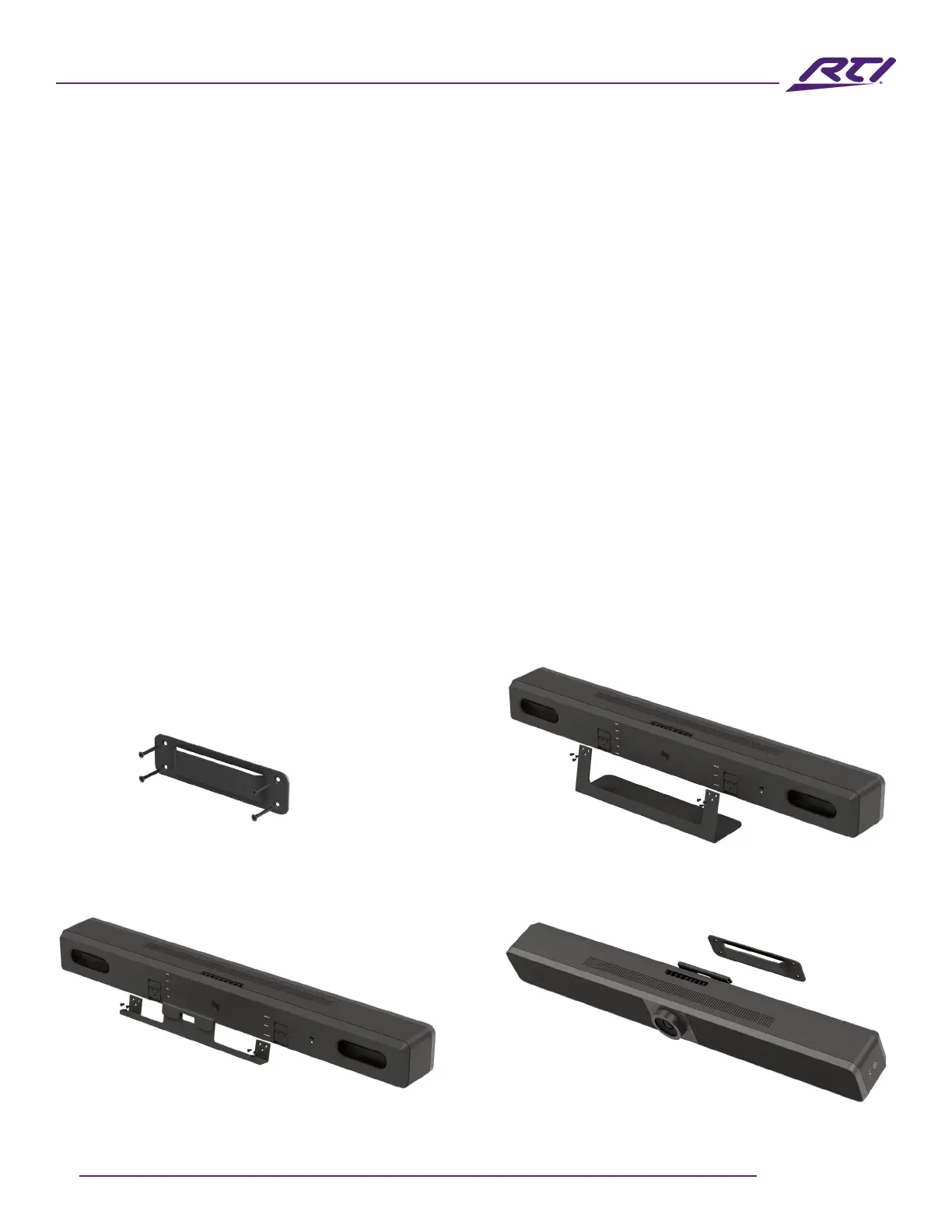

Drill holes for the Wall
Hanging Bracket
Remove Tabletop Stand
Attach Wall Hanging Mount
Hang Video Bar
on the Wall
1. 2.
3. 4.
