4 | Instruments | 4.1 | VSC – VectorscopeEN-38
Manual | TM3-Primus
The Audio Vectorscope (VSC) displays the phase relationship (Lissajous
display) between the two channels of a channel pair in real time on a co-
ordinate plane rotated by 45°.
So the behaviour of the Lissajous fi gure and its spreading may give infor-
mation on e. g. the width of stereo base or if there are comb fi lter effects
or phase shifts or rotations in the signal. If you see a straight vertical line,
you might have a mono signal.
After its selection, the instrument will be displayed in the upper half of the
screen.
Parameter
There are no adjustable parameters available for the Audio Vectorscope.
In chapter 9 | Specifi cations you may fi nd the parameters set by factory.

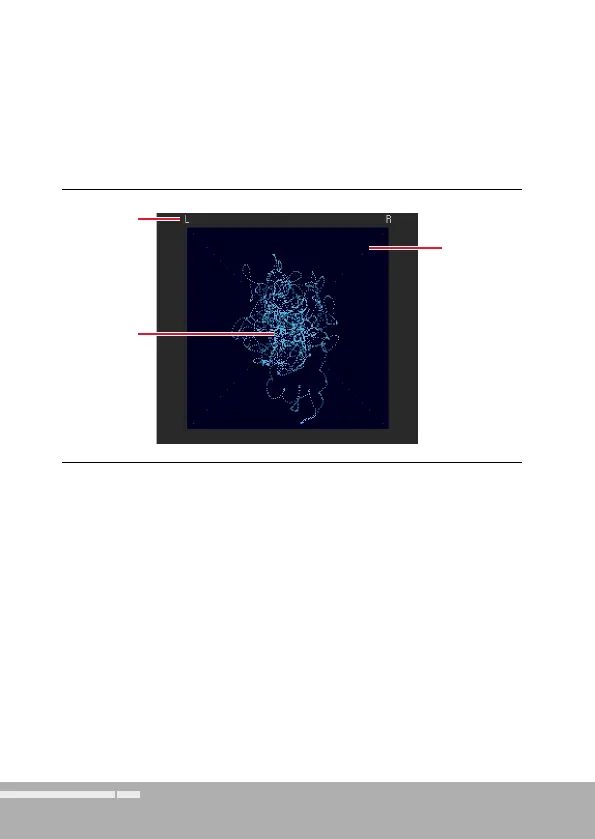

Lissajous
fi gure (Sig-
nal vectors
have their
common
source in
the center)
Coordinate
plane
(rotated 45°)
4.1 | VSC – Vectorscope
Instrument
Channel
designation
