The RTA instrument displays the spectral content of the input channels
using 31 fi lter bands in 1/3 octave steps. It measures the magnitude of
an input signal per frequency band. An optional “H” band shows spectral
signal components above 20 kHz. The display’s reference point and re-
solution can be shifted for a clearer readout in the window. The RTA level
display is always relative.
Depending on the shape of the distribution curve appearing through the
amplitudes of the bargraphs, you can evaluate a bassy or trebly sound
material or missing frequency parts.
After its selection, the instrument will be displayed in the upper half of the
screen.

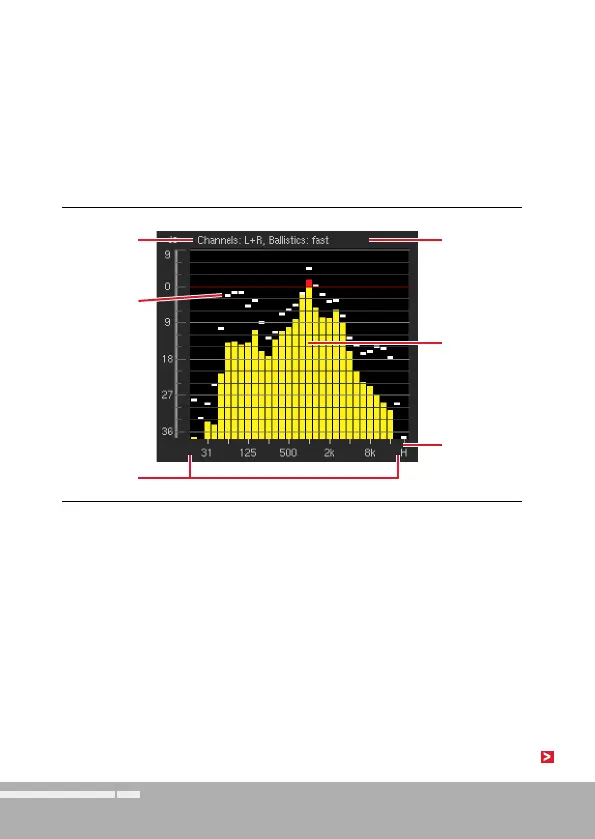

Bargraphs
showing the
relations
between the
frequency
bands
Display of
response
time
Display of
input chan-
nels
Peak hold
indicator
HF band
1/3 octave
31 bands
showing the
frequency
range
