Introducing the ZoneFlex Access Point
Getting to Know the Access Point Features
Rear Panel Features
Figure 4 shows the rear panel of the ZoneFlex 7962. For a description of each rear
panel part, refer to Table 7
.

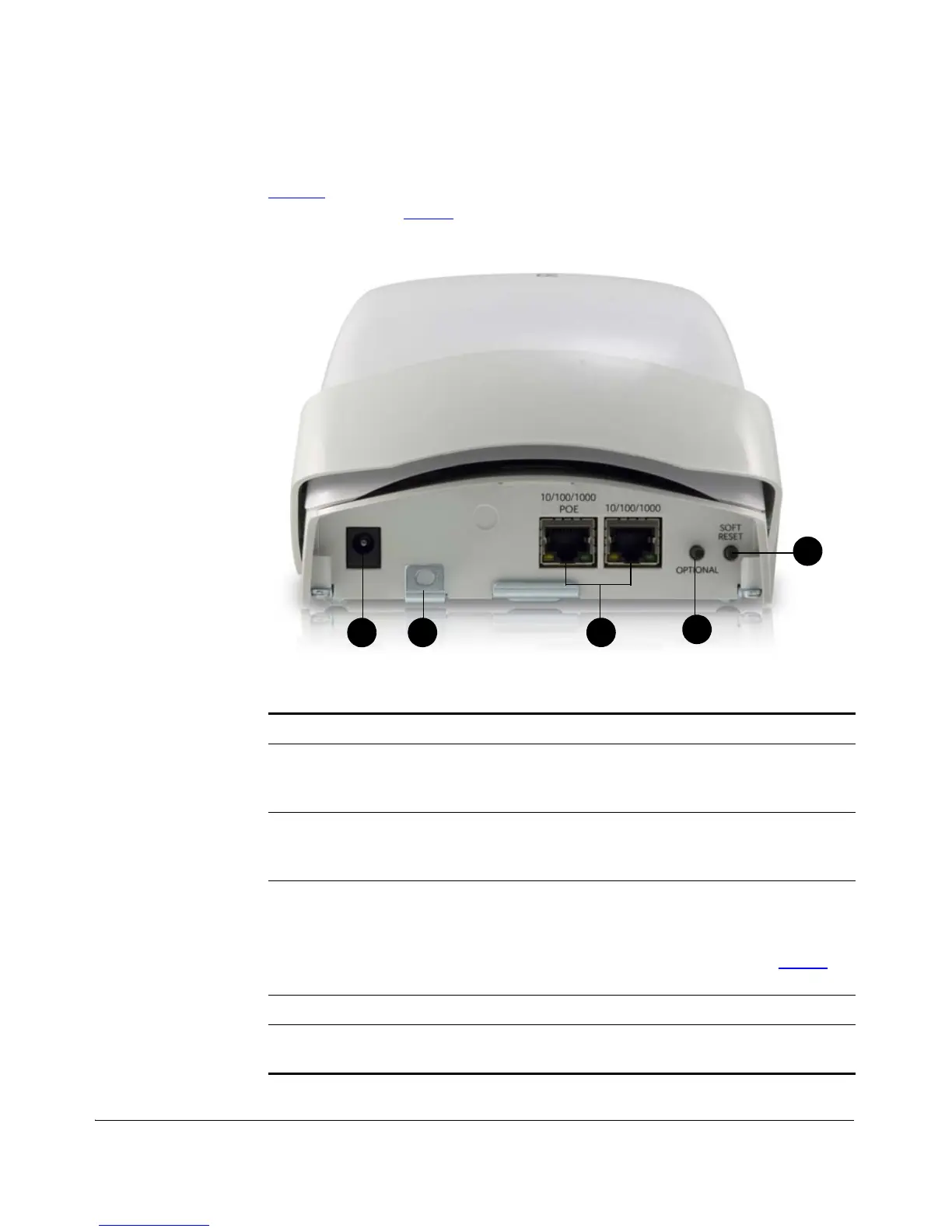

Figure 4. ZoneFlex 7962 rear panel features
Table 7. ZoneFlex 7962 rear panel elements
Number Item Name Description
1 Power Connect the power adapter to this socket. (Input
110-240V AC, Output 12V 1.0A DC). Power can also
be supplied via the 10/100/1000 PoE port.
2 Lock Hasp The lock hasp works with a cable or Ruckus Wireless
mounts. The recommended lock type is Masterlock
120 series (D, T, Q, KAD types).
3 LAN Ports Two RJ-45 ports, one for a 10/100/1000 PoE (Power
over Ethernet) connection and another for a 10/100/
1000Mbps connection.
Each Ethernet port has two LEDs. Refer to Tab l e 8
for
LED descriptions.
4 OPTIONAL Button Not active in this model at this time.
5 SOFT RESET
Button
Use to reset AP. This is a normal reset and does not
set AP back to factory defaults.
