Introducing the ZoneFlex Access Point
Getting to Know the Access Point Features
ZoneFlex 2942 Access Point
The side panel of the ZoneFlex 2942 features four LED indicators that can be used to
assess both device and network status. The rear view displays the connector panel,
which includes the LAN ports and the optional external antenna connection. Refer to
the following illustrations and tables to learn more.
Side Panel Features
The ZoneFlex 2942 chassis includes a Kensington lock (on the side of the unit opposite
the OPT and DIR LEDs) and a lockable “sliding door” (shown in Figure 13
) that hides
and protects the rear connector I/O panel and status LEDs. As your AP may be placed
in a public location, the lock and door mechanisms can help prevent tampering or
theft.

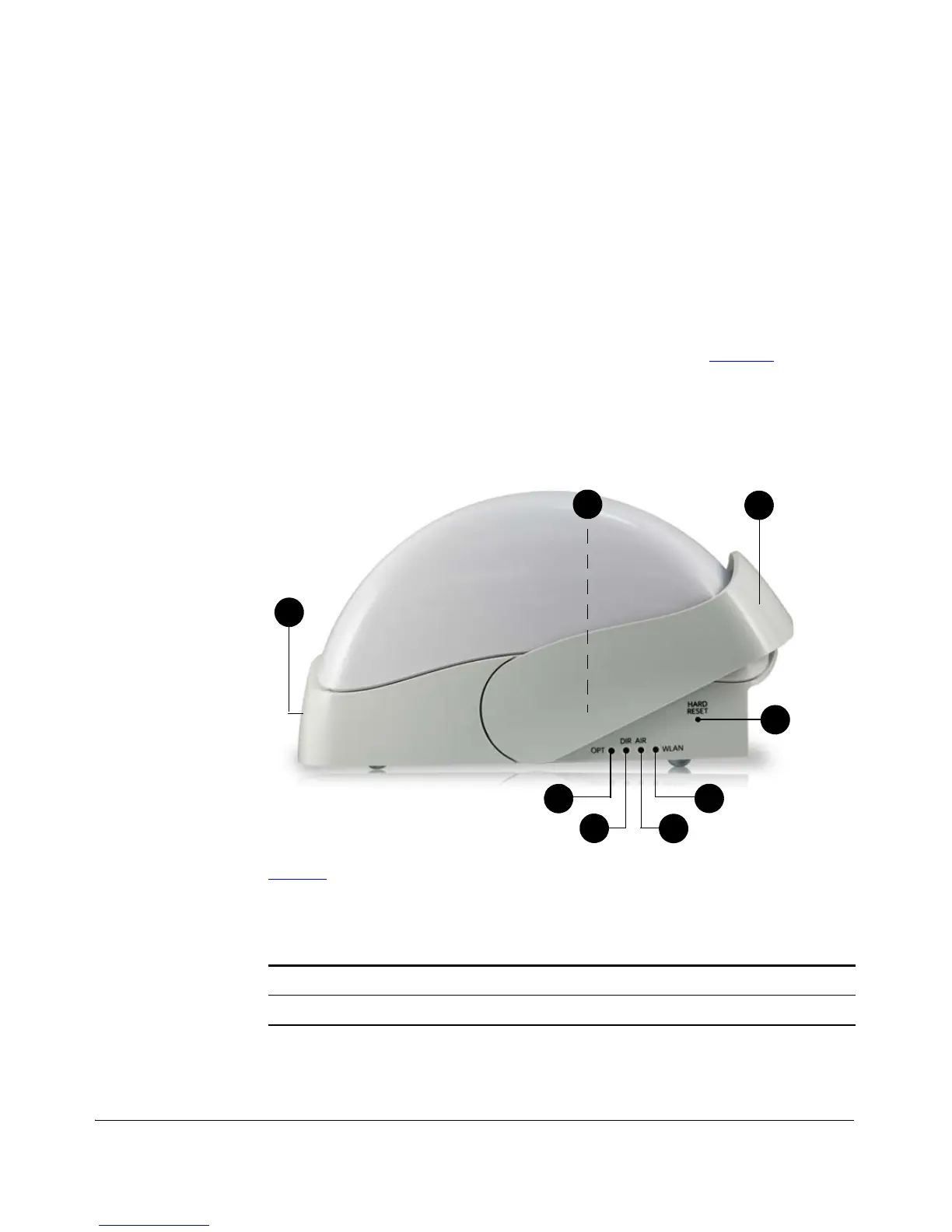

Figure 13. ZoneFlex 2942 side panel features
Tabl e 17
lists the various LED states on ZoneFlex 2942 and describes what each LED
state means. It also describes how to use the HARD RESET button and other elements
on the side panel.
Table 17. ZoneFlex 2942 side panel elements
Number LED/Button Name Description
1 OPT LED Not used in this model
6
5
1
2
3
4
7
8
