Introducing the ZoneFlex Access Point
Getting to Know the Access Point Features
Rear Panel

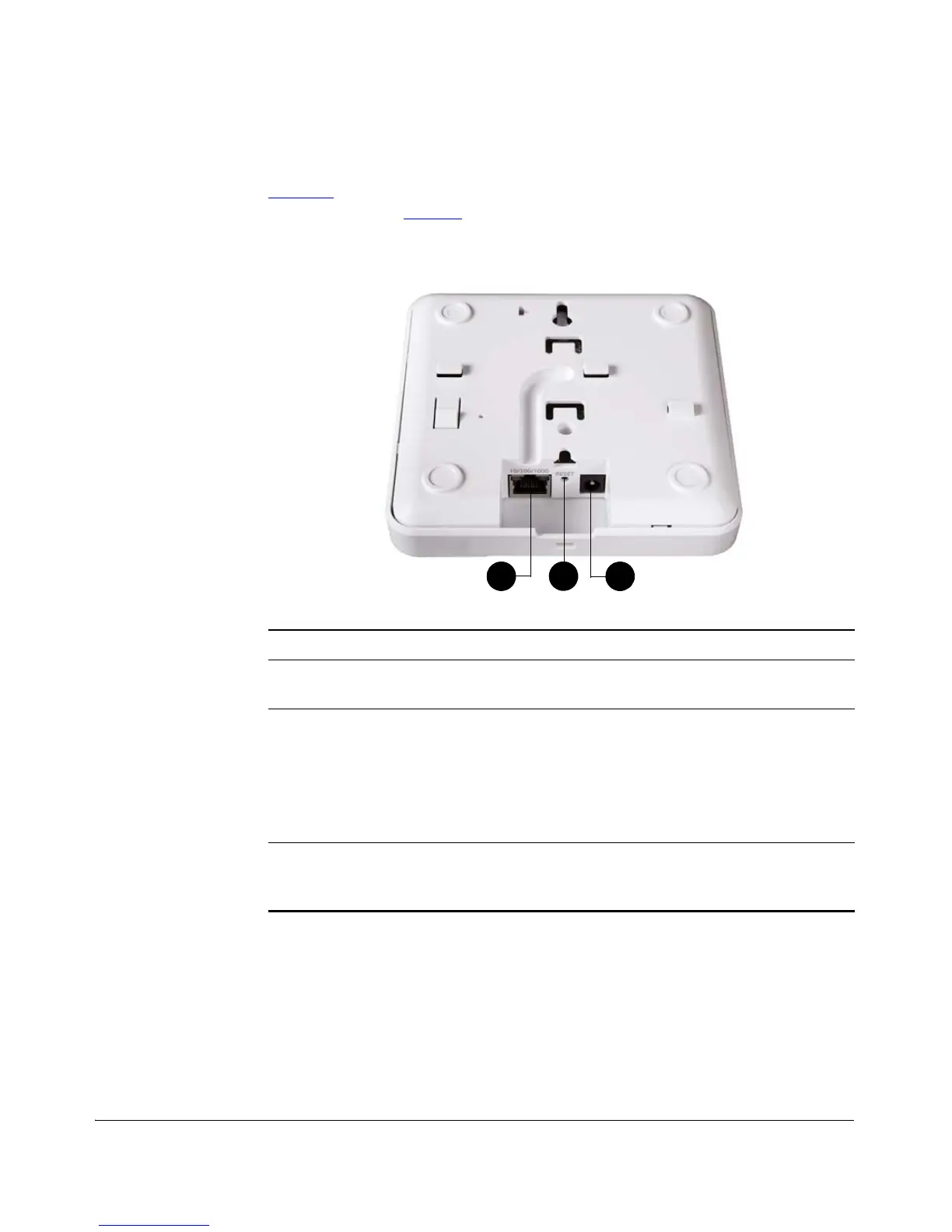

Figure 12 shows the bottom view of ZoneFlex 7321. For a description of each rear
panel part, refer to Table 16
.
Figure 12. ZoneFlex 7321 rear panel
Table 16. ZoneFlex 7321 rear panel elements
Number Item Name Description
1 10/100/1000 PoE
Port
One RJ-45 port for a 10/100/1000 PoE (Power over
Ethernet, 802.3af) connection
2 RESET Button Pressing, and then quickly releasing this internal
button reboots the AP. Pressing and holding it for
six seconds resets the AP to factory default settings.
CAUTION! Resetting the AP to factory default
settings will erase all settings that you configured
previously.
3 Power Connect the power adapter (12 VDC/1.25A) to this
socket. Power can also be supplied via the 10/100/
1000 PoE (802.3af) port.
