Introducing the ZoneFlex Access Point
Getting to Know the Access Point Features
Rear Panel
Figure 10 shows the rear panel of the ZoneFlex 7341. For a description of each rear
panel part, refer to Table 14
.

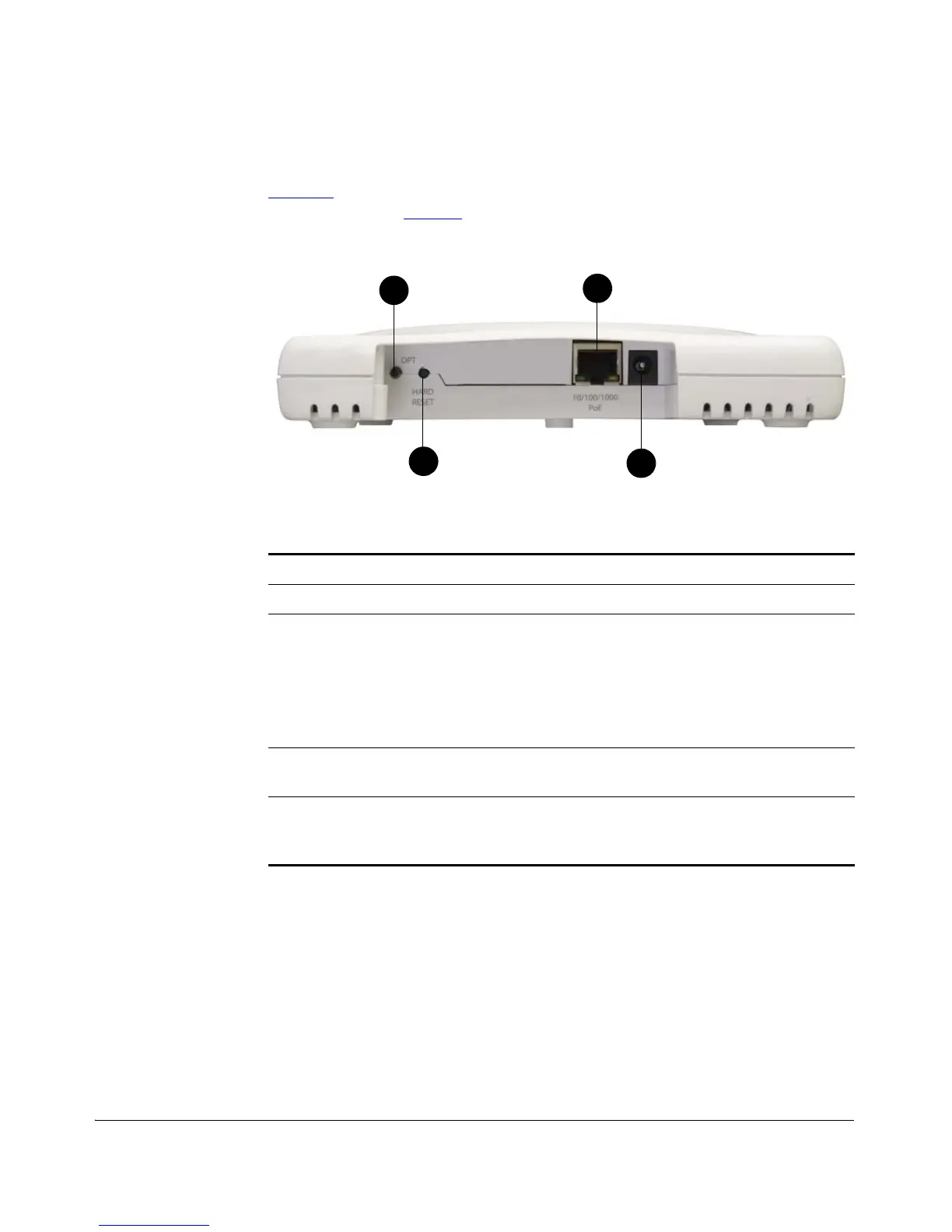

Figure 10. ZoneFlex 7341 rear panel
Table 14. ZoneFlex 7341 rear panel elements
Number Item Name Description
1 OPT Button Not active in this model at this time.
2 HARD RESET Button Pressing, and then quickly releasing this internal
button reboots the AP. Pressing and holding it for
six seconds resets the AP to factory default settings.
CAUTION! Resetting the AP to factory default
settings will erase all settings that you configured
previously.
3 10/100/1000 PoE
Port
One RJ-45 port for a 10/100/1000 PoE (Power over
Ethernet, 802.3af) connection.
4 Power Connect the power adapter (12 VDC/1.25A) to this
socket. Power can also be supplied via the 10/100/
1000 PoE (802.3af) port.
