32
Introducing the ZoneFlex Access Point
Getting to Know the Access Point Features
Rear View Features

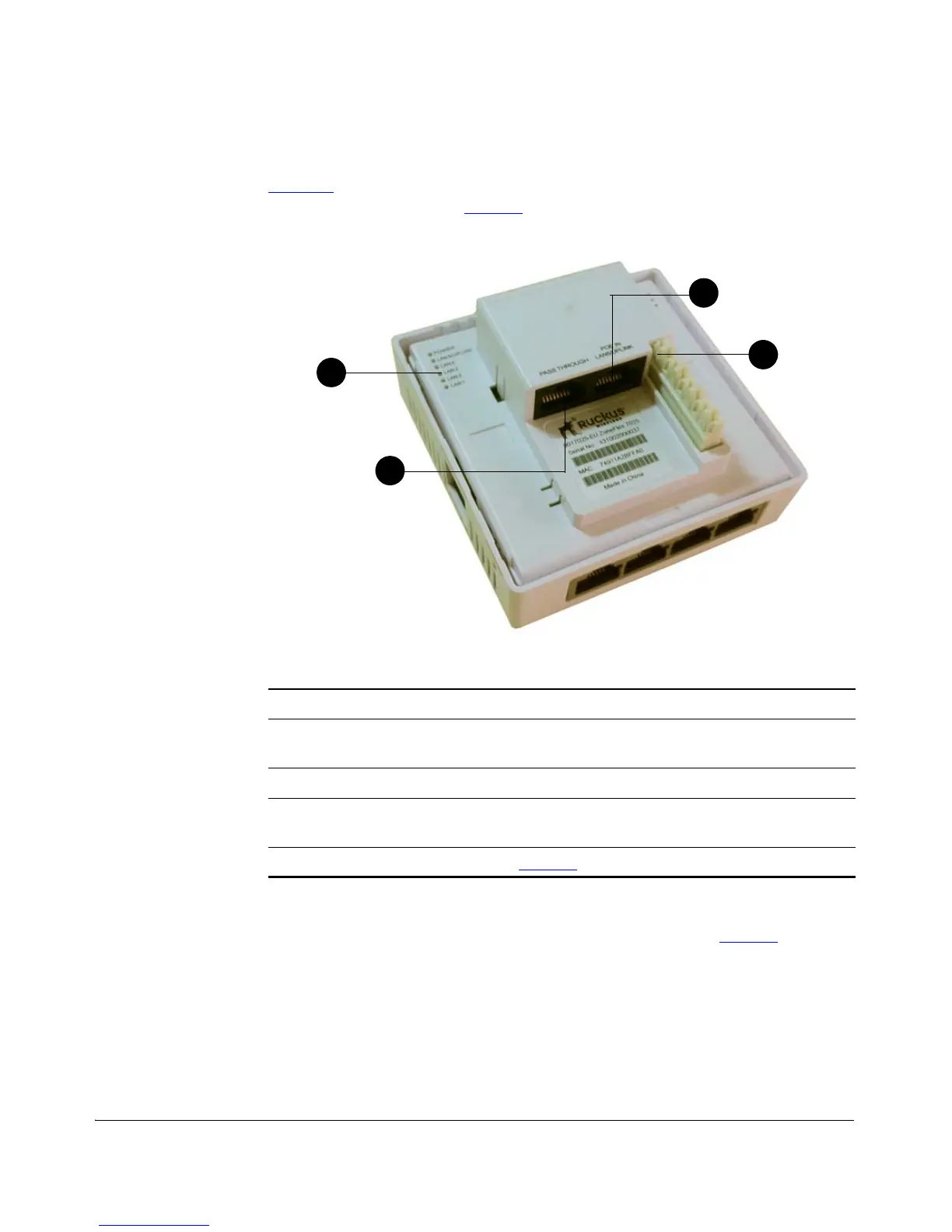

Figure 18 shows the rear panel of the ZF7025-EU model. For a description of each
rear panel element, refer to Tabl e 24
.
Figure 18. ZF7025-EU rear panel
LEDs
The LEDs for both the US and EU models are the same. Refer to Tab le 24 for
descriptions of LEDs and their behaviors. The LEDs are not visible once the AP is
installed.
Table 23. ZF7025-EU rear panel features
Number Name Description
1 PoE In LAN 5/Uplink Uplink LAN port that supports 802.3af and 802.3at
Power over Ethernet (PoE) input.
2 Punch down Block 110 punchdown block.
3 Pass Through Port Uplink RJ-45 pass through port for the pass through
connection.
4 LEDs See Tab le 24 for LED descriptions and behaviors.
