Hardware Installation and Reference Guide Product Installation
46
3.3 Installing the Switch
Precautions
During installation, note the following points:
Connect the power cables of different colors to the corresponding grounding posts.
Ensure that the connected power cables have sound contact.
Do not place heavy items on the switch.
Reserve a spacing of at least 10 cm around the chassis for good ventilation. Do not stack the
devices.
The switch should be located far away from the large power radio launch pad, radar launch pad,
and high-frequency large-current devices. If necessary, electromagnetic shielding should be adopted.
For example, use interface cables to shield cables.
Interface cables should be laid inside the equipment room. Outdoor cabling is prohibited, avoiding
damages to device signal interfaces caused by over-voltage or over-current of lightning.
3.3.1 Mounting the Switch in a Standard 19-inch Rack
The RG-S5750H series switches follow the EIA standard dimensions and can be installed in 19-inch
rack. During the installation, place the front panel of the switch to the rack. For safety purposes, screw
up the distributed screws as shown in the 3-1.

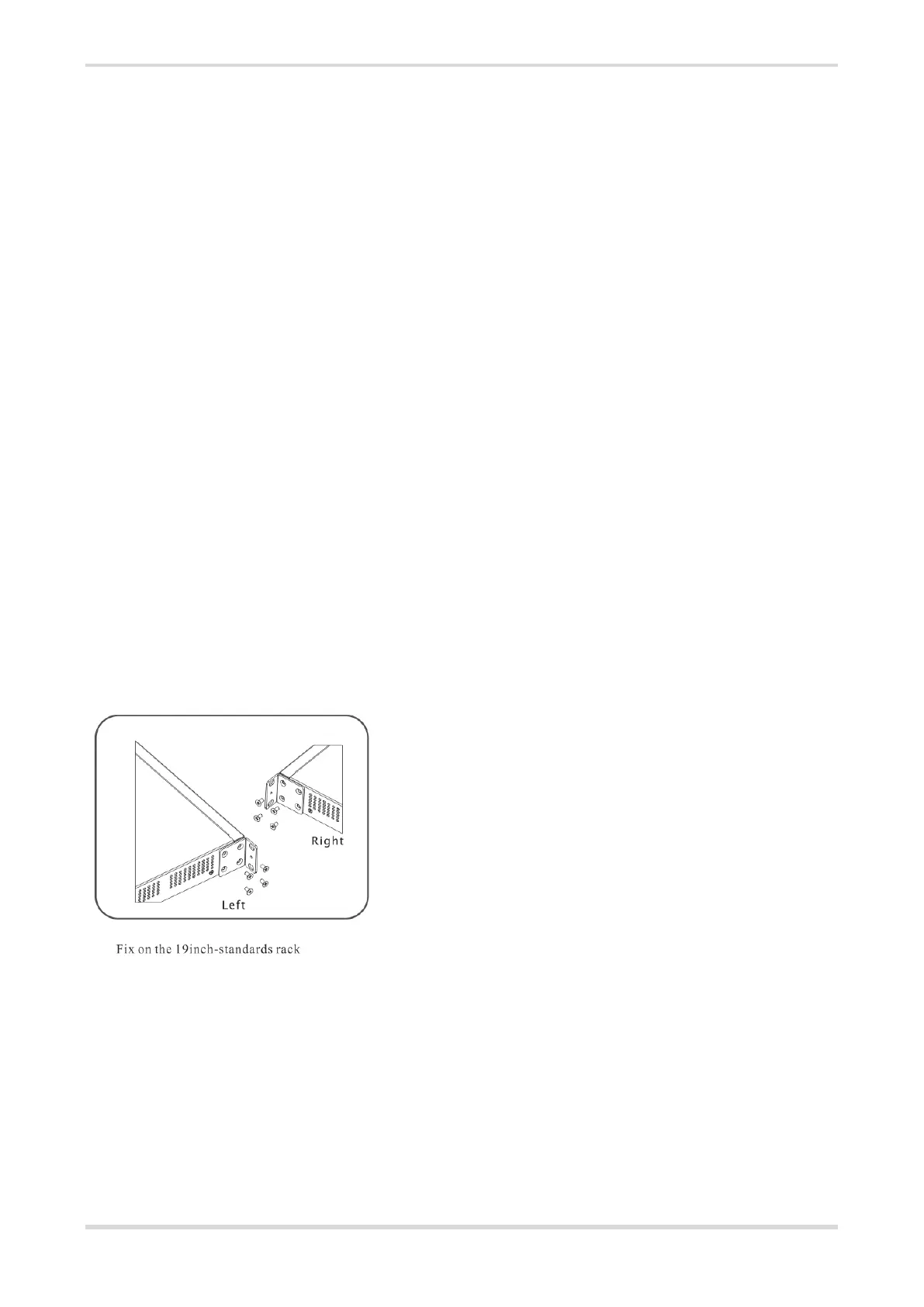

Figure 3-1 Attaching the Mounting Bracket to the Switch
3.3.2 Mounting the Switch on a Wall
Secure the brackets on the switch and mount the switch on the wall.
Figure 3-2 Attaching the Mounting Bracket to the Switch
