Ruijie RG-S5750-H Series User Manual

Hardware Installation and Reference Guide System Debugging
55
4 System Debugging
4.1 Establishing the Configuration Environment
Establishing the Configuration Environment
Use the Console cable to connect the PC to the switch.

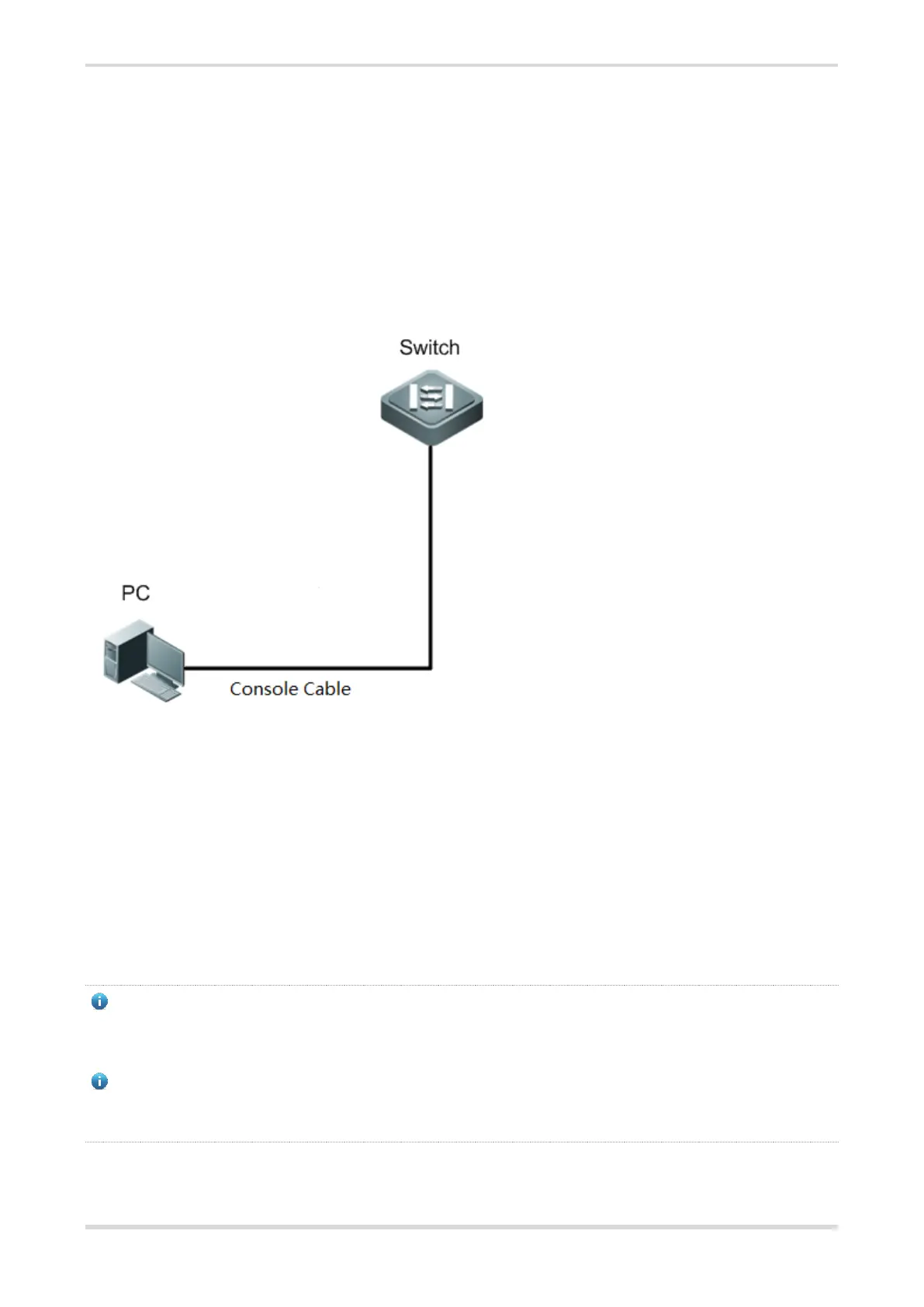

Figure 4-1 Configuration Environment
Connecting the Console Cable
The RG-S5750H series switches support the following connecting ways:
Step 1: Connect the serial & Console ports
 Connect the DB-9 end of the Console cable to the serial port of the PC.
 Connect the RJ45 end of the Console cable to the Console port of the switch.
Step 2: Connect the USB & Mini USB ports
 Connect the USB end of the cable to the USB port of the PC.
 Connect the Type-B Mini USB end of the cable to the Mini USB port of the switch.
RG-S5750H supports Mini USB Console combo by the Mini USB Console driver, which can be
downloaded on the TI website. See Appendix F for its installation. If both the Mini USB port and
Console port are connected, the default Console port is the former.
When the Mini USB port is connected to PCs, besides the Mini USB Console driver should be
installed on PCs and the cable connector is different, other configuration is the same as that of the
serial port.
Setting Terminal Parameters
