Hardware Installation and Reference Guide System Debugging
56
Step 1: Start the PC and run the terminal simulation program on the PC, such as Terminal on Windows
3.1 or HyperTerminal on Windows 95/98/NT/2000/XP.
Step 2: Set terminal parameters. The parameters are as follows: baud rate 9600, data bit 8, parity
check none, stop bit 1, and flow control as none.
Choose Setup > Program > Attachment > Communication > Super Terminal.
Choose Cancel to display the following page.
Figure 4-2

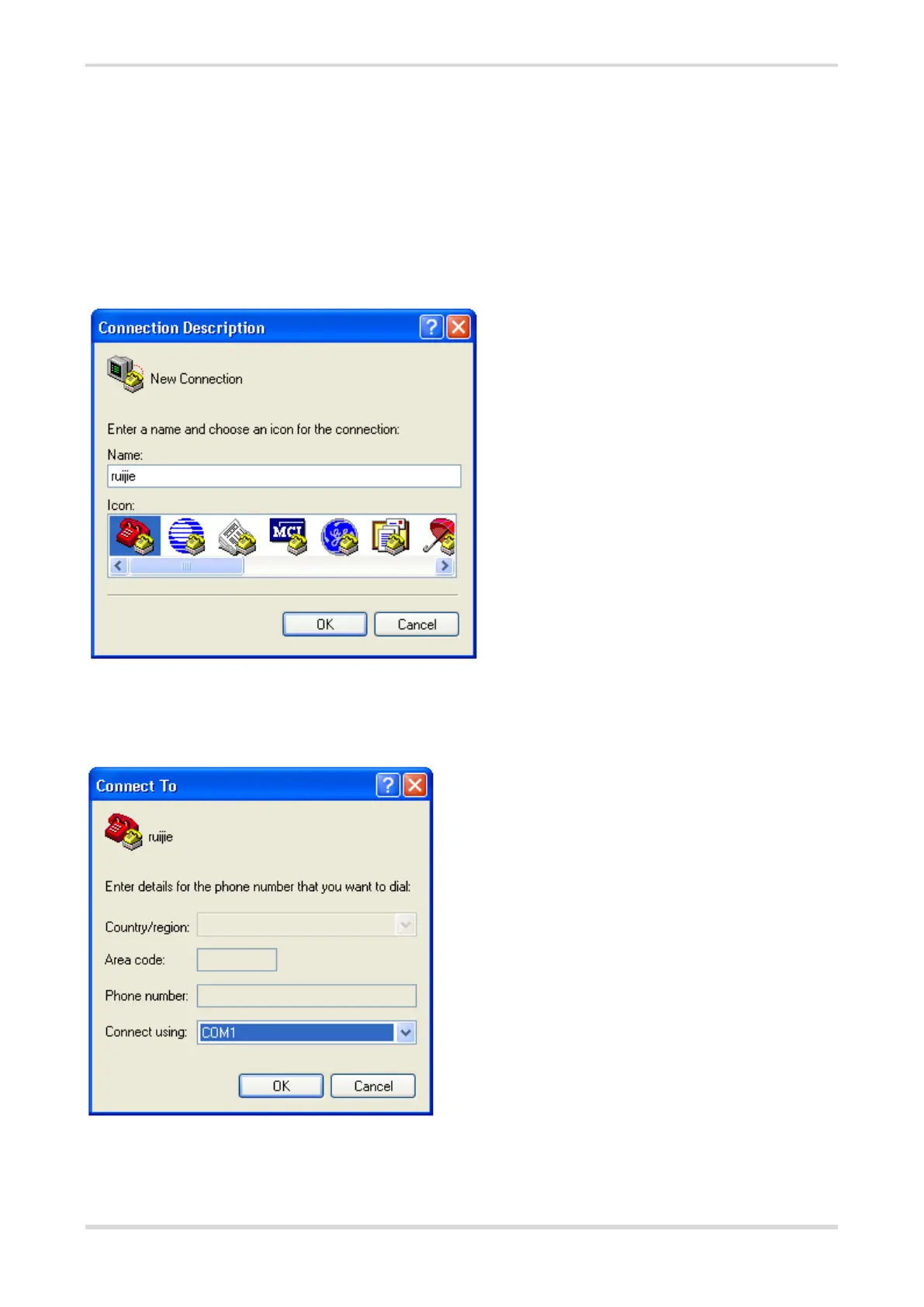

Enter the name of the new connection and click OK to display the following page. Choose the series
port used currently in the column [use when connecting].
Figure 4-3
After choosing the series port, click OK to display the series port parameter setting page, set the baud
rate at 9600, data bit at 8, parity check as none, stop bit at 1 and flow control as none.
Figure 4-4
To Next Page
