During the switch usage, the Ethernet port arrester shall be connected to the switch to prevent the
switch damage by lightning before the outdoor network cable connects to the switch.
Tools: Cross or straight screwdriver, Multimeter, Diagonal pliers
Installation Steps:
Tear one side of the protection paper for the double-sided adhesive tape and paste the tape to the
framework of the Ethernet port arrester. Tear the other side of the protection paper for the double-sided
adhesive tape and paste the Ethernet port arrester to the switch framework. The paste location for the
Ethernet port arrester shall be as close to the grounding terminal of the switch.
Based on the distance of the switch grounding terminal, cut the grounding line for the Ethernet port
arrester and firmly tighten the grounding line to the grounding terminal of the switch.
Use the multimeter to check whether the grounding line for the arrester is in good contact with the
switch grounding terminal and the framework.
According to the description on the Ethernet Port Arrester Hardware Installation Guide, connect the
arrester using the adapter cable(note that the external network cable is connected to the end of IN,
while the adapter cable connected to the switch is connected to the end of OUT) and observe whether
the LED on the borad is normal or not.
Use the nylon button to bundle the power cables.

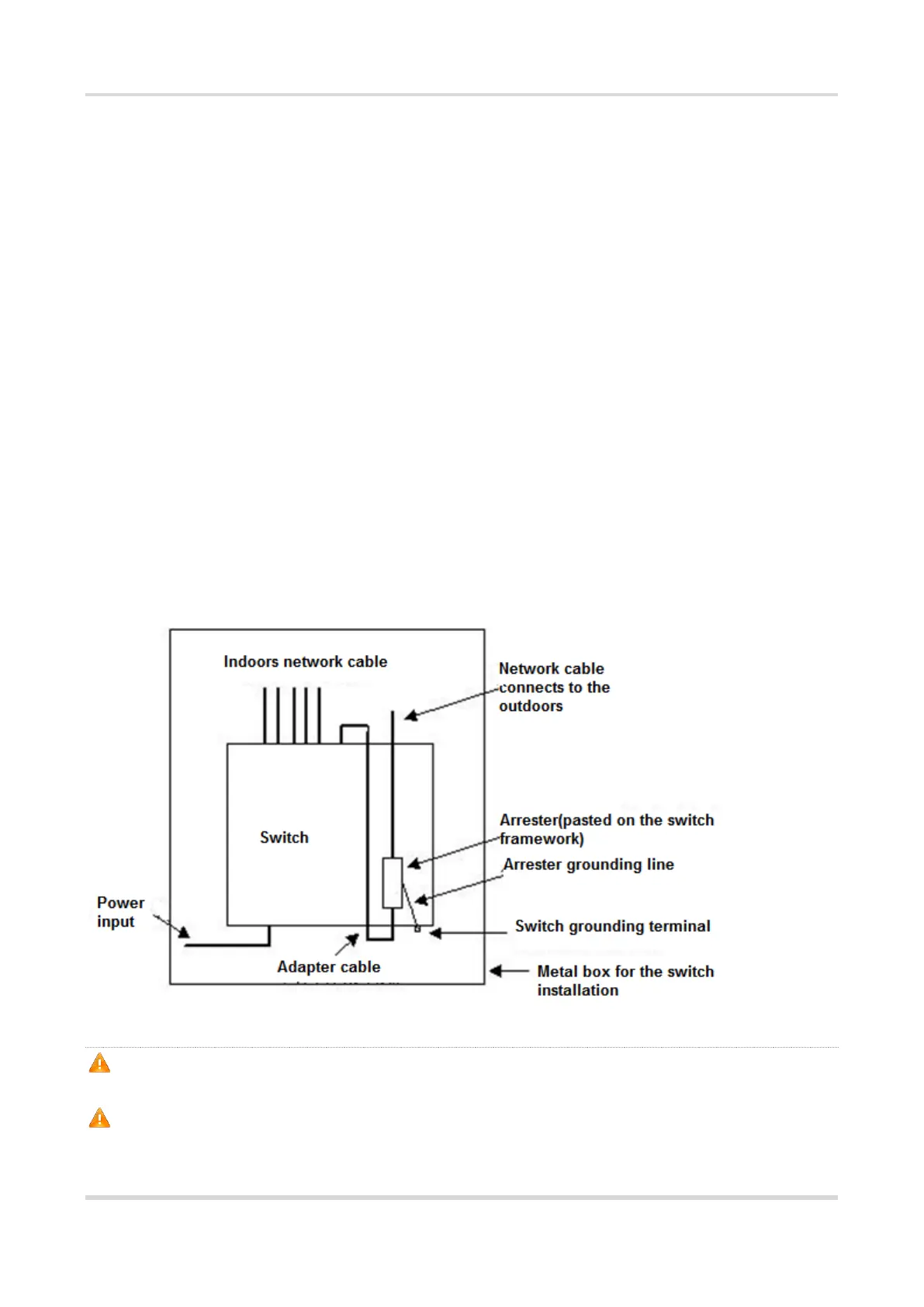

Figure C-2 Schematic Diagram for the Ethernet port Arrester Installation
The Ethernet port arrester is only for the 10M/100M copper Ethernet ports with the RJ-45
connector;
The Ethernet port arrester is not provided, the user can purchase them to address their own
pratical requirements. For the detailed information during the arrester installation, please refer to
