Hardware Installation and Reference Guide Product Overview
5
RG-S5750C-28GT4XS-H supports 2 power modules. For details, see the section “Power Modules”.
Dual-power input: The switch can be powered by one power module, or two power modules. When both
two modules are available, the switch is powered in current sharing mode.
When the switch is powered by the dual-power modules, if the system working power is greater
than the capacity of single power module, power redundancy cannot work; if one power module
fails, the switch system will be affected.
Heat Dissipation
The RG-S5750C-28GT4XS-H is designed with left and right fans for heat dissipation, thereby ensuring
the normal function of the device in the specified environment. Maintain a minimum clearance of 10cm
around the chassis to allow air circulation.

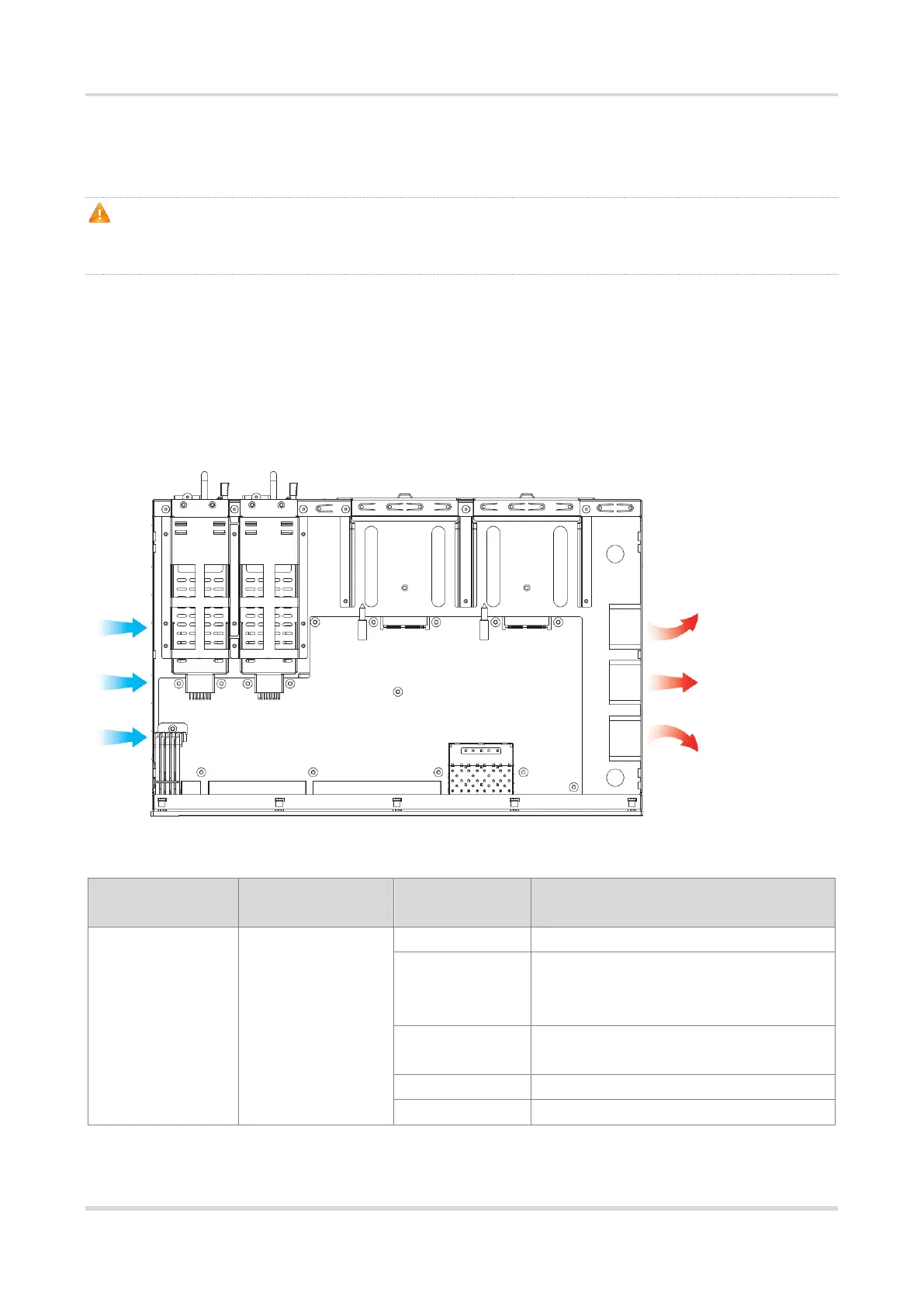

Figure 1-4 Flow Scheme of Heat Dissipation
LED
LED
Panel
Identification
State
Meaning
System status
LED
Status
Off
The switch is not receiving power.
Blinking green
(3 Hz)
The switch is being initialized with 3Hz
blinking.
Continuous blinking indicates errors.
Blinking green
(10Hz)
Supports remote on/off to locate the
switch.
Solid green
The switch is operational.
Solid yellow
Temperature alarm:
