7 SERVICE
14

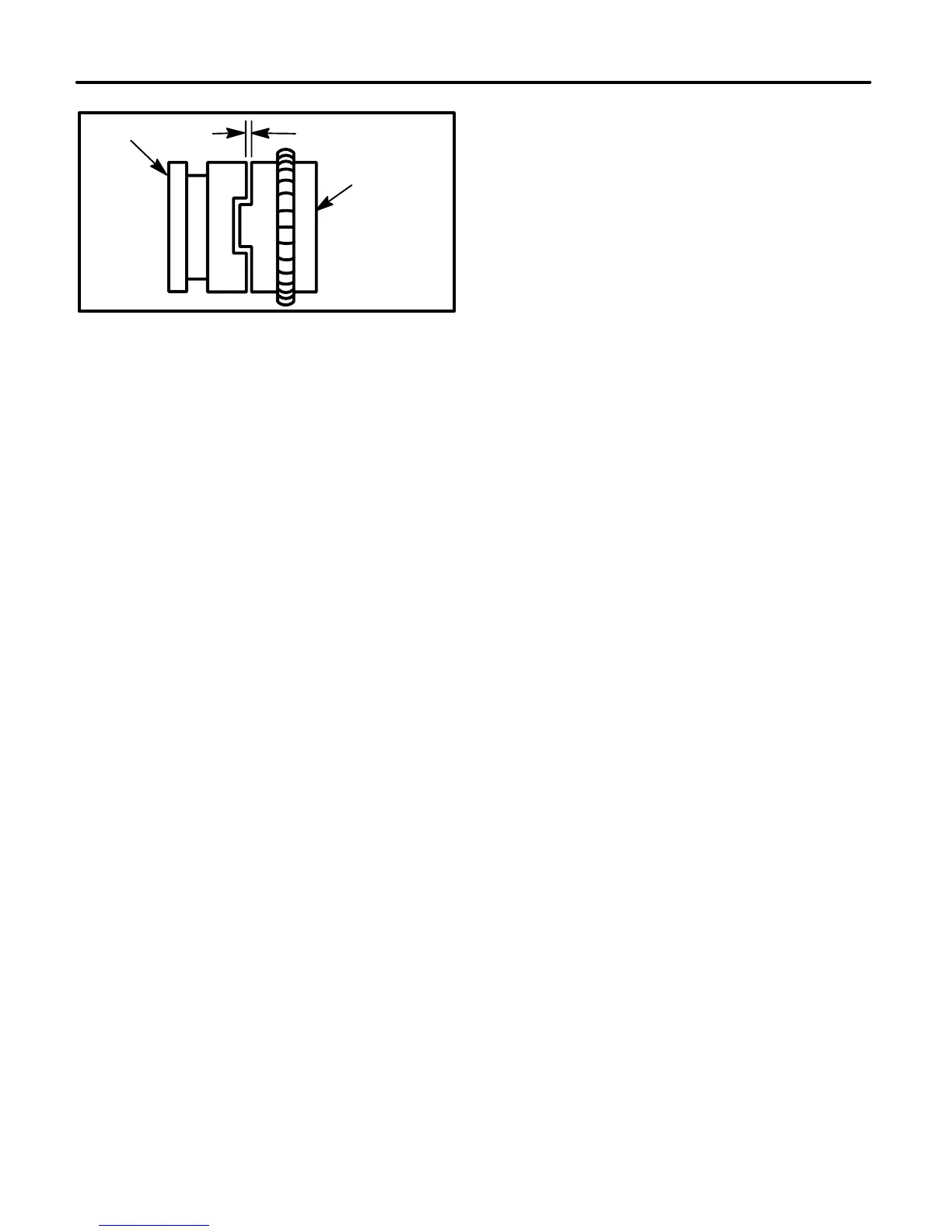

.015” (.38mm)
Sprocket
Dog Clutch
FIGURE 15
11. Adjust link (3) between aerate clutch lever and trans-
port clutch lever to maintain clearance.
12. Move Shift Control lever to “Tines Only” and check
aerate clutch for complete disengagement.
13. Set spring on connector link (1) to 3”(76mm) by
adjusting nut (6).
14. Hold or block Shift Control lever to the top of the
“Tines Only” detent hole. Move tines clutch lever (10)
so that clutch is fully engaged with a clearance of
.015”(.38mm) See FIGURE 15.
15. Set eccentric stop (7) to maintain clearance.
16. Adjust clevis (8) on connector link (1) so that clevis
pin (5) drops through hole in transport clutch lever
(9). Make sure lever (10) is held against stop (7)
while adjusting connector link (1).
17. Check for proper engagement and full disengage-
ment of all clutches as selected with Shift Control
lever.
18. Replace all shields before operating unit.
