CONTROLS 4
5

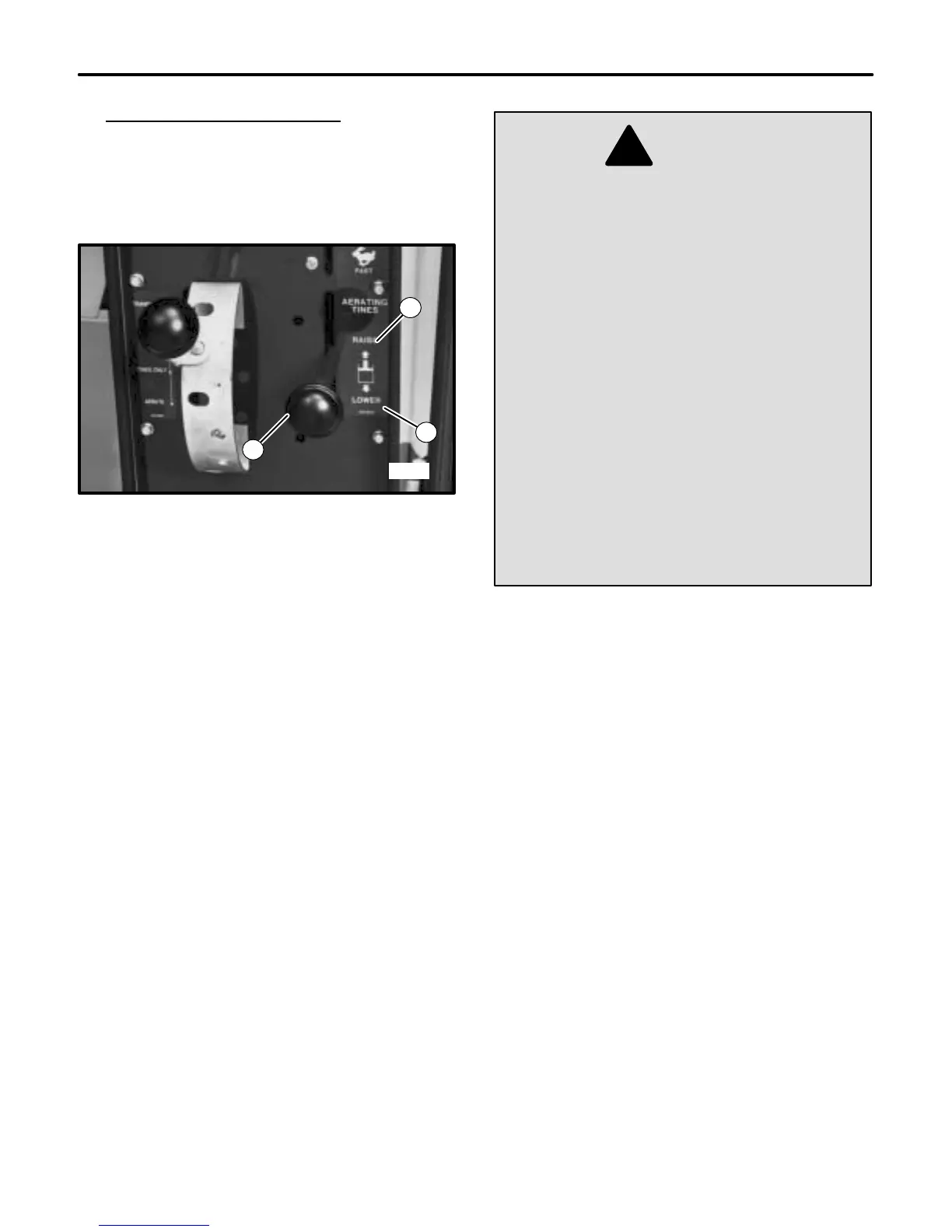

4.5 TINE LEVER
RAISE Hydraulically lifts the tines and turf guard from the
ground.
LOWER Relieves hydraulic pressure in the cylinders,
lowering the tines and turf guard to the ground.
3778
1
2
3
FIGURE 5
1. Tine Control Lever
2. Raise
3. Lower
WARNING
!
The Tine Control lever MUST return to the neu-
tral position after raising or lowering the unit. If
the lever sticks in the “Raise” or “Lower” posi-
tion, the hydraulic fluid will over heat. This
could cause a hydraulic line to rupture, releas-
ing hot hydraulic fluid.
Escaping hydraulic fluid, under pressure, can
have sufficient force to penetrate the skin,
causing serious injury.
If a leak is suspected, use a piece of wood or
cardboard, not your hand, to check for leaks.
If injured by escaping fluid, see a doctor
immediately. Serious infection or reaction can
develop if proper medical treatment is not
promptly administered.
Do not use a unit with a leaking hydraulic sys-
tem. See your authorized RYAN dealer for nec-
essary repairs.
To Next Page
