4 CONTROLS
4

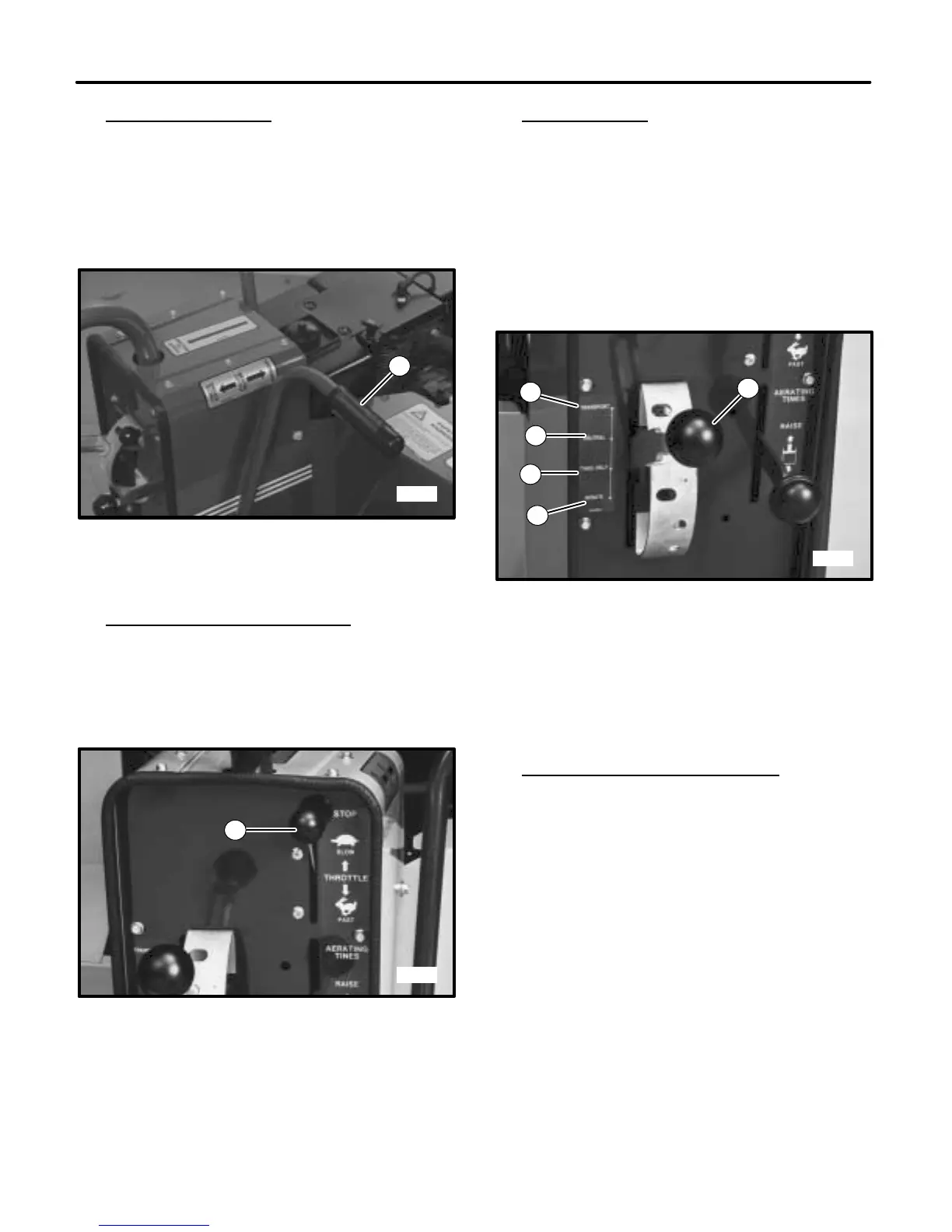

4.1 MASTER CYLINDER
The Master Clutch, located on the side of the control
panel, engages and releases power to all functions
except the hydraulic pump. Pull lever forward, slowly, to
engage the master clutch. Push the lever back to
release.
3777
1
FIGURE 2
1. Master Clutch Lever (engaged)
4.2 THROTTLE
STOP This position grounds the engine ignition system
and shuts the engine off.
SLOW – FAST Moving the throttle between these posi-
tions will adjust engine to desired speed.
3778
1
FIGURE 3
1. Throttle Control Lever
4.3 SHIFT CONTROL LEVER
TRANSPORT Provides forward movement without tine
operation. Tines must be in raised position.
NEUTRAL Disengages all clutches. Unit will not move,
tines will not operate.
TINES Operates tines only, unit will not move. Use only
to check alignment and positioning of turf guard.
AERATE Provides forward movement and tine opera-
tion. Normal position for aerating.
3779
1
2
3
4
5
FIGURE 4
1. Shift Control Lever
2. Transport
3. Neutral
4. Tines
5. Aerate
4.4 SHIFTING
1. Disengage Master Clutch.
2. Set engine speed to slow.
3. Move Shift Control lever to desired position. (DO
NOT force control lever, engage clutch lightly until
control linkage engages.)
4. Stand to side of unit, not in front, – engage Master
Clutch slowly.
(Forward motion is in direction of the handle)
5. Adjust engine speed for desired transport or operat-
ing speed after unit is in motion.
