User Manual Laser Diode Controller PilotPC 13

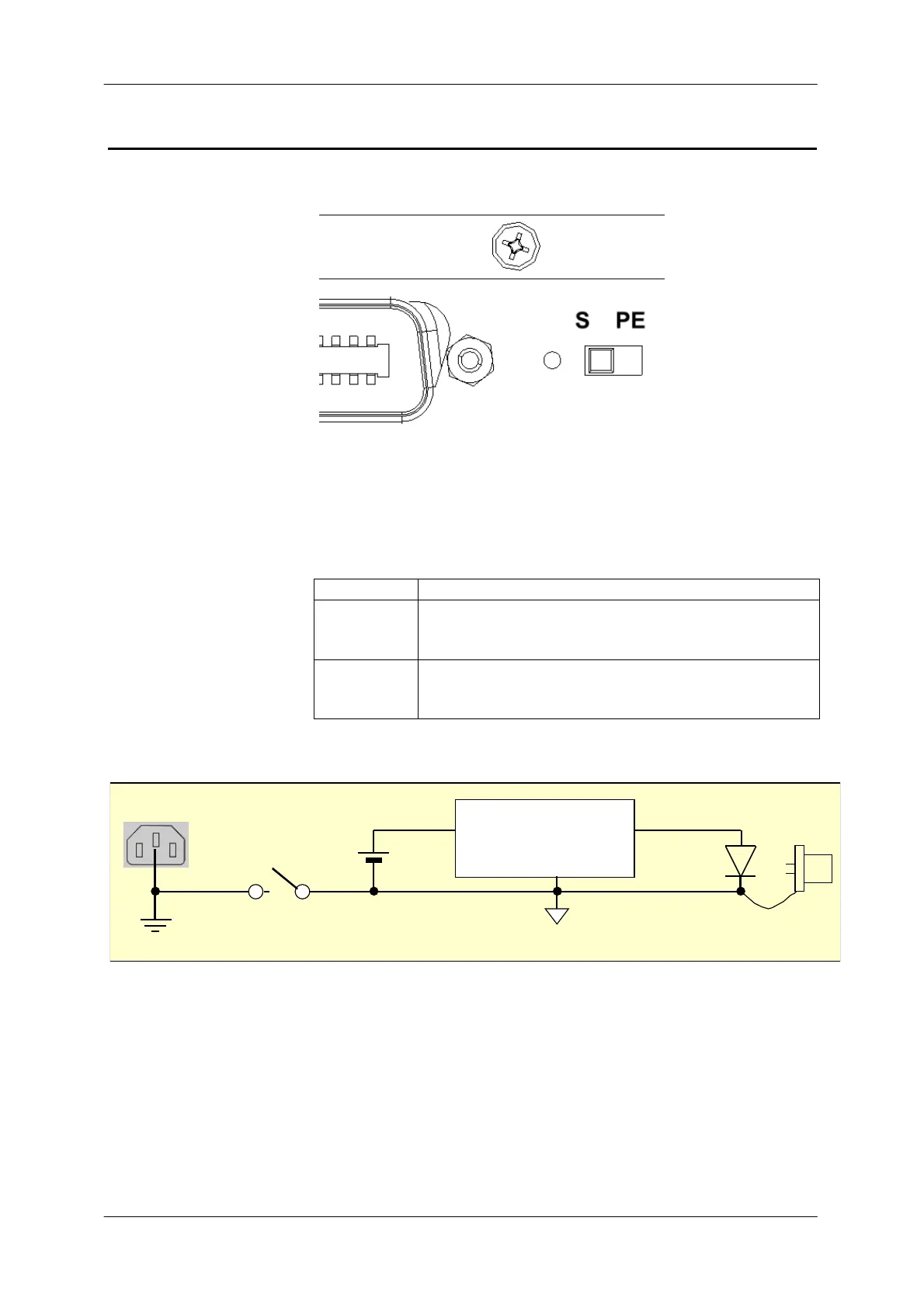

PE Switch
The PE switch is used to improve the noise behavior of the laserdiode
current source. In some cases, especially when external measurement
equipment is connected to the laserhead or the laserdriver, line
frequency noise comes up.
Sometimes it helps to open the PE Switch.
Switch Pos.
S Electronic Ground of the Laserdiodedriver
are connected to PE (Protective Earth) with high
resistance
PE Electronic Ground of the Laserdiodedriver
are connected to PE (Protective Earth) with low
resistance
PilotPC
Laserdiode
Current Source
PE Switch
IEC Line Connector
