User Manual Laser Diode Controller PilotPC 45
Appendix
Connector Schematics
Laser Connectors

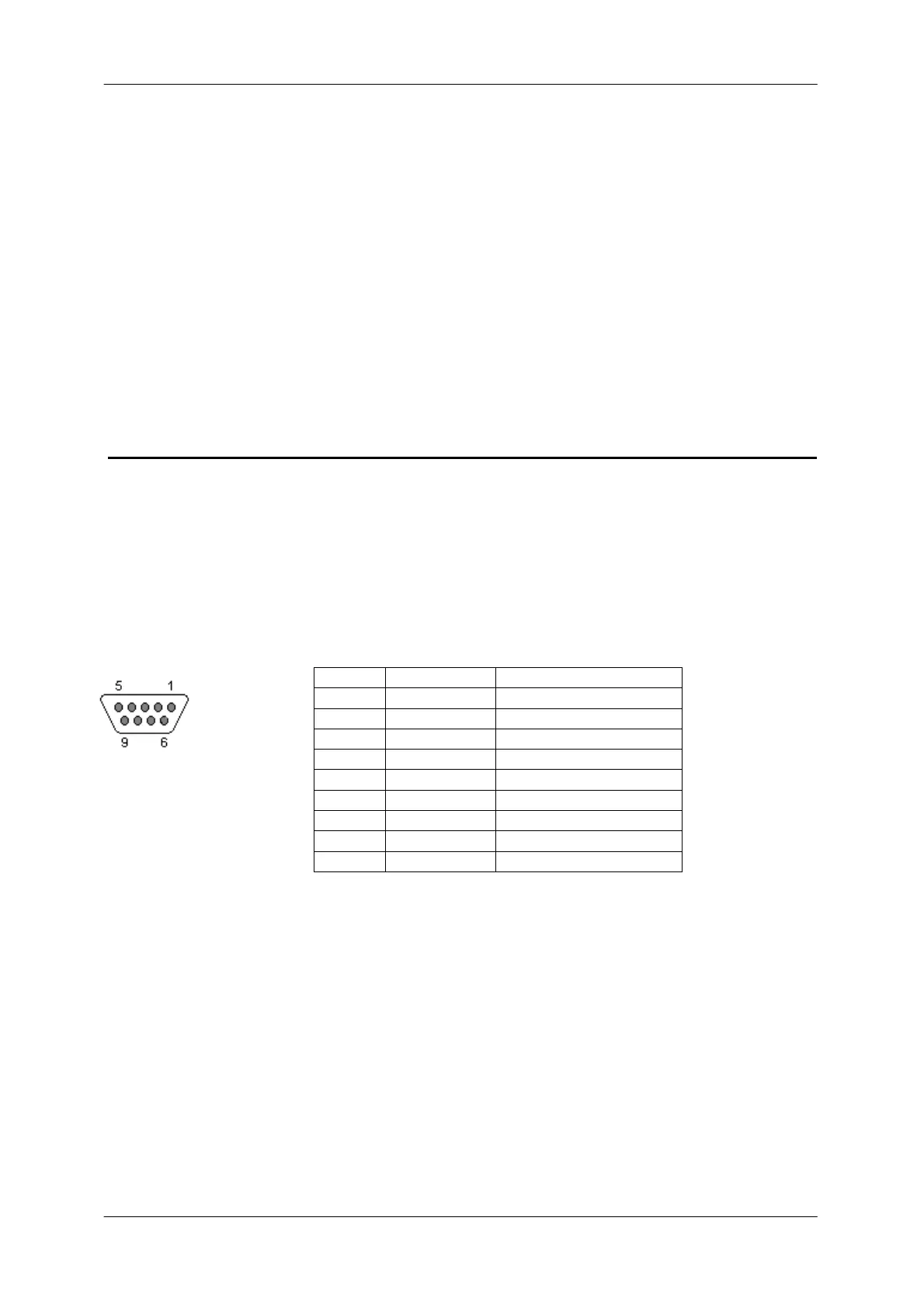

Laser Supply Cable to Laser Head (LD OUTPUT)
Standard Sub-D9 FEMALE 1:1 connection rated for 5A.
This connection is required.
Pin Nr. Signal Name Description
1 Interlock
2 PD- Photodiode Signal Minus
3 LD GND Laser Diode Ground
4 PD+ Photodiode Signal Plus
5 Interlock
6 REL+ Safety Relay Plus
7 LD-
8 LD+ Laser Diode Plus
9 GND
