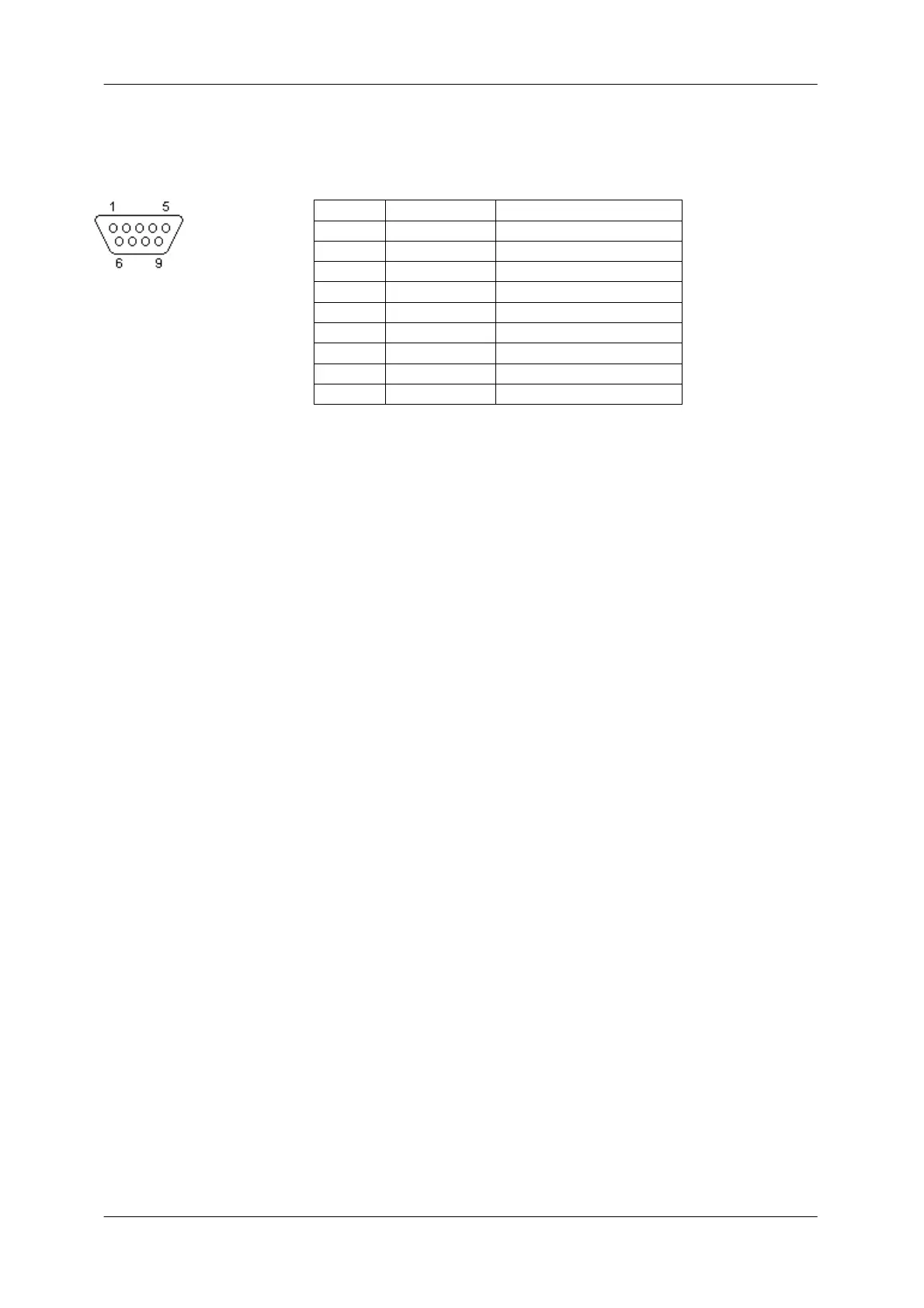

TEC Supply Cable to Laser Head (TEC OUTPUT)
Standard Sub-D9 MALE 1:1 connection rated for 5A. This connection
is usually required, but optional if temperature control is not needed.
Pin Nr. Signal Name Description
1 MGND
2 AD590+ Temperature Sensor
3 AD590- Temperature Sensor
4
5
6 NTC Temperature Sensor
7 TEC-GND
8 TEC-OUT Peltier Output
9 NTC Temperature Sensor
