User Manual Laser Diode Controller PilotPC 47

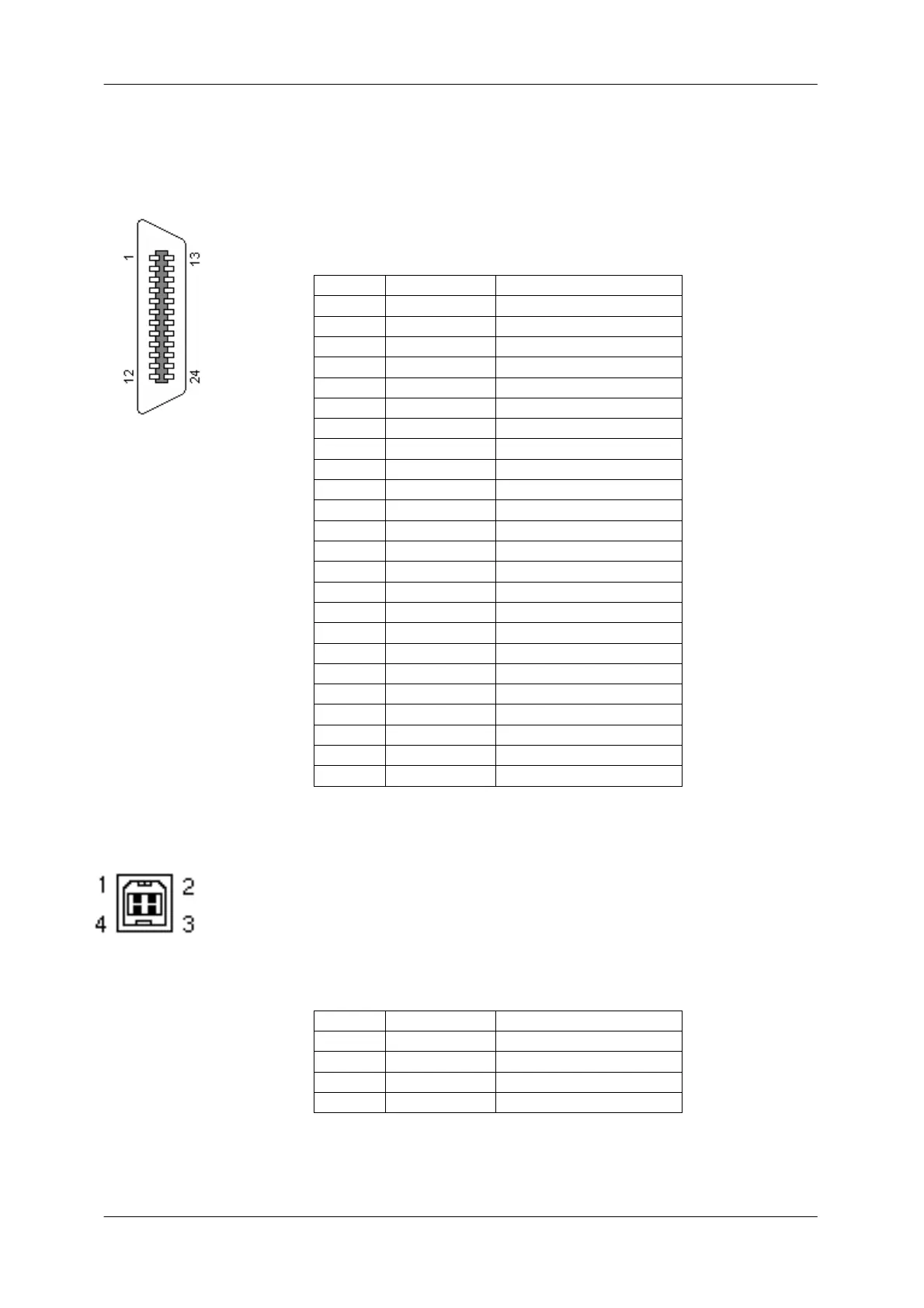

IEEE488 (GPIB) Connector
GPIB Remote Interface Connector
Standard Centronics 24pol FEMALE connection
This connection is only used for Remote Control
Pin Nr. Signal Name Description
1 DIO1 Data input /output
2 DIO2 Data input /output
3 DIO3 Data input /output
4 DIO4 Data input /output
5 EOI End or identify
6 DAV Data valid
7 NRFD Not ready for data
8 NDAC Not data accepted
9 IFC Interface clear
10 SRQ Service reqest
11 ATN Attention
12 SHIELD
13 DIO5 Data input /output
14 DIO6 Data input /output
15 DIO7 Data input /output
16 DIO8 Data input /output
17 REN
18 Shield
19 Shield
20 Shield
21 Shield
22 Shield
23 Shield
24 GND
USB Connector
USB Remote Interface Connector
Standard USB Type B connection
This connection is only used for Remote Control
Pin Nr. Signal Name Description
1 n.c.
2 USBDM Data Plus
3 USBDP Data Minus
4 GND Ground
