User Manual Laser Diode Controller PilotPC 48

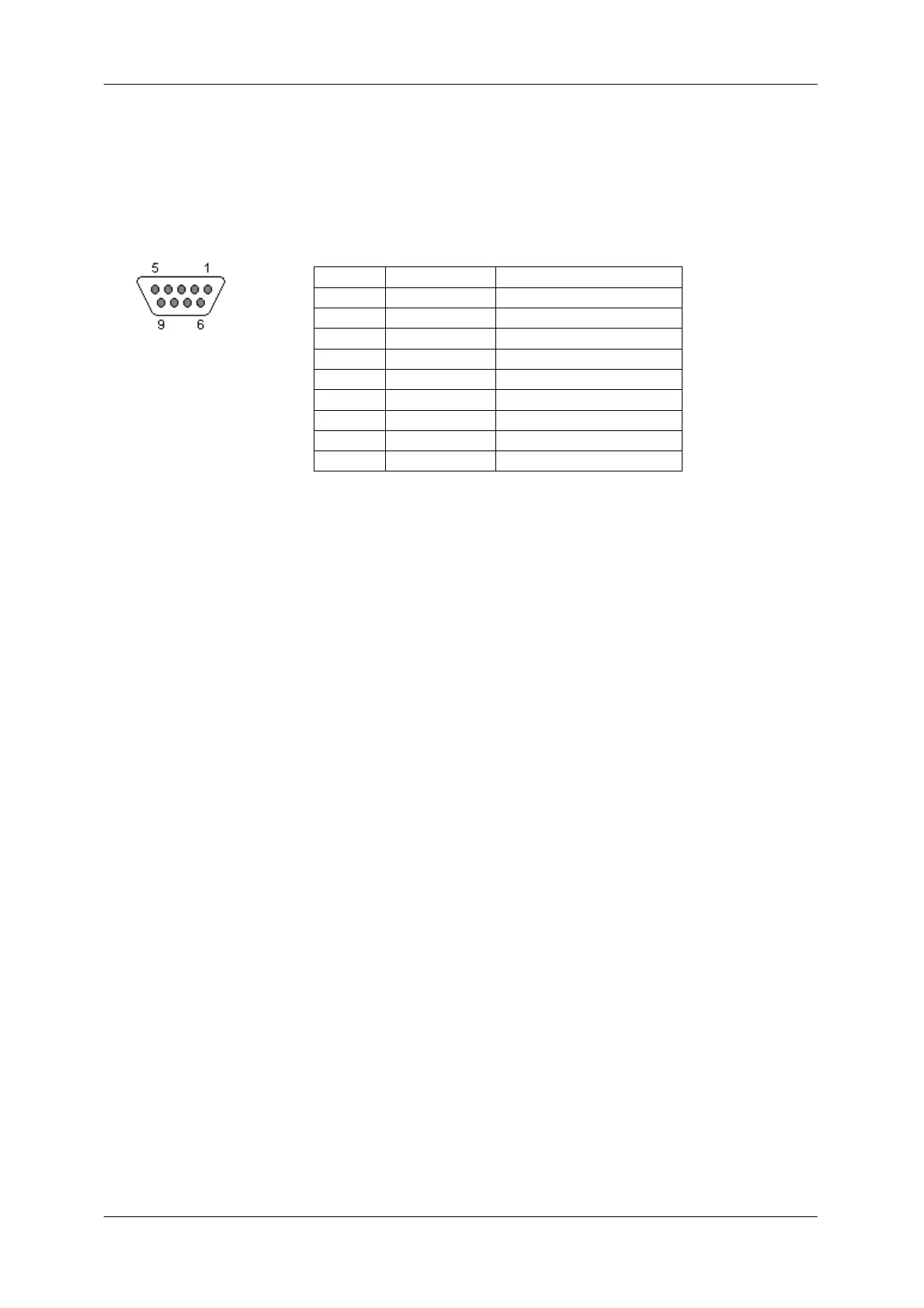

RS232 Connector
RS232 Remote Interface Connector
Standard Sub-D9 FEMALE connector.
This connection is only used for Remote Control.
Use a 1to1 cable for connection with a standard personal computer.
Pin Nr. Signal Name Description
1
2 TxD Output
3 RxD Input
4
5 GND
6
7
8
9
