User Manual Laser Diode Controller PilotPC 17

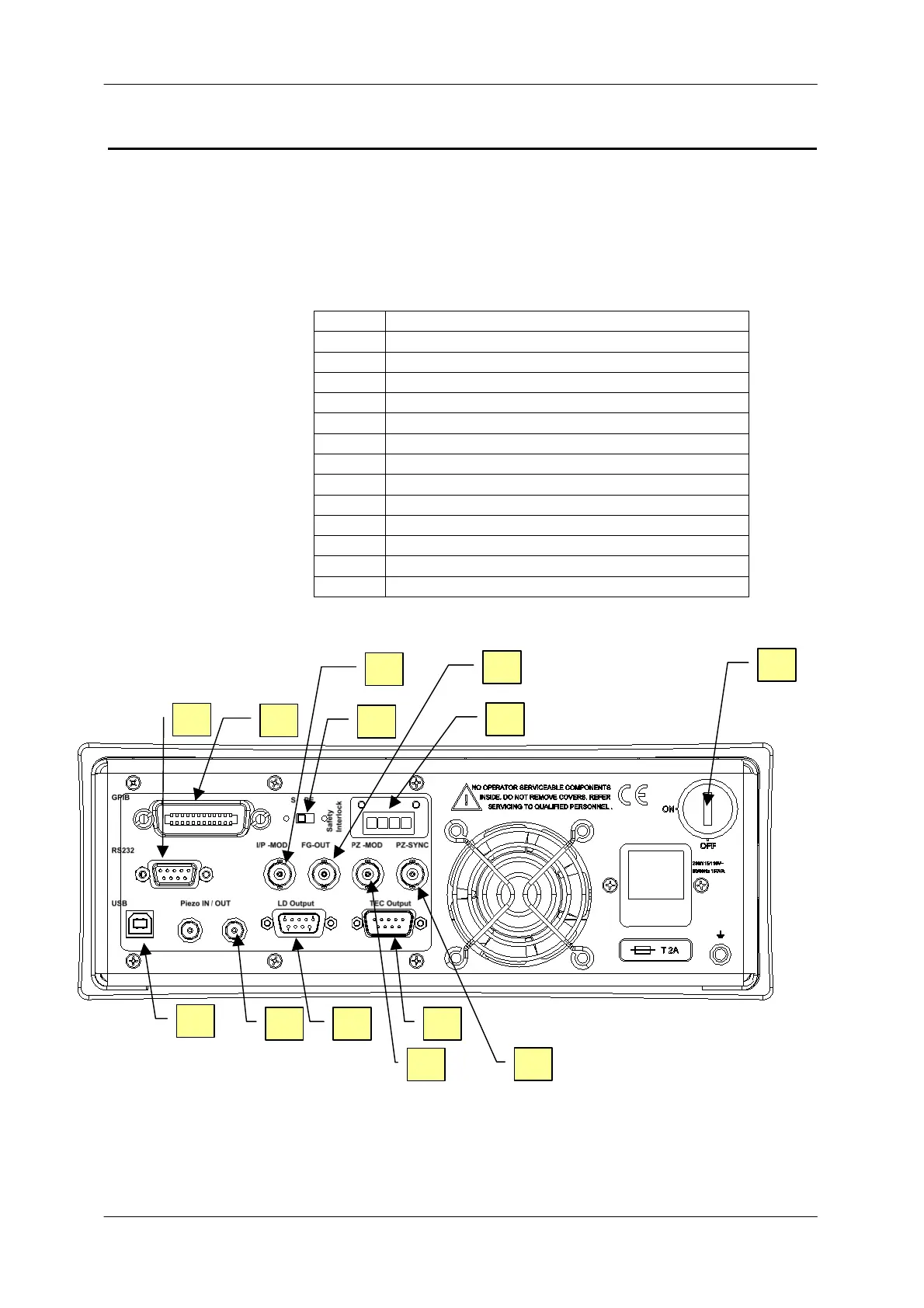

Rear Panel Piezo Option
This section shows the rear panel elements.
On this side you find all connectors.
List of Rear Panel elements
Element Description
1 RS232 Interface Connector
2 GBIB Interface Connector
3 PE Switch
4 Safety Interlock Connector
5 Key Switch
6 USB Interface Connector
7 Piezo Input/Output Connector
8 Laser Connector
9 TEC Connector
A Current/Power Signal Monitor Output
B Frequency Gen.-Output Signal “External Mode”
C Piezo Modulation Input
D Piezo Sync Signal Output
2
3
4
1
5
9
6
7
8
A
B
C
D
