Labeling
Each device has 2 identical labels: 1) on the front and 2) on the back of the device casing (
Figure
1-1
).

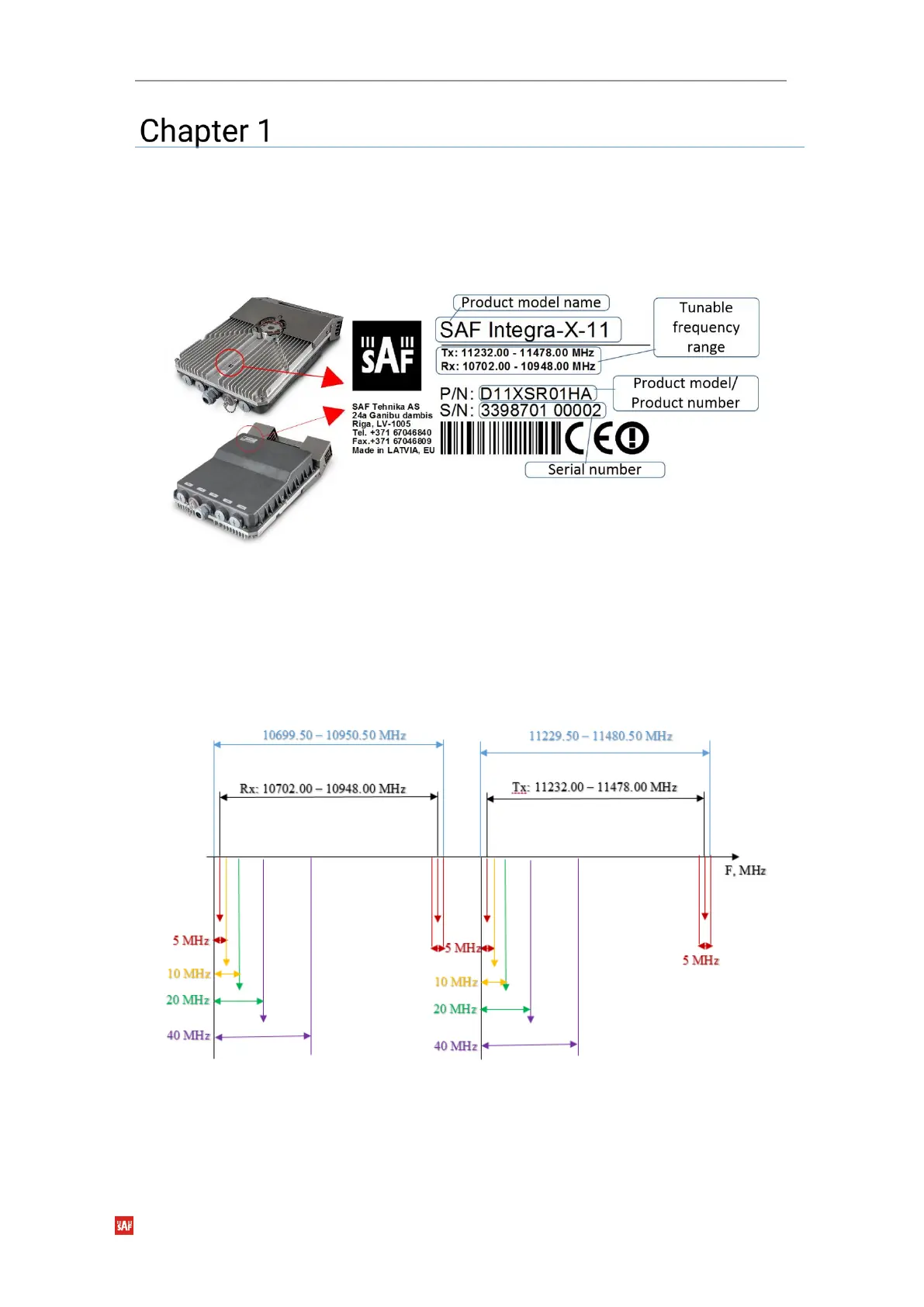

The label contains the following information - see a sample in
Figure 1-1 Integra-X labels
.
Figure 1-1 Integra-X labels
Product model name - “SAF Integra-X-11”. Number in the end indicates frequency band
supported by the device, in the example above it is 11 GHz.
The tunable frequency range of the particular unit. An example below shows available central
frequency range for 5 MHz channel bandwidth (
Figure 1-2
).
Integra-X label (
Figure 1-1
) indicates tunable Tx/Rx frequency range for 5MHz bandwidth, note
that frequency range is set from the central frequency of the first 5 MHz channel to the central
frequency of the last 5 MHz channel.
Figure 1-2 The central frequency range for 5MHz bandwidth for 11GHz high
side radio.
