SAJ H2 Series Instruction Manual

HYBRID SOLAR INVERTER INSTRUCTION MANUAL
4.6
Batte
Connection
1. Connection Po
2. Feed the positive and negative cables into corresponding lock screws and crimp them tightly
with a wire crimper. Make sure that the withdrawal force of the pressed cable is larger than
400N.
3. Plug in the pressed positive and negative cables into relevant insulated enclosure, a “click”
sound should be heard when the contact cable assembly is seated correctly.
4. Fasten the lock screws on positive and negative connectors into corresponding insulated
enclosure and make them tight.
5. Connect the positive and negative connectors into positive and negative DC input terminals
of the inveer, a “click” sound should be heard when the contact cable assembly is seated cor -
rectly.

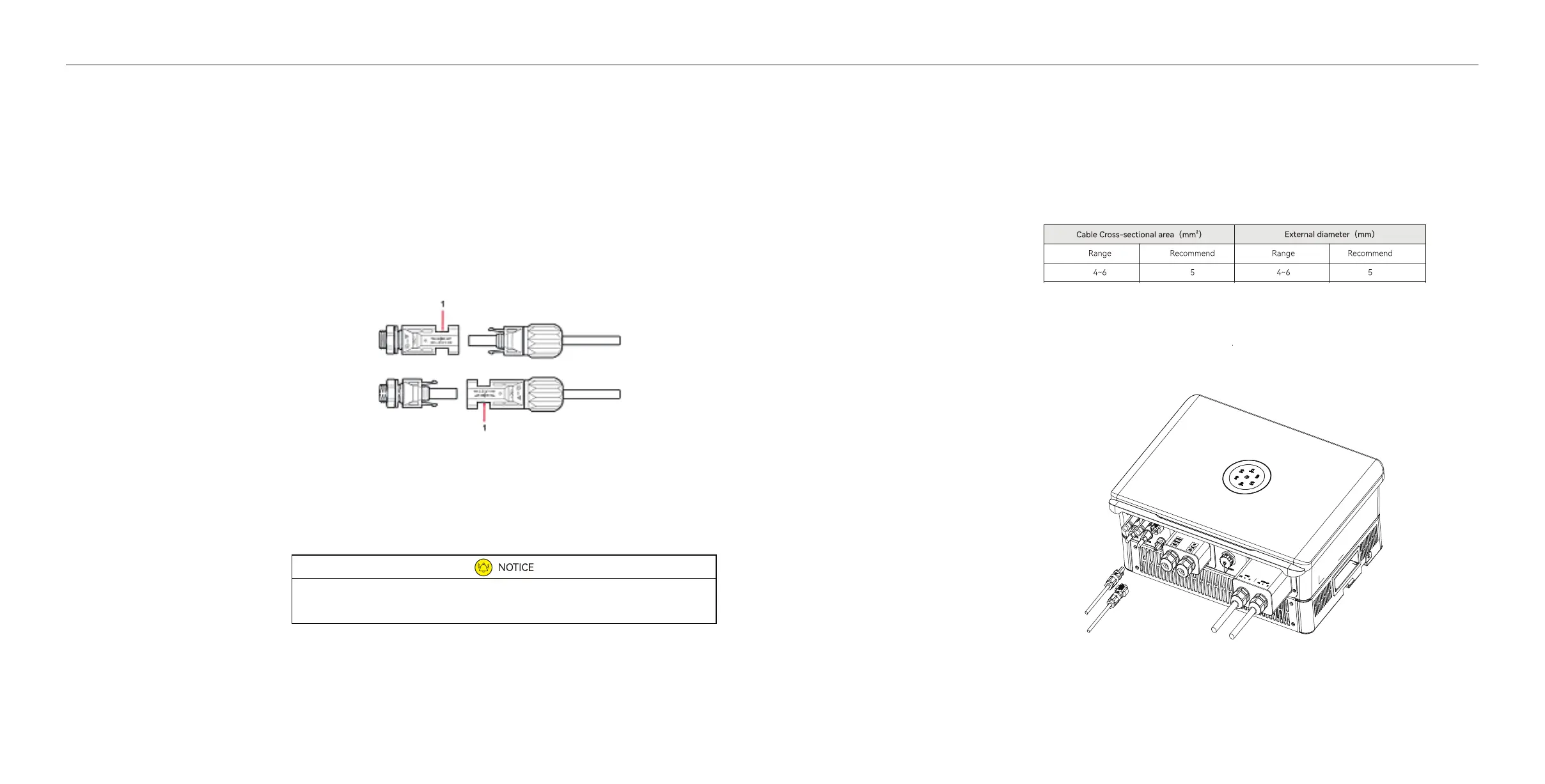

Figure4.9
Connect to the Inveer
Table 4.4
Recommended
Specications of DC Cables
Figure 4.10
Open the waterproof cover
If lithium batte is connected, it is not required to install a breaker be -
tween batte and inveer.
Procedure：
1.Open the waterproof cover, then feed the batte cable through the AC waterproof
hole.
· Before inse the connector into DC input terminal of the inveer, please make sure that the DC switch of the inveer is OFF.
·Please use the original H4 terminal to install.
22
21
