Sam4s ER-380F - Power Switch PCB Layout

10 PCB Layout and Parts List
SAM4S ER-380M/F SERIES 10-7

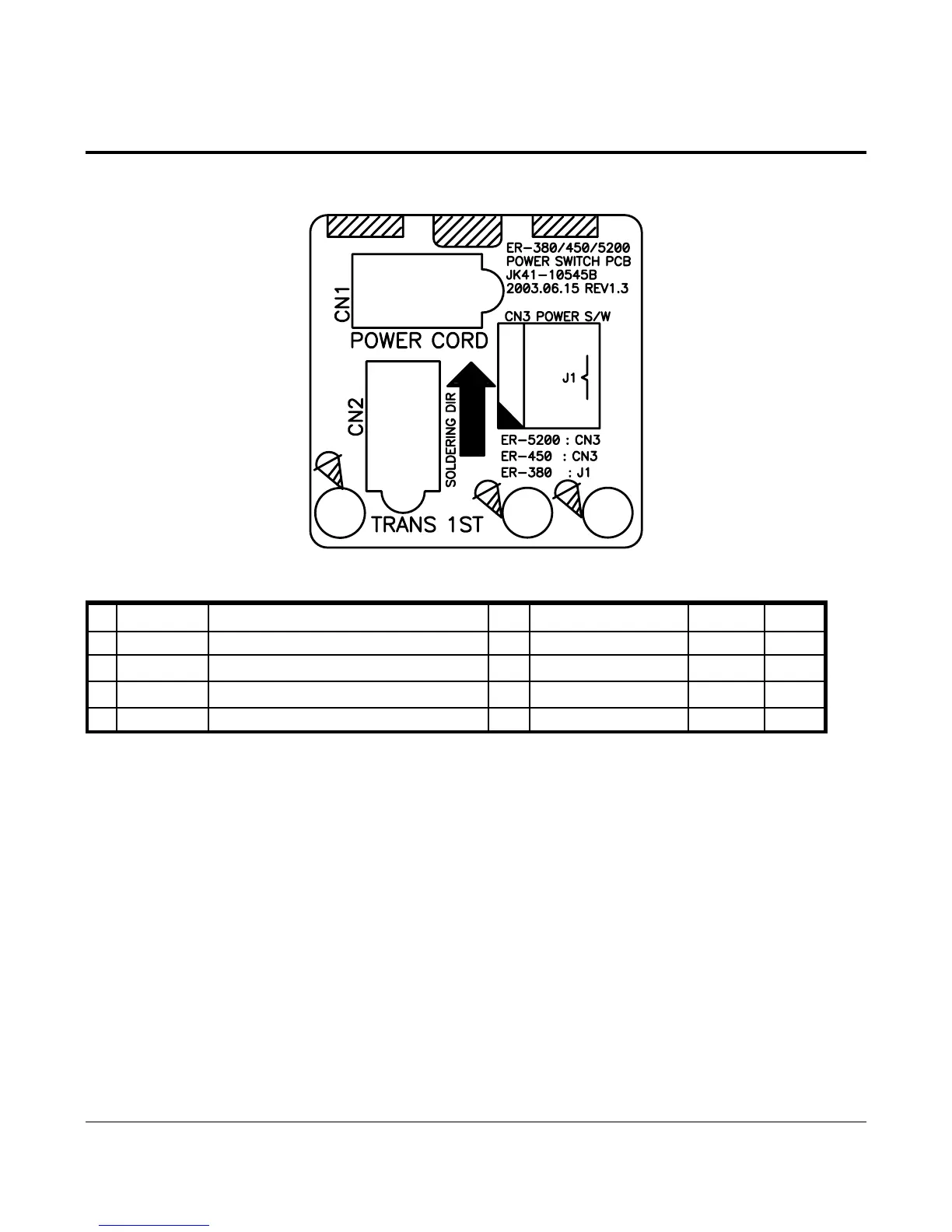

10-3 Power Switch PCB Layout
10-3-1 Component Side View
10-3-2 Parts List
No Part-No Description / Specification Q’TY Design Location
Serviceabl
e
Remark
s
- JK92-01227B PBA SUB-POWER SW:ER-5200/5500,STD 1 ASSY
Y
- 3711-000190
CONNECTOR-
HEADER:1WALL,2P,1R,7.92mm,STRA
1 CN3 Y
- 3711-000829
CONNECTOR-
HEADER:BOX,2P,1R,6.2mm,STRAIGH
2 CN1, CN2 Y
- JK41-10545B PCB-POWER SWITCH:ER-52/5500,FR-1,1L,T1.6 1 Y
