Sam4s ER-380F - Parts List

9 Exploded Views and Parts List
SAM4S ER-380M/F SERIES 9-3
9-1 Main Set
9-1-2 Parts List
B-18
B-
8
B-
9
B-11
B-12
B-14
B-15
B-16
B-17
B-13
B-1
0
B-2
B-3
B-4
B-5
B-7
B-6
e
B-1
d
r
< ER-380M > < ER-380F >

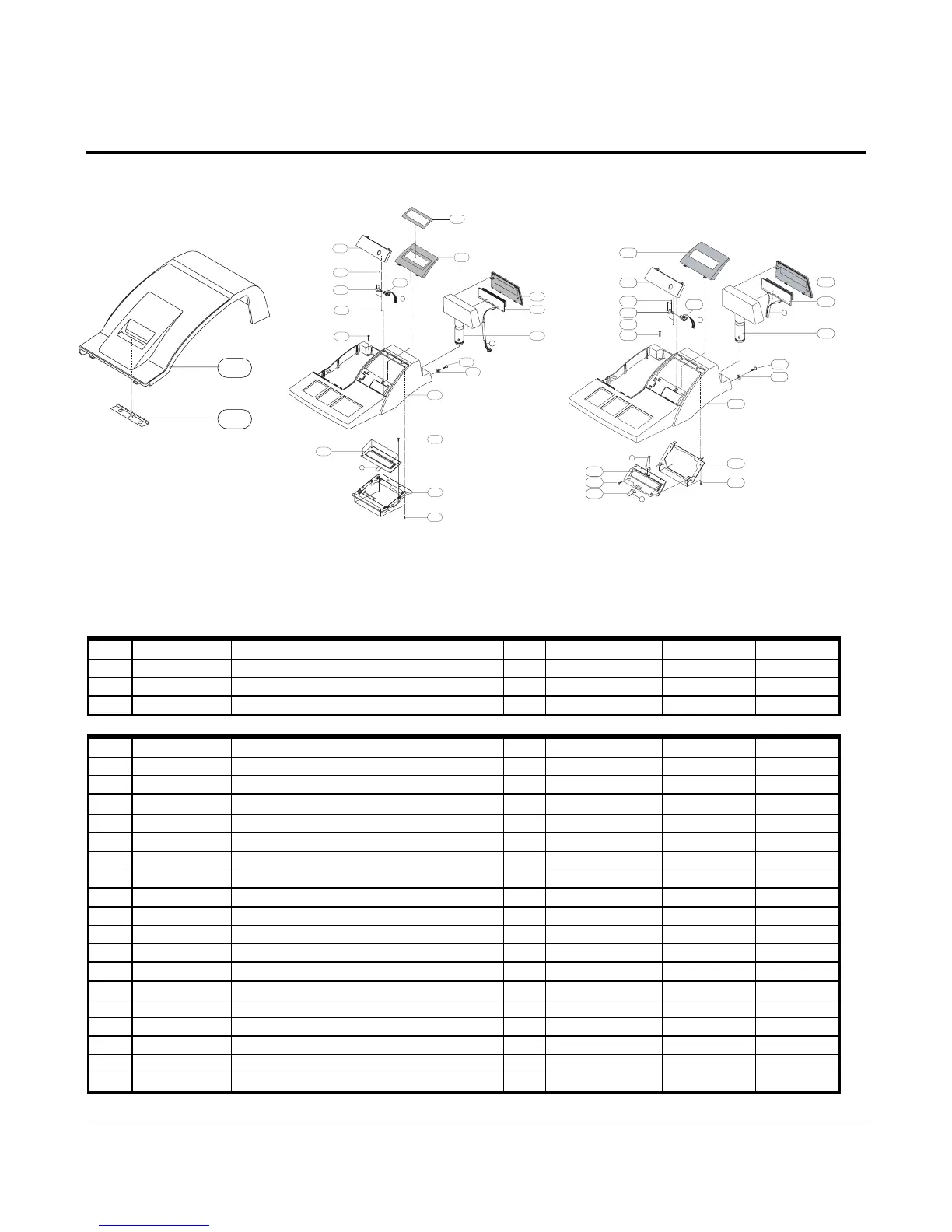

Figure9-3 Cover Printer Assembly Figure9-4 Case Upper Assembly
9-1-2-(a) Cover Print Assembly
No. Parts No. Description / Specification Q`ty Design-Location Serviceable Remark
A JK97-20009A MEA-COVER PRINTER: ER-380,STD 1 Y
A-1 JK72-20062A PMO-COVER PRINTER: HIPS(V0),IVORY 1 N
SAM4S
A-2 JK70-10320A IPR-CUTTER PAPER: STS304,T0.3 1 N
9-1-2-(b) Case Upper Assembly (ER-380M)
No. Parts No. Description / Specification Q`ty Design-Location Serviceable Remark
B JK94-01126A PRA ETC-CASE-UPPER: ER-380M,STD 1 Y
B-1 JK72-20091A
PMO-WINDOW LCD: ER-380M,ACRYL,T1.2
1 Y
B-2 JK72-40207K
PMO-COVER MODE S/W: ER-380M,HIPS,IVR,V0
1 Y
ER-380M
B-3 6002-000319 SCREW-TAPPING: PH,+,2,M3,L8,ZPC(YEL) 2 Y
B-4 JK70-10004A IPR-BRKT MODE_S/W: SBHG-1,T1 1 Y
B-5 6002-000319 SCREW-TAPPING: PH,+,2,M3,L8,ZPC(YEL) 2 Y
B-6 6002-000172 SCREW-TAPPING: PH,+,2S,M4,L15 1 Y
B-7 JK96-10044A MODE KEY ASSY:ER-380,NO CORE,YH 1 Y
B-8 JK72-40209B PMO-WINDOW TURRET: PC 1 Y
B-9 JK92-00970B PBA SUB-TURRET:ER-450,WORLD,BASIC 1 Y
B-10 JK72-00015A PMO-TURRET BODY: HIPS(V0) 1 Y
B-11 6001-000367 SCREW-MACHINE: FH,+,M4,L10 1 Y
B-13 JK72-00012A PMO-CASE UPPER: ER-380,STD 1 Y
B-14 JK72-20110A
PMO-HOLDER DISPLAY:ER-380M,HIPS,V0,IVR
1 Y
B-15 6002-000175
SCREW-TAPPING: PWH,+,2,M3,L8,ZPC(YEL)
4 Y
B-16 JK07-00007A
LCD:16CHAR*2LINE,EDM1602-22,ER-5200M
1 Y
B-17 6002-000175
SCREW-TAPPING: PWH,+,2,M3,L8,ZPC(YEL)
4 Y
B-18 JK39-40630A HARNESS-LCD:ER-380M 1 Y
A-1
A-2
B-1
B-
8
B-
9
B-11
B-12
B-14
B-15
B-16
B-17
B-18
B-13
B-1
0
B-2
B-3
B-4
B-5
B-7
B-6
e
v
v
d
