Sam4s ER-380F - Interface Layout

10 PCB Layout and Parts List
SAM4S ER-380M/F SERIES 10-11
10-5 Fiscal Layout
10-5-2 Parts List
10-5-2-(c) Parts List (Memory Size = 2MBITs)
No Part-No Description / Specification Q’TY Design Location
Serviceabl
e
Remark
s
JK92-00132C PBA SUB-FISCAL B/D;2MBITs 1 2MBITs ASSY
Y
1102-000136 IC-EPROM:27C020,256Kx8BIT,DIP,32P,600MI 1 U1
Y
0403-000141 DIODE-ZENER:1N4735A,6.2V,5%,1W,DO-41,TP 1 ZD1
Y
JK39-40305B CBF HARNESS:,-,UL 1007,120,WHT/BLU/RED,2 1 CN1
Y
JK94-00055A PHANTOM AU JK92-00132B 1 N
2007-000029 R-CHIP:0OHM,5%,1/10W,DA,TP,2012 1 R3 Y
2007-000030 R-CHIP:560OHM,5%,1/10W,DA,TP,2012 1 R2 Y
2007-000221 R-CHIP:1.2KOHM,5%,1/10W,DA,TP,2012 1 R4 Y
R1,R5,R6,R7,R8,R9,R10,
2007-000872 R-CHIP:4.7KOHM,5%,1/10W,DA,TP,2012 10
R11,R12,R13
Y
2203-000192 C-CERAMIC,CHIP:100nF,+80-20%,50V,Y5V,TP, 1 C2 Y
0404-001051 DIODE-SCHOTTKY:SK14,40V,1000MA,DO-214AA, 2 D1,D2 Y
0501-000457 TR-SMALL SIGNAL:MMBT2222A,NPN,350MW,SOT- 1 Q1 Y
JK41-10531B PCB-FISCAL:ER-5240F,FR-4,2L,T1.6mm,348X5 1 Y

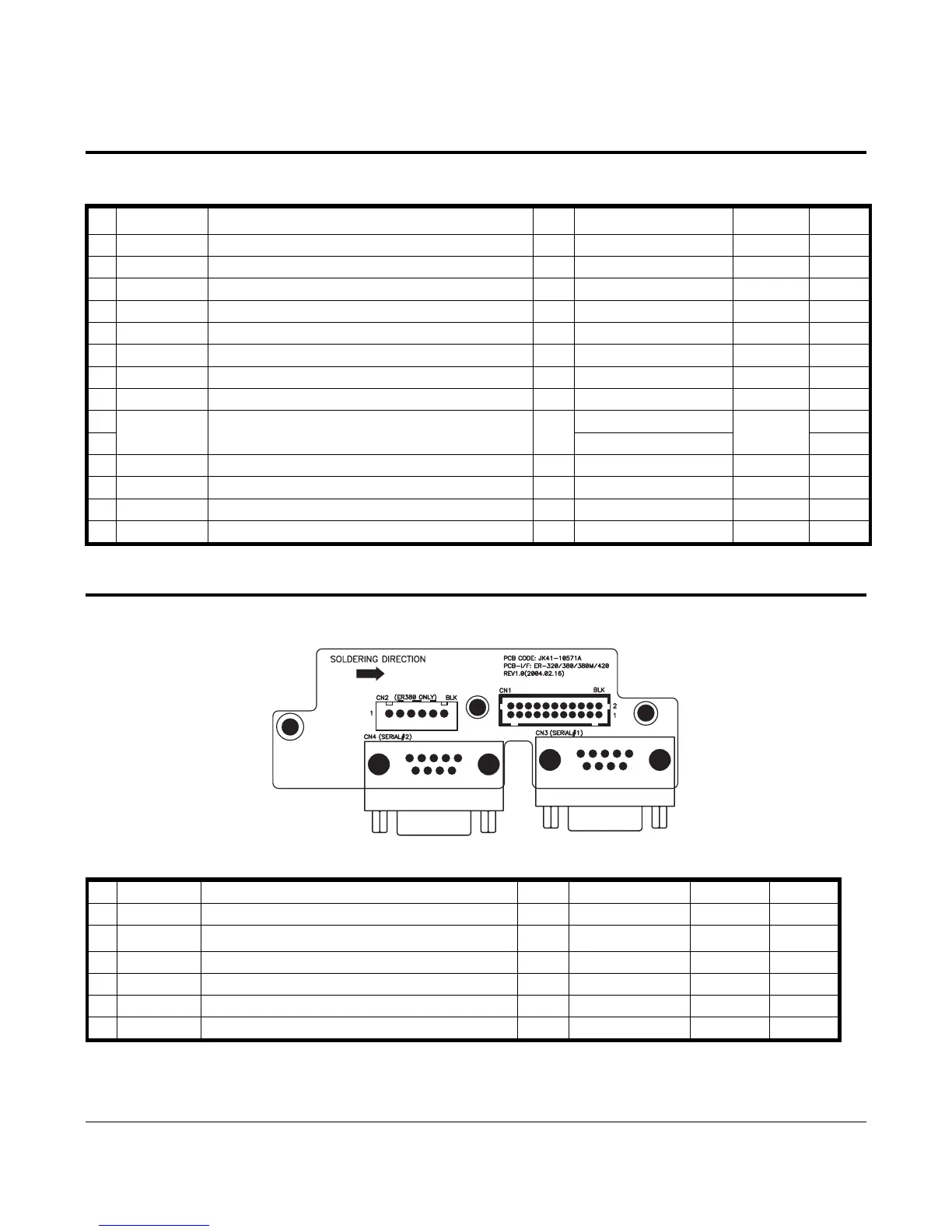

10-6 Interface Layout
10-6-1 Exploded View
10-6-2 Parts List
No Part-No Description / Specification Q’TY Design Location Serviceable Remarks
- JK92-01280A PBA SUB-I/F:ER-380/M,232*2 1
- 3711-004108 WAFER;BOX-HEADER,1R,6P,2.5mm,STRAIGHT 1 CN2
ONLY
ER-380
- 3711-002002 CONNECTOR-HEADER:-,22P,2R,2mm,STRAIGHT,S 1 CN1
- 3701-000232 CONNECTOR-DSUB:9P,2R,FEMALE,ANGLE,AUF 1 CN3
- 3701-000232 CONNECTOR-DSUB:9P,2R,FEMALE,ANGLE,AUF 1 CN4
- JK41-10571A PCB-I/F:ER-380/M,232*2,FR-4,2L,T1.6mm 1
