10 PCB Layout and Parts List
10-8 SAM4S ER-380M/F SERIES
10-4 Display Layout

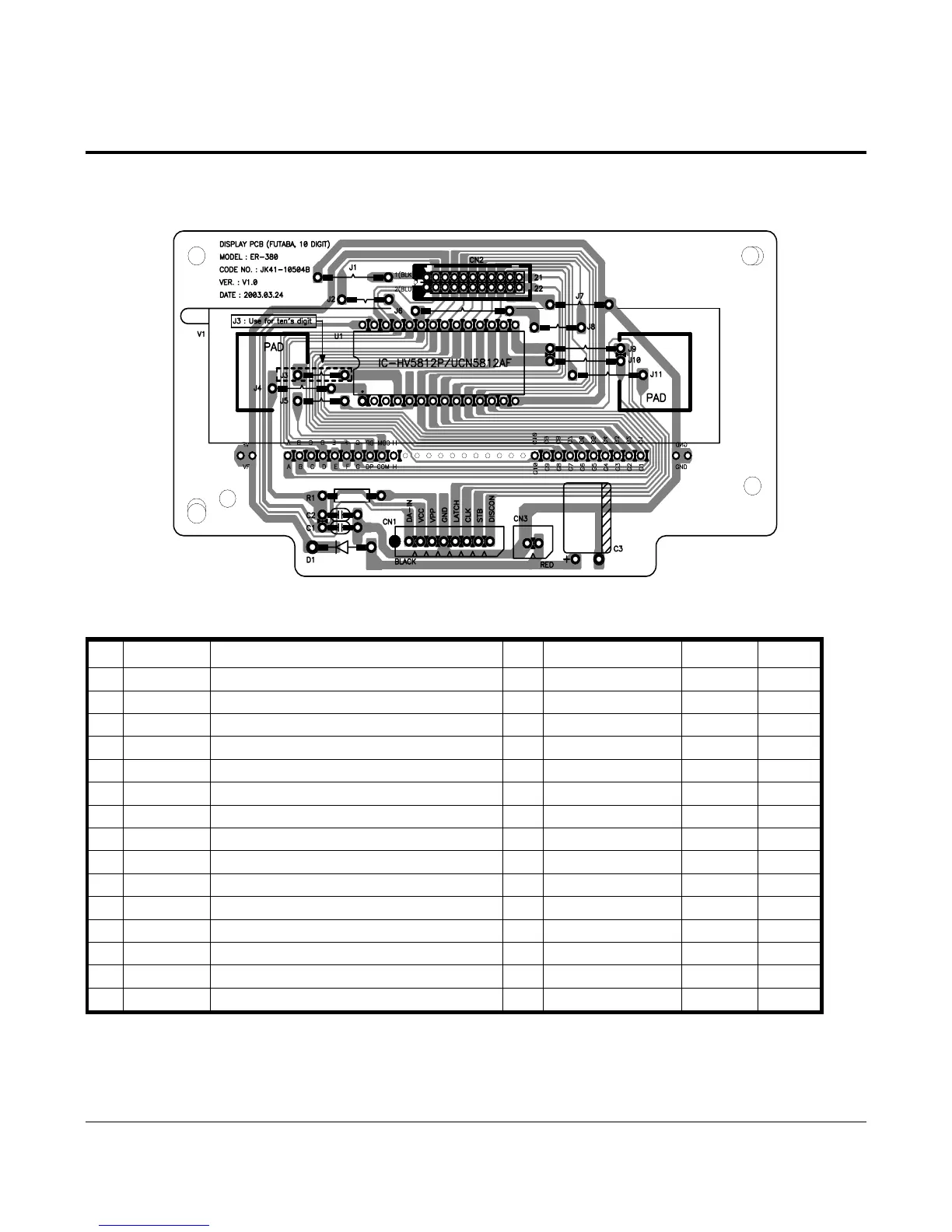

10-4-1 ER-380F Front Display (VFD 10Digit)
10-6-1-(a) Component Side View
10-4-1-(b) Parts List (Front Display)
No Part-No Description / Specification Q’TY Design Location
Serviceabl
e
Remarks
3711-004111 WAFER;BOX-HEADER,1R,8P,2.5mm,ANGLE 1 CN1 Y
3711-002002 CONNECTOR-HEADER:-,22P,2R,2mm,STRAIGHT,S 1 CN2 Y
JK07-00005A DISPLAY VFD-DC10G:FUTABA,10-LT-50GK 1 V1 Y
JK39-00034A CONNECT WIRE-350 DISPLAY:ER-350,FLAT,UL1 1 8P Y
JK73-10207A RPR-PAD:ER-220N,SPONGE,-,BLK,- 2 T5.0 Y
1003-001381 IC-VFD:HV5812P,DIP,28P,540MIL,-,-,ST,PLA 1 U1 Y
JK69-90902A PACKING-VINYL:PET,#2126,30X100000XT0.05, 1 DIGITRON Y
0402-000208 DIODE-RECTIFIER:EK-04,40V,1.5A,DO-41 1 D2 Y
JK94-01120A PHANTOM AU JK92-01240A 1 N
0402-000129 DIODE-RECTIFIER:1N4003,200V,1A,DO-41,TP 1 D1 Y
JC39-40511A CBF HARNESS:ML-80,JUMPER,AWG22,52mm,SILV 5 J1,J2,J3,J4,J5 Y
JC39-40511A CBF HARNESS:ML-80,JUMPER,AWG22,52mm,SILV 5 J6,J7,J8,J9,J10 Y
JC39-40511A CBF HARNESS:ML-80,JUMPER,AWG22,52mm,SILV 5 J11,J12,J13,J14,J15 Y
JC39-40511A CBF HARNESS:ML-80,JUMPER,AWG22,52mm,SILV 5 J16,J17,J18,J19,J20 Y
JK41-10005B PCB-DISPLAY(10G):ER-350/F,FR-1,1L,T1.6,F 1 Y
To Next Page
