Use the PC Utility to Convert the Image
1. Install the ER-900 PC Utility on your PC.
2. At your PC, start the ER-900 PC Utility. (Select Start, Programs, SHC PC
UTILITY, ER-900 PC UTILITY.) The Store Setting dialog box displays.
3. If you are starting the ER-900 PC Utility for the first time, you must define a
store name or if a store is already defined, you can select the store from the
drop down list. After the store is defined or selected, click Close. The PC
Utility program starts.
4. Move the .bmp logos you wish to use into the store directory
(i.e. C:\ER-900PC\storename.)

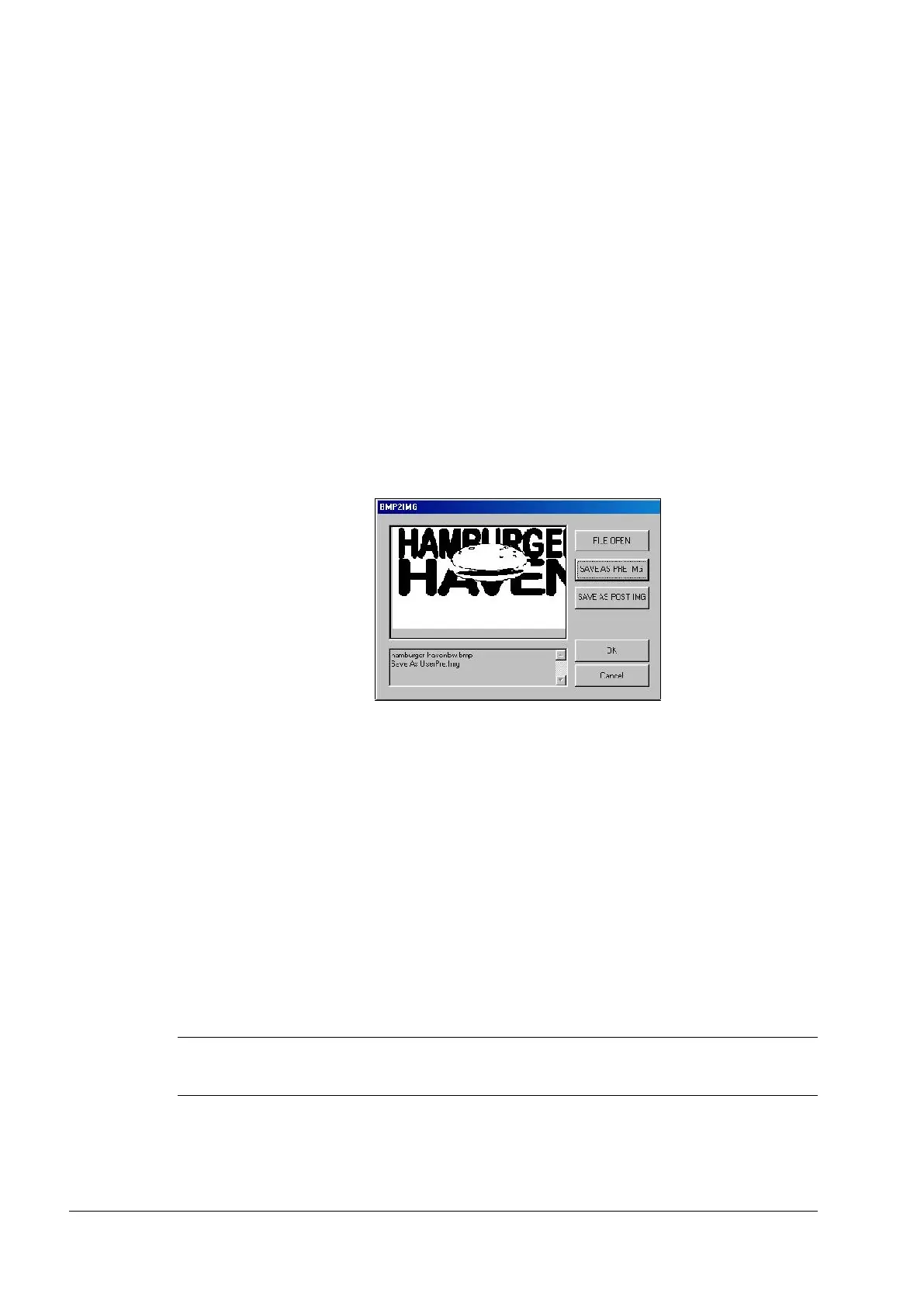

5. At the PC Utility, choose Convert Logo Image from the Utility menu. The
Bmp dialog box displays.
6. Click FILE OPEN. Select the bitmap image you wish to use from the Open
dialog and click the Open command button.
7. Click the SAVE AS PRE IMG or SAVE AS POST IMG button.
8. When the image is selected, click OK. Verify that the message “Save As
UserPre.Img” or “Save As UserPost.Img” displays. If the file is too large,
and cannot be loaded, the message “File Size Error” displays.
Copy the Images to an SD Card
The PC Utility will create two image files:
USERPRE.IMG
USERPOST.IMG
They will be located on your PC at:
C:\ER-900PC\Store Name
Copy the images to the following path on your SD card:
SD\ER900\PgmBack\Store Name
Important: In the path: C:\ER-900PC\Store Name, the store name is the name you have
defined as the store in the PC Utility. Note: You must use the same store name in the ER-900
Series ECR at System Option #30.
