9.15 DISTINTA PREDISPOSIZIONE GRUPPO 2
9.15 GROUP 2 PREDISPOSITION PART LIST
52
1 CORPO POMPA ALIM.+BUSS. GR.2-3 HCV HCV BOOST P. CASING + BUSHING FOR GROUP 2-3 1
2 ALBERO P.A. PRED. GR.2-3 HCV HCV B. P. SHAFT FOR GROUP 2-3 1
3 FLANGIA PREDISP. POMPA GR.2 HCV HCV FLANGE FOR GR. 2 PREDISP. 1
4 GIUNTO PRED. GR. 2/3 HCV HCV COUPLING FOR GR. 2-3 PRED. 1
5 SOTTOTAPPO D = 39 (1"1/2 SAE) PLASTIC PLUG D = 39 (1"1/2 SAE) 1
6 GUARN OR-2350 1.78x88.62 (2-43) O-RING 2350 1.78x88.62 (2-43) 1
7 GUARN OR-4312 3.53x78.97 (2-235) O-RING 4312 3.53x78.97 (2-235) 1
8 SPINA EL. UNI-ISO 8752-4x40-A-St SPRING PIN UNI-ISO 8752-4x40-A-St 1
9 TAPPO TCEI G.1/4 (DIN 908)-8.8 G.1/4 (DIN 908)-8.8 SOCKET H. PLUG 1
10 GIUNTO BF3/2 POMPA GR.2 HCV BF3/2 COUPLING FOR GR.2 HCV 1
11 GUARN OR-3143 2.62X36.17 (2-127) O-RING 3143 2.62X36.17 (2-127) 1
12 VITE TCEI UNI 5931 M8x60-8.8 S. H. SCREW UNI 5931 M8x60-8.8 6
13 ROSETTA EL. UNI 8840-B8 UNI 8840-B8 SPRING WASHER 6
14 ROND. RAME RIC. D = 13.3x19x1.5 (1/4" GAS) SOFT COPPER WASHER D = 13.3x19x1.5 (1/4" GAS) 1
15 LINGUETTA A 6x6x20 UNI 6604-69 A 6x6x20 UNI 6604-69 KEY 1
16 PIGNONE X POMPA DI ALIMENTAZIONE HCV HCV BOOST PUMP PINNION GEAR 1
17 CORONA X POMPA DI ALIMENTAZIONE HCV HCV BOOST PUMP CROWN GEAR 1
18 GIUNTO x PREDISP. GR.2 GR.3 HCV COUPLING FOR GR.2/3 PRED. 1 HCV 100/125
19 SPINA ELASTICA UNI-ISO 8752-A-3x36 SPRING PIN UNI-ISO 8752-A-3x36 1 HCV 100/125
N DENOMINAZIONE ITEM Q. NOTE

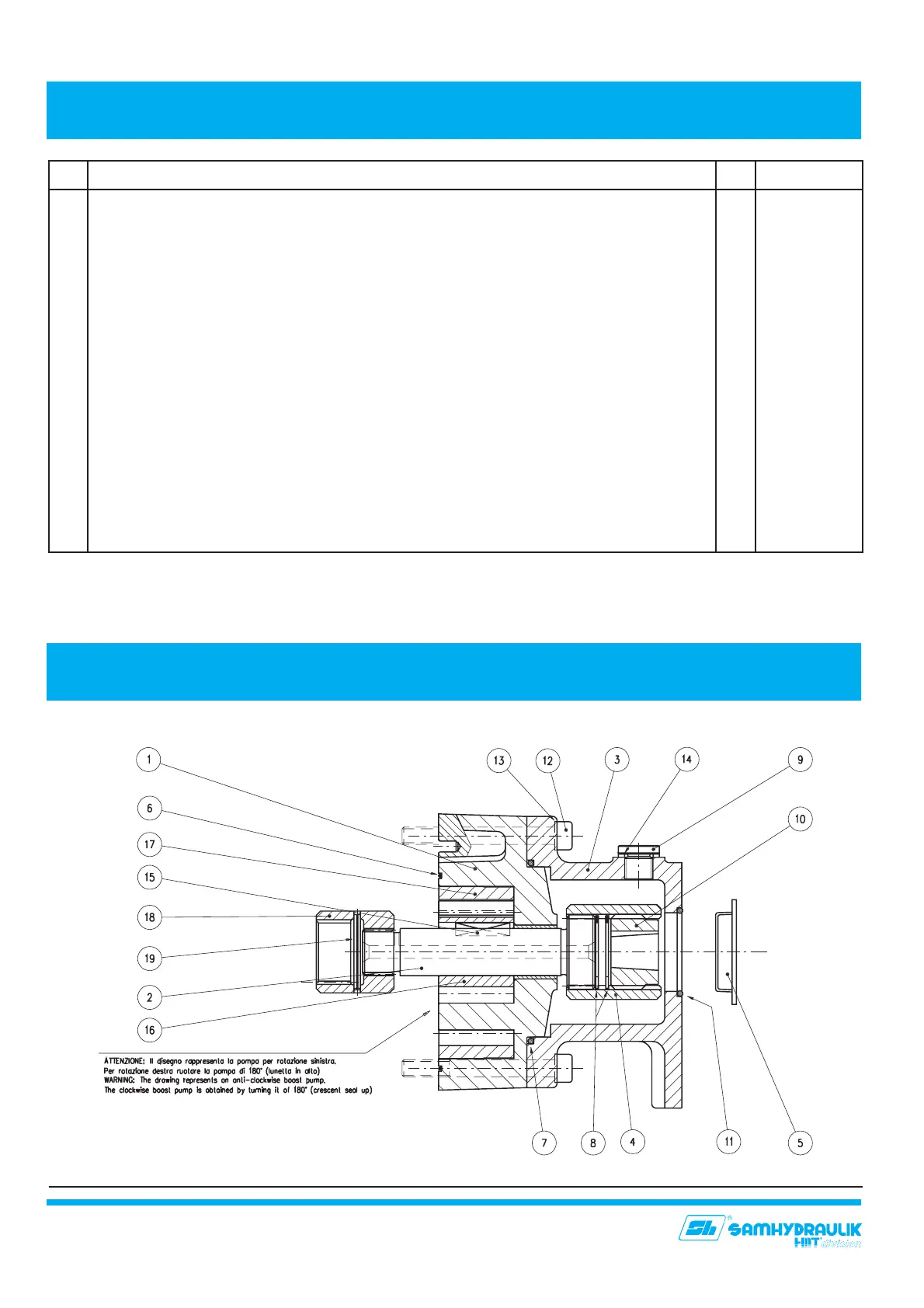

9.16 SEZIONATO PREDISPOSIZIONE GRUPPO 2
9.16 GROUP 2 PREDISPOSITION CUTAWAY DRAWING
