Samson 41-23 - Spare Parts List

15-2 EB 2512 EN
Annex
15.5 Spare parts
Version(September2012onwards)
1 Bellows
2 Bellowsassembly
6 Coupling nut
12 Balancingscrew
16 Seat
17 Plug
17.1 Pre-stage of plug
17.2 Seal
20 Body
21 Guidecap
25 Guide(DN32to100)
25, 26 Guidebushing/pipe(DN15to25)
27 Flanged pipe
28 Washer
34 Flange
40 Set point adjuster
42 Retaining washer
44 Pillar
46 Seal
51 Stud
52 Hexnut
60 Flow divider
70, 71 Spring
73 Travel stop cap with cotter pin
74 Spring plate
75 Seal
76 Axialneedlebearing
16
17
12

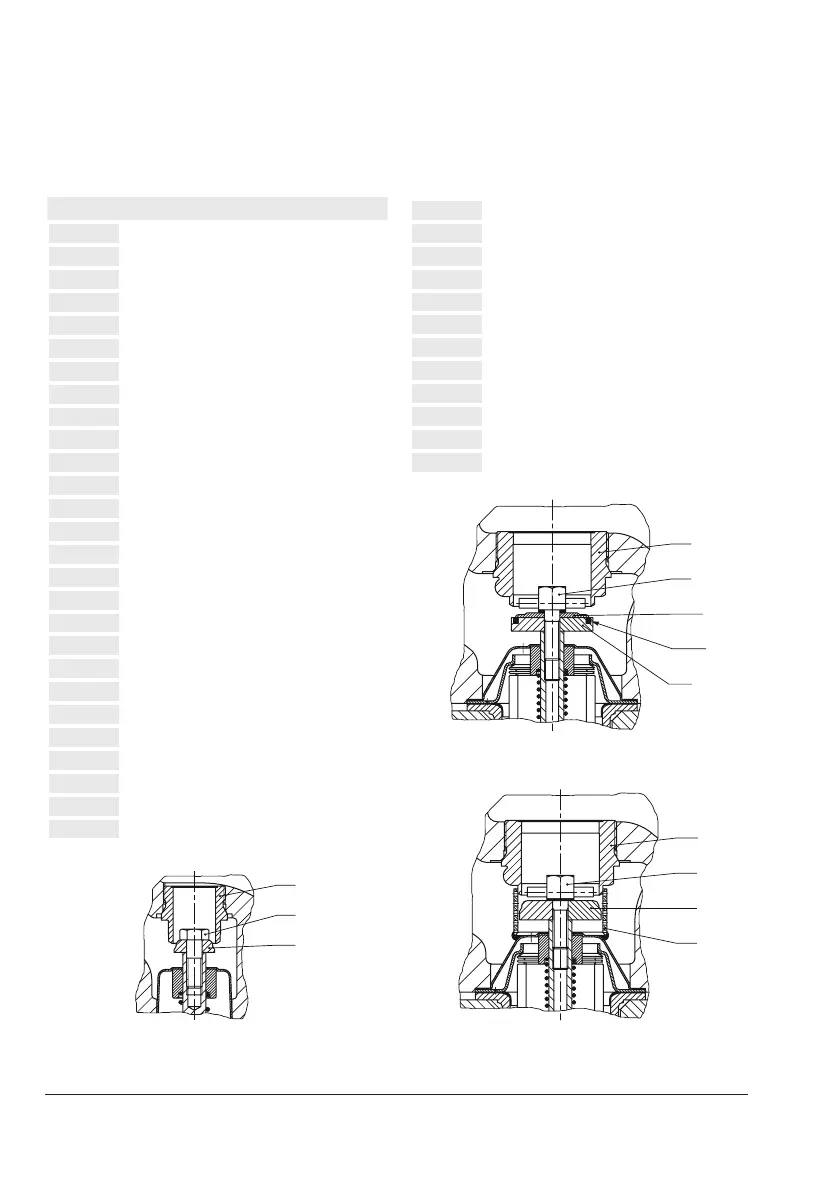

Standardversion(DN15to25)
77 Lock washer
79 Hexnut
80 Crossbeam
101, 102 Diaphragm case
103 Screw plug
104 Diaphragm stem
105 Diaphragm plate
106 Diaphragm washer
108 Operating diaphragm
111 Hexbolt
112 - 114 Hexnut
116 Washer
16
17.1
17.2
17
12
Versionwithsoft-seatedplug
16
60
17
12
Versionwithowdivider
