For
Y
=
0
or
2

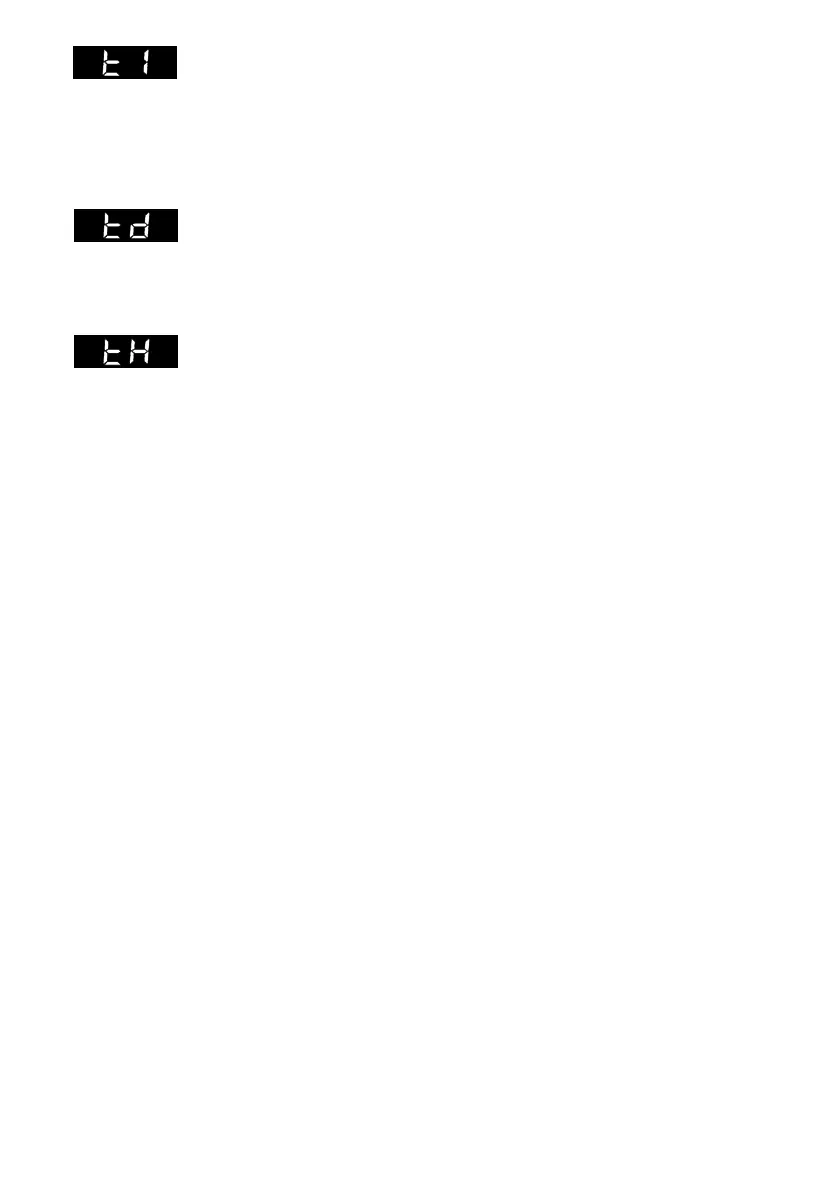

Duration of period for pulse-pause
Switching output (Y1/Y2 = 8 or 9)
Setting range: 1 to 9999 sec.
For
Y
=
1
Motor operating time of the final control
element connected
Setting range: 1 to 9999 sec.
Dead band (neutral zone)
td
Range of values 0.1 to +100.0 % in reference to the output signal.
The dead band (for
Y
=
1
) is entered for the three-step controller, and the
minimum pulse duration is entered for the switching outputs (see chapter 5,
page 9 for further details).
For
Y
=
1
Differential gap
Range: 0.1 to 100.0 %
After actuating the operating key (7), the controller returns to the operating level (standard
operation).
