2. Installation
TROVIS 6494
is smartly engineered as a panel-mount unit, the front dimensions of which com-
pactly measure 48 x 96 mm
2
. A panel cut-out of 45
+0.6
x 92
+0.8
mm
2
is to be fabricated for as-
sembly of the plastic enclosure. After sliding the controller in the panel cut-out, the supplied
clamps depicted in Fig. 3 are to be locked in place at the top and bottom in the accommodating
pins of the enclosure. A screw driver can consequently be used to turn the threaded rods, clamp-
ing the controller’s front frame against the panel.

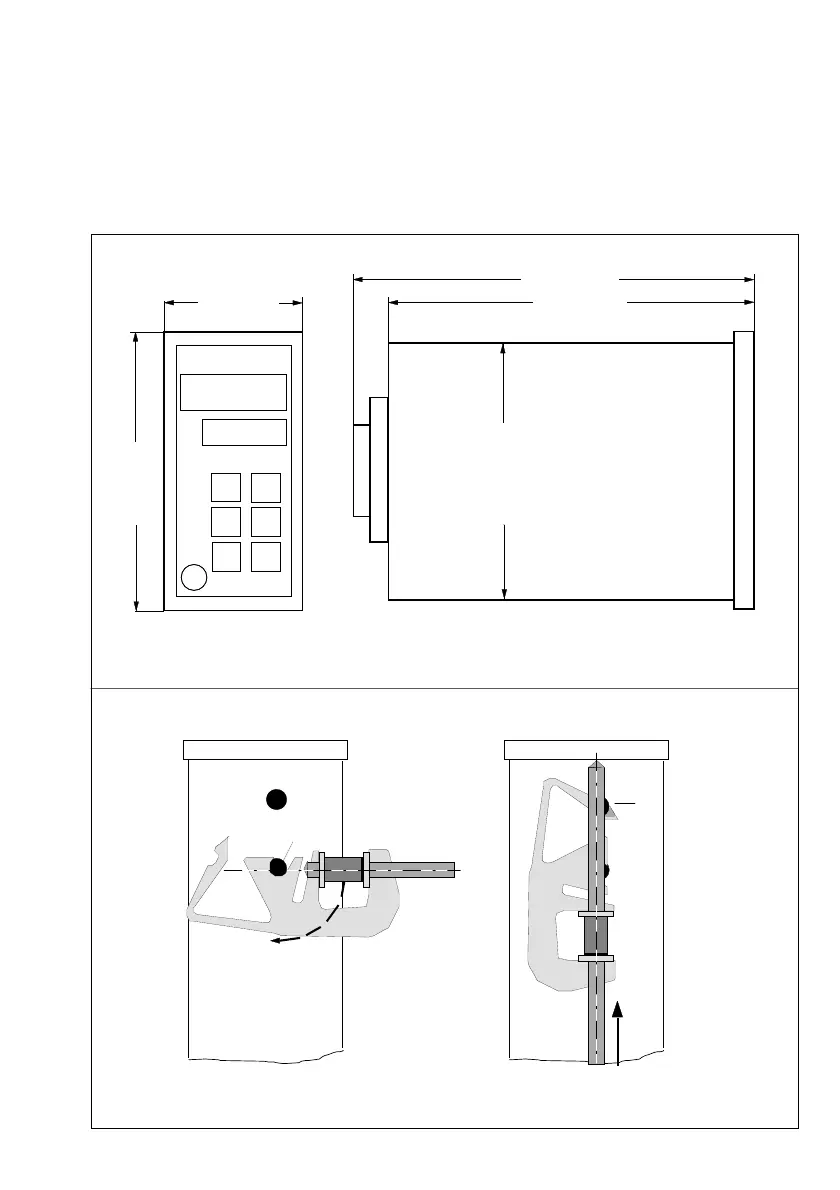

Fig. 2 ⋅ Dimensions in mm (inch)
Fig. 3 ⋅ Assembly
48 (1.89)
96 (3.78)
123 (4.84)
111 (4.37)
89.5 (3.52)
Front Front
Pivot
2)
Lock in
place
3)
Screw tight
1)
Inserting on pivot
and turning
7
