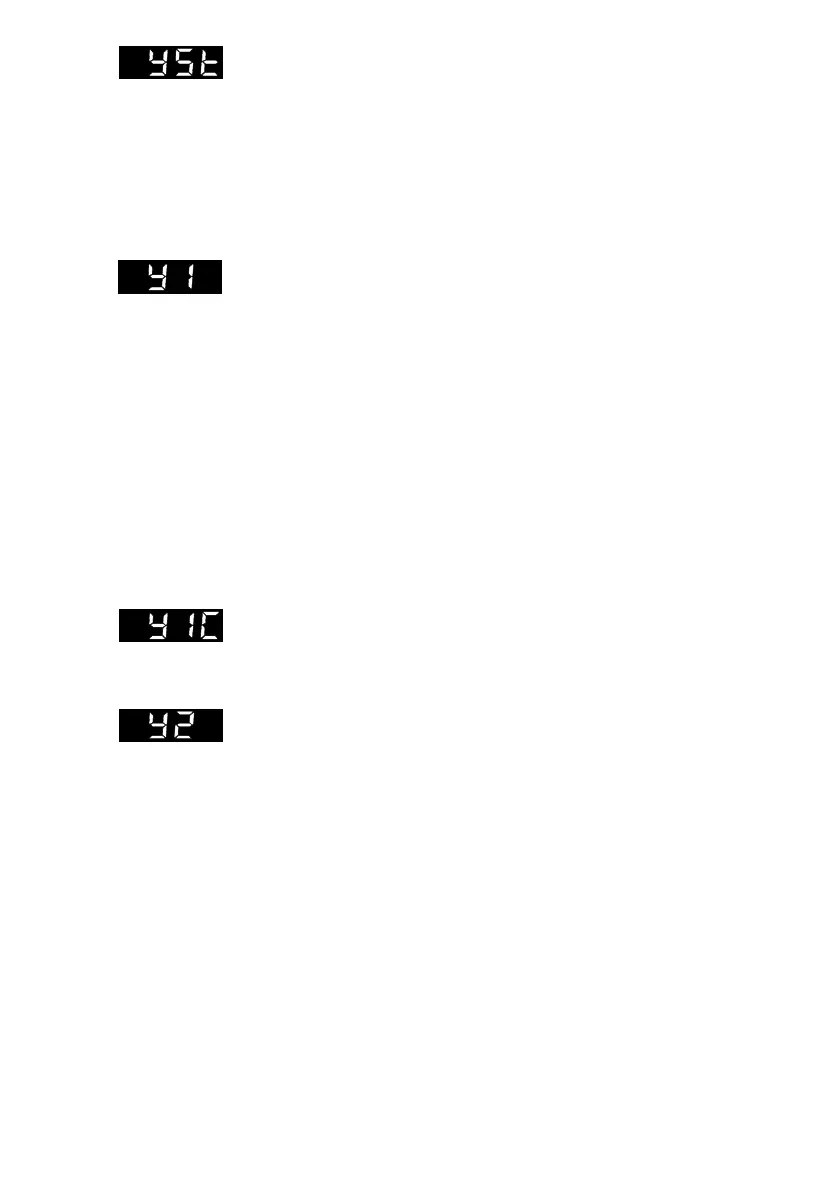

Safety output (restart) value
YSt
Should the sensor line break, this is used as the restart value following
power failure
If the senor line breaks, the controller output is automatically set to specified
value
Yst
. The controller output value can be set from –10.0 to 110.0 % of
the output variable range.
For Y = 1:
YSt
< 0.0 % → – Signal is output
YSt
> 100.0 % → + Signal is output
YSt
in the range from 0.0 to 100.0 %; no signal is output.
Limit alarm condition for switching output
Y1
For Y = 1, Y1 is inactive and cannot be modified. The alarm condition refers
to the numeric value of the value entered under parameterization op-
tion
1A
.
0
— Switching output Y1 is not set
1
— Contact Y1 switches when x falls below the limit value
2
— Contact Y1 switches when x exceeds the limit value
3
— Contact Y1 switches when xd falls below the limit value
4
— Contact Y1 switches when xd exceeds the limit value
5
— Contact Y1 switches when lxdl exceeds the limit value
6
— Contact Y1 switches when y falls below the limit value
7
— Contact Y1 switches when y exceeds the limit value
8
— Clocked controller output positive
9
— Clocked controller output negative
Switching output Y1 as break or make contact
Y1C
0
— Make (NC) contact
1
— Break (NO) contact
Limit alarm condition for switching output
Y2
For Y = 1, Y2 is inactive and cannot be modified. The alarm condition refers
to the numeric value of the value entered under parameterization op-
tion
2A
.
0
— Switching output Y2 is not set
1
— Contact Y2 switches when x falls below the limit value
2
— Contact Y2 switches when y exceeds the limit value
3
— Contact Y2 switches when xd falls below the limit value
4
— Contact Y2 switches when xd exceeds the limit value
5
— Contact Y2 switches when xd exceeds the limit value
6
— Contact Y2 switches when y falls below the limit value
7
— Contact Y2 switches when y exceeds the limit value
8
— Clocked controller output positive
9
— Clocked controller output negative
21
