Space requirement for installation
f Space requirement was decided based on following conditions; Cooling mode, outdoor temperature of 35°C. Larger
space is required if the outdoor temperature is higher than 35°C or if the place is heated easily by quantity of solar
radiation.
f When you secure installation space, consider path for people and the direction of the wind.
f Secure installation space as shown in the below illustration, considering ventilation and the service space.
f If the installation space is narrow, installer or other worker may get injured during work and may also cause problem to
the product.
f If you install multiple number of outdoor units in one space, make sure to secure enough ventilation space if theres
any walls around the product that may disturb the air ow. If enough ventilation space is not secured, product may
malfunction.
f You may install the outdoor units with 20mm of space between the product, but product’s performance may decrease
depending on the installation environment.

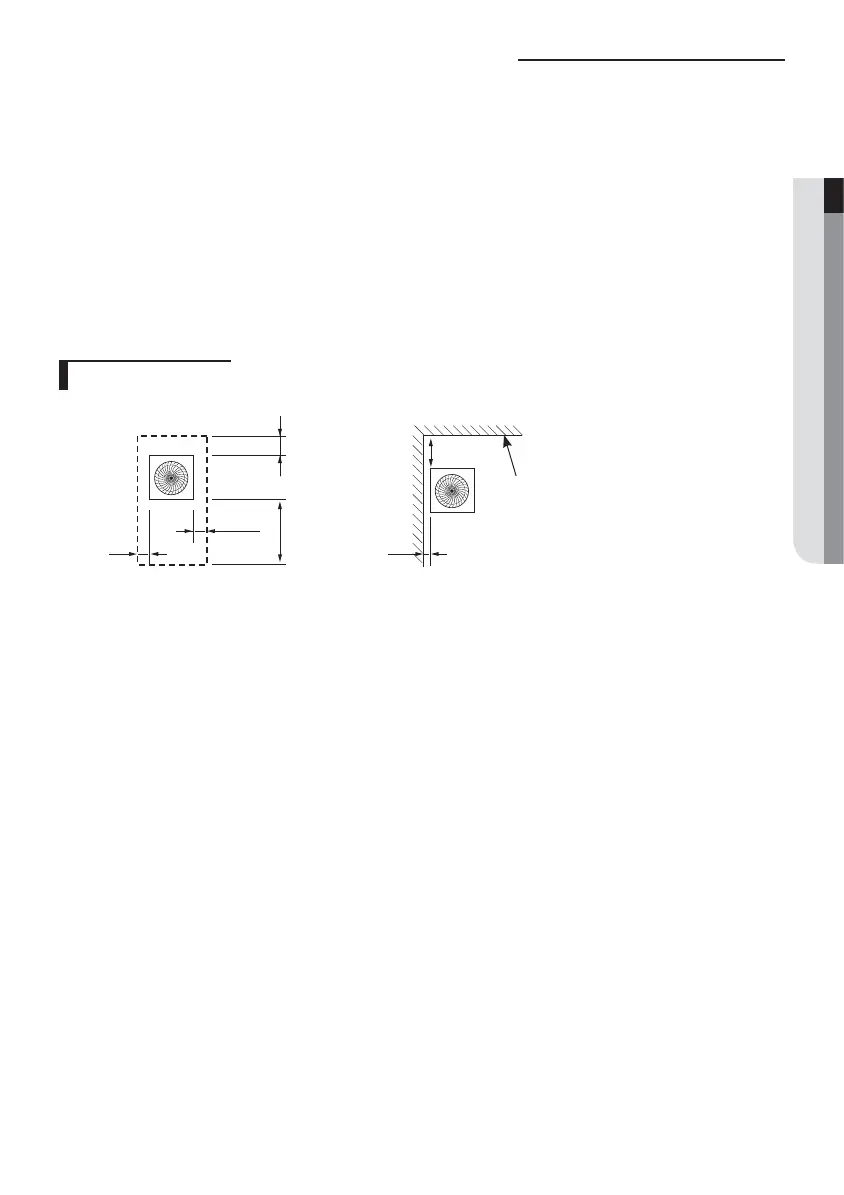

Single installation
(Unit : mm)
Height of the wall is
unlimited
Over 100 (S2)Over 500 (S1)
Over 100 Over 100
Front
side
Over 100
Over 300
<Case 1> <Case 2>
Front side
