22

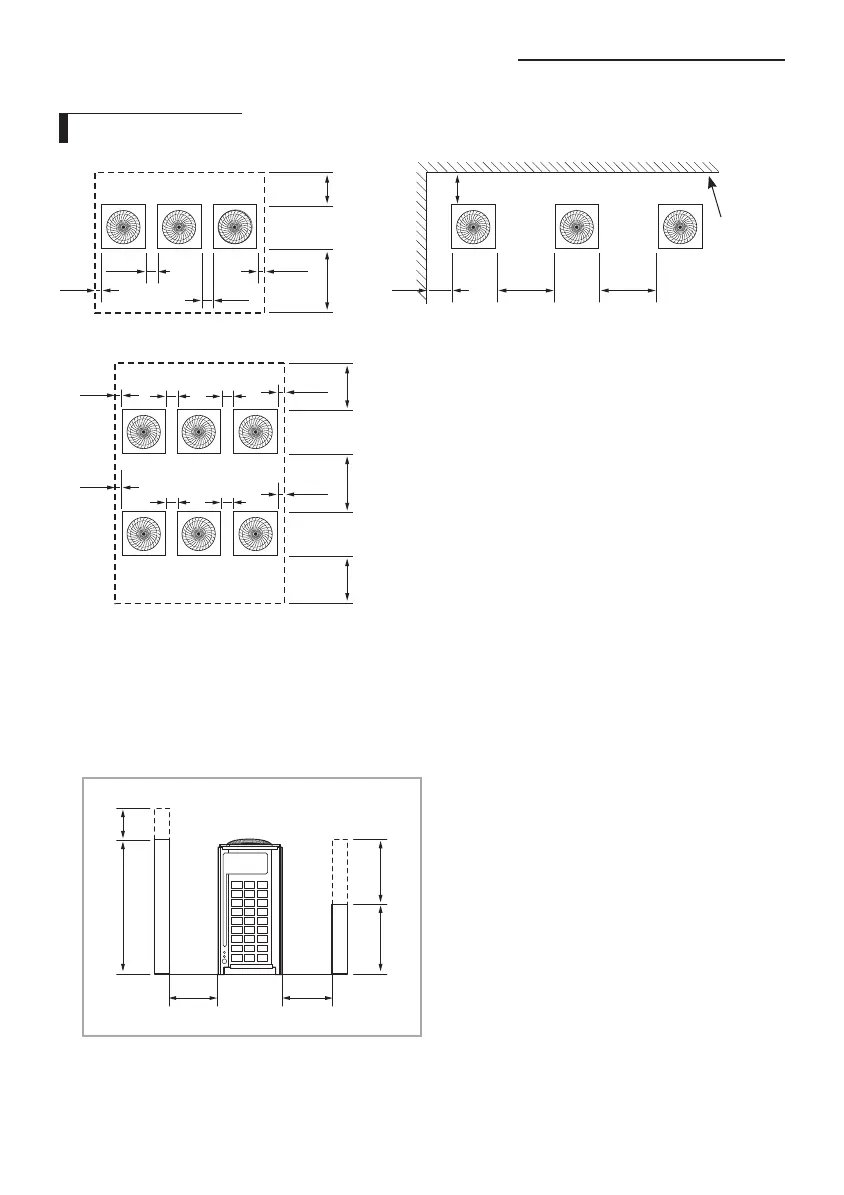

Space requirement for installation
Module installation
<Case 3>
Over 500Over 500 Over 600
Over 100 Over 100
Over 100
Over 100
Over 100 Over 100 Over 100 Over 100
Front side
Front side
<Case 1> <Case 2>
Over 200
Over 100
Over 300
(S2)
Over 500
(S1)
Over 100
Over 100
Over 100
Over 300
Over 400Over 400
Height of
the wall is
unlimited
Front
side
Front side
For <Case 1> or <Case 3>
Height of the wall on the front side should not be higher than 1500mm.
Height of the wall on the air inlet side should not be higher than 500mm.
Height of the wall on the side is not limited.
If the height of the wall exceeds by certain value (h1, h2), additional clearance [(h1)/2, (h2)/2 : Half of the exceeded
distance] should be added to the service space (S1, S2).
1500 h1
500 h2
Front side
Air inlet side
(Unit : mm)
S1+h1/2 S2+h2/2
