Samsung DVM S Series User Manual

25
ENGLISH

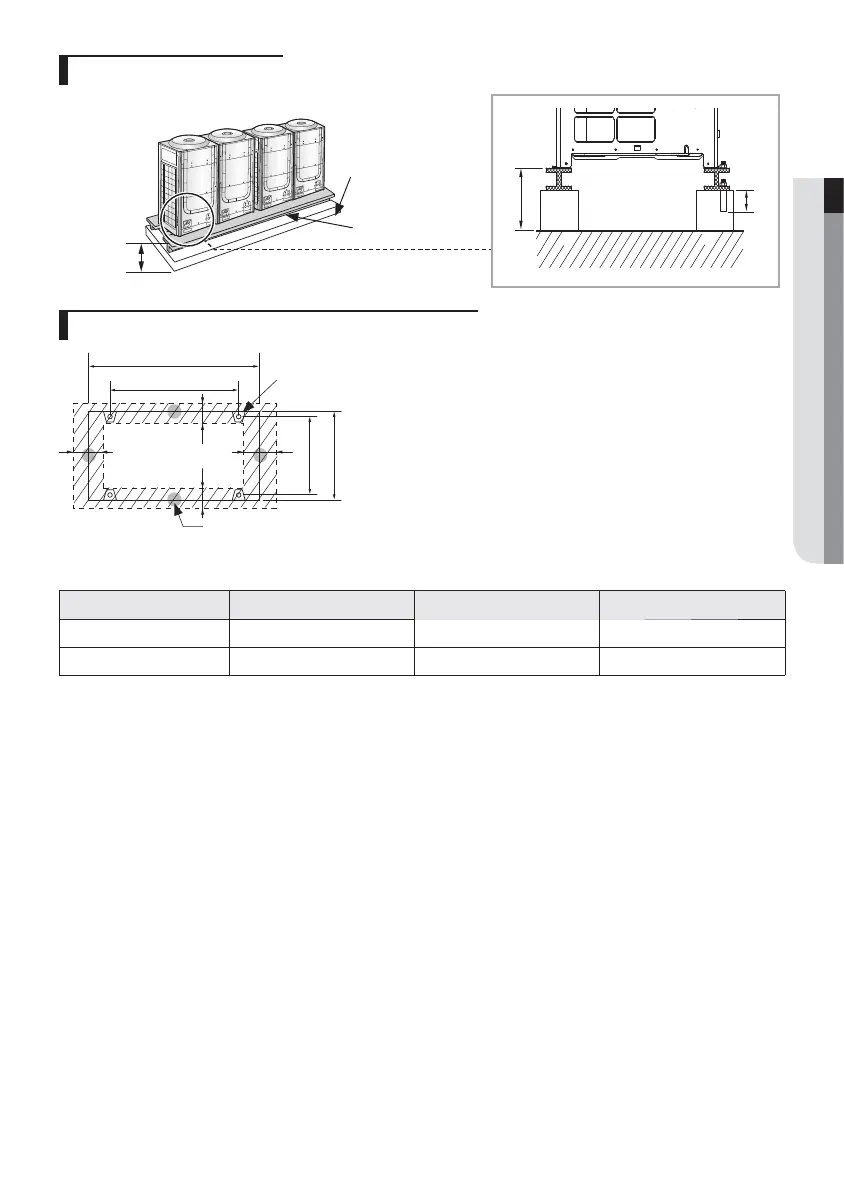

Outdoor unit installation
Over 200 mm
Over 50 mm
Base ground
H beam or anti-vibration
frame
Over 200 mm
Outdoor unit base mount and anchor bolt position
A
B
54
761 803
54
Outdoor unit - Anti-vibration
frame (4-Ø 12)
Anti-vibration - Base ground
(4-Ø 18)
(Unit : mm)
Classication DVM S Small Type DVM S Large A Type DVM S Large B type
A 880 1,295 1,295
B 740 1,150 1,150
❇ Refer to the blueprints in technical data book to make a holes for connecting the anti-vibration pad.

Samsung DVM S Series Specifications

General

Refrigerant	R410A
Operating Temperature Range (Cooling)	-5°C to 48°C
Piping Length (Total)	1000m
Inverter Technology	Yes
Type	VRF System
Compressor Type	Inverter Scroll Compressor
Energy Efficiency	High Efficiency
Control	Centralized Control, Individual Control
Indoor Unit Options	Cassette, Duct, Wall Mount, Ceiling
