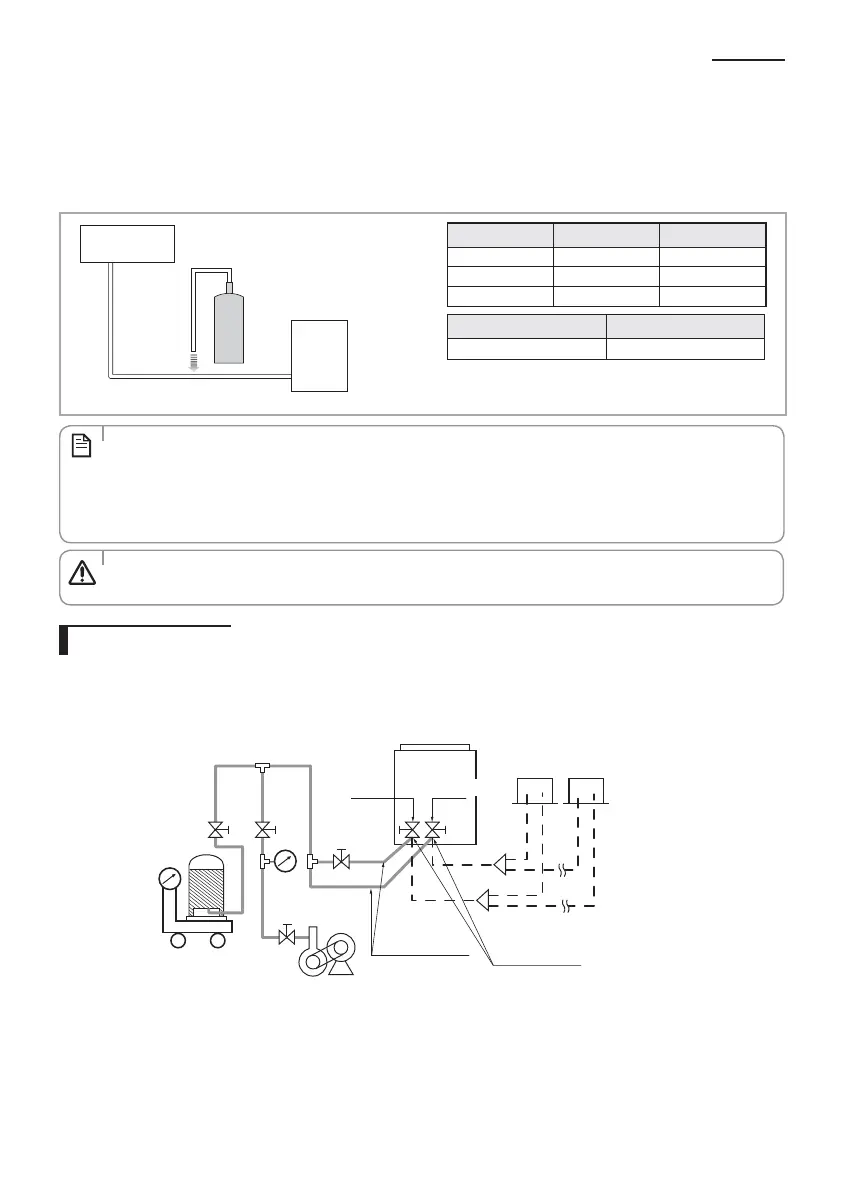

Charging refrigerant (for the turkish market only)
Please ll in the following with indelible ink on the refrigerant charge label supplied with this product and on this
manual.
f ①: the factory refrigerant charge of the product.
f ②: the additional refrigerant amount charged in the eld.
f ①+②: the total refrigerant charge.
d
Indoor unit
Outdoor
unit
②
①
Refrigerant type GWP value
R-410A 2088
Unit Kg tCO
2
e
①,a
②, b
①+②,c
• GWP=Global Warming Potential
• Calculating tCO
2
e : kg x GWP / 1000
a Factory refrigerant charge of the product: see unit name plate.
b Additional refrigerant amount charged in the eld. (Refer to the above information for the quantity of
refrigerant replenishment.)
c Total refrigerant charge.
d Refrigerant cylinder and manifold for charging.
NOTE
• The lled-out label must be adhered in the proximity of the product charging port.
(ex. onto the inside of the stop valve cover.)
CAUTION
Single installation
f Open the manifold gauge valve connected to the liquid side service valve and add the liquid refrigerant.
f If you cannot add the whole quantity of the refrigerant while the outdoor unit is stopped, open the gas side and liquid
side service valve. Then, add remaining refrigerant by pressing the refrigerant adding button of the outdoor PCB.
Gas side
Scale
R-410A (Inject
liquid refrigerant)
Liquid side
Vacuum port
Manifold gage
Service valve
Outdoor unit
To Next Page
