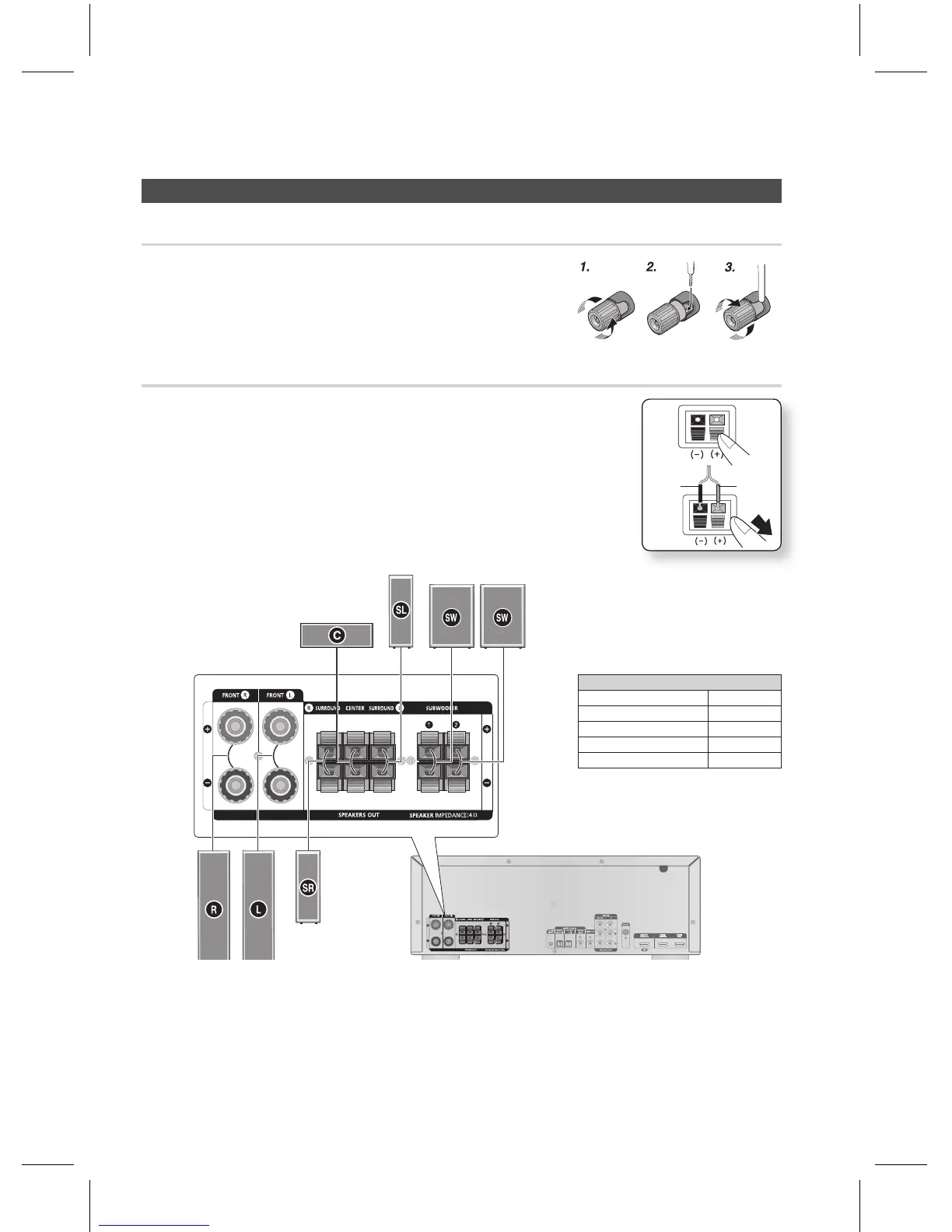

Loosen the knob by turning counterclockwise.
Insert the bare part of the wire into the hole in the side of each
terminal.
Tighten the knob by turning clockwise to secure the wire.
Press down the terminal tab on the back of the speaker.
Insert the black wire into the black terminal (–) and the red wire into the red
terminal (+), and then release the tab.
Connect the speaker wire plugs to the back of the product by matching
the Colors of the speaker plugs to the speaker jacks.
1.
2.
3.
1.
2.
3.
Model HW-E5500
AV Receiver HW-E5500
FRONT SPEAKER PS-FE5500
CENTER SPEAKER PS-CE5500
SURROUND SPEAKER PS-SE5500
SUBWOOFER PS-WE5500
Speakers are provided with model HW-E5500 only.
Keep the subwoofer speaker out of reach of children to prevent them from inserting their hands or
objects into the duct (hole).
Never touch speaker terminals while the power is on. Doing so could result in electric shock.
Make sure the polarities (+ and -) are correct.
✎
`
`
`
`
SURROUND (R)
FRONT (R)
CENTER
SURROUND (L)
FRONT (L)
SUBWOOFER SUBWOOFER
Red
Black
