Connecting the Alarm Input/Output
The Alarm IN/OUT port in the back of SHR-2160/2162 is composed of the following
elements.

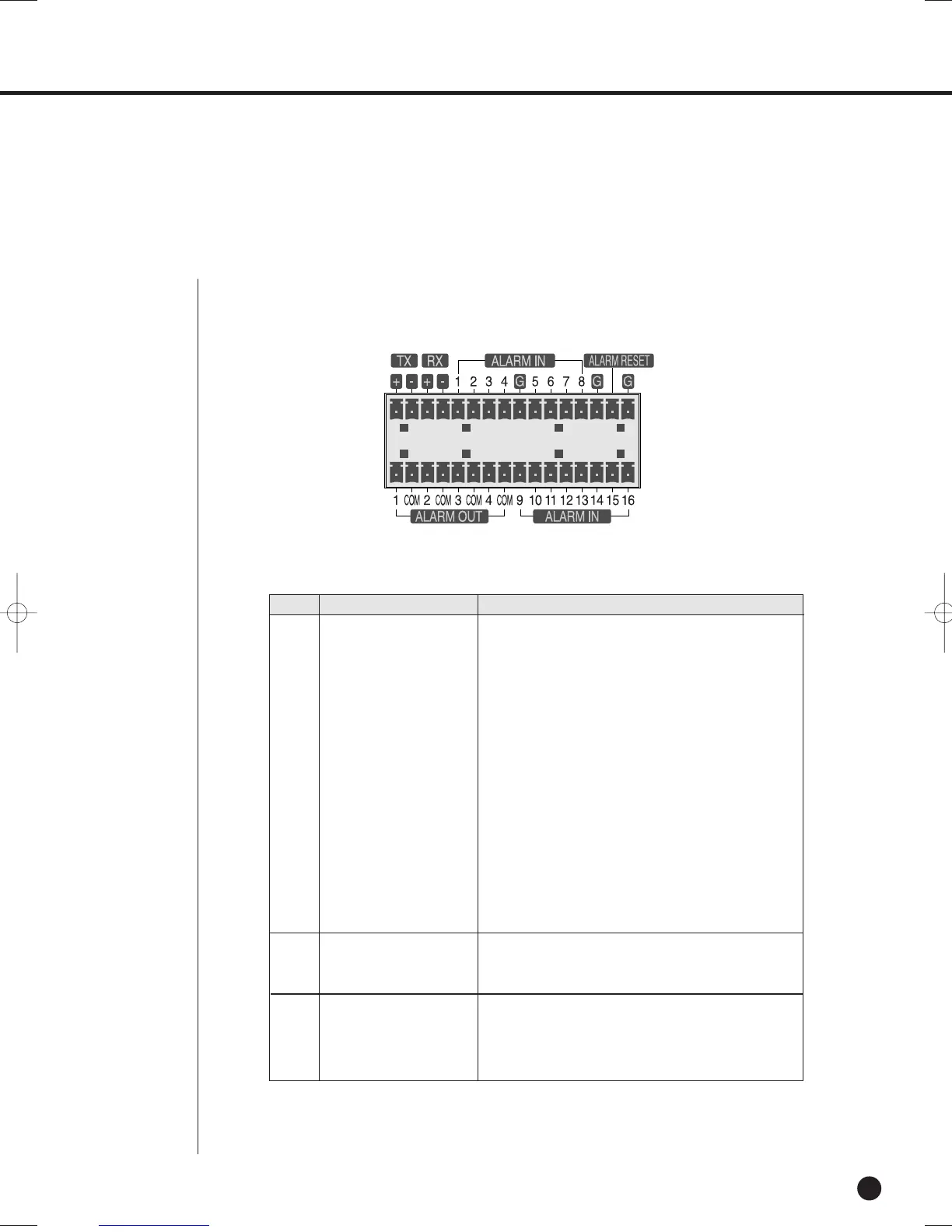

● ALARM IN/OUT Connection
ALARM Output Port
Name Function
- ALARM IN1
- ALARM IN2
- ALARM IN3
- ALARM IN4
- ALARM IN5
- ALARM IN6
- ALARM IN7
1 - ALARM IN8 ALARM Input Port
- ALARM IN9
- ALARM IN10
- ALARM IN11
- ALARM IN12
- ALARM IN13
- ALARM IN14
- ALARM IN15
- ALARM IN16
On receiving an ALARM RESET signal, the
2 - ALARM RESET system cancels the current ALARM input or
output signal and resumes sensing.
- ALARM OUT1
- ALARM OUT2
3
- ALARM OUT3
- ALARM OUT4
