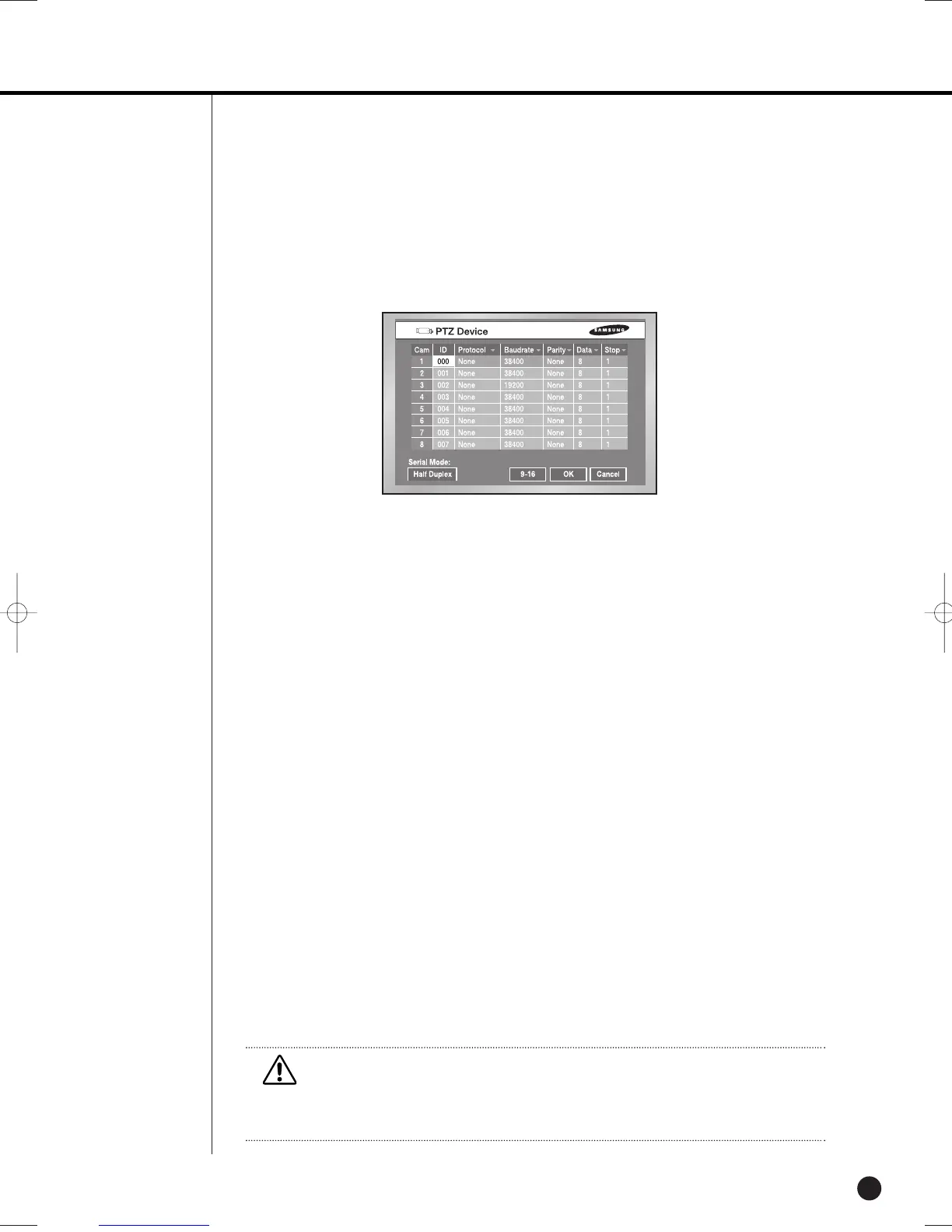

PTZ Device
●
ID
It is an ID for PTZ Camera and available to set from 0 to 255.
●
Protocol
It is supported by the PTZ device.
The following protocols are now being supported.
Samsung / Vic. / Pan. / AD / Phi. / Ern. / Pel-D / Pel-P / Vcl. / Dia. / Kal. / Tech.
●
Baurate
Baurate is supported by the PTZ device. 600 / 1200 / 2400 / 4800 / 9600 / 19200 / 38400
●
Parity
It is set to the one of None, Even, and Odd.
●
Data
It is set to either 7 or 8.
●
Stop
It is set to either 1 or 2.
●
Duplex
It is set to either Half Duplex or Full Duplex.
●
In the case of the 2080/2082, 8-channel information comes up.
Caution
Caution
The above items shall be same to the PTZ device setup.
For the details, please refer to User Manual of the PTZ device manufacturer.
