Live screen Mode
4-2

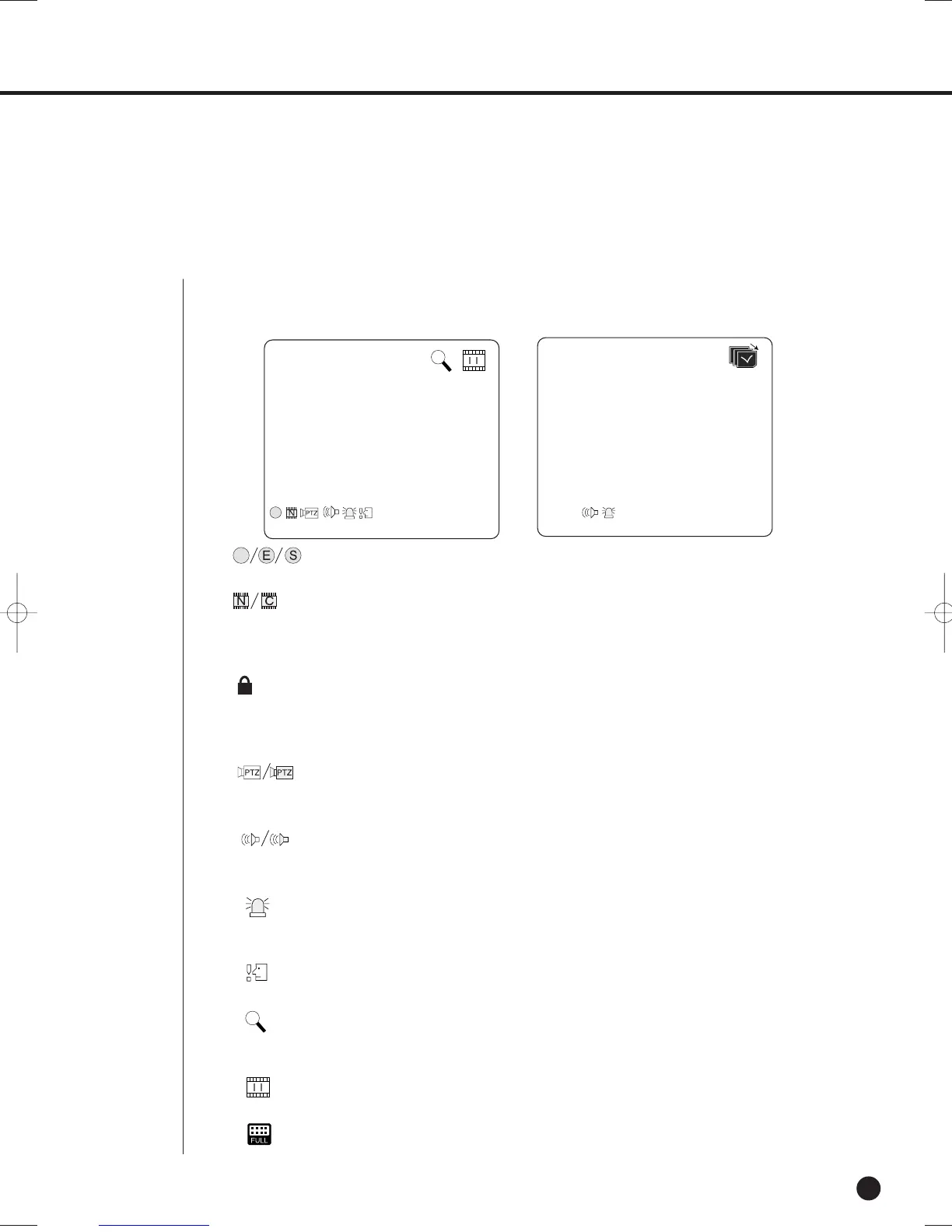

Definition of Live Screen Icon
The Live screen icons display the current setup and function status of each screen.
English
CAM_01
CAM_01
V.Loss
: Recording Icon
Each icon represents Normal / Event (Alarm + Motion) / Schedule Recording.
: Recording Video Size Icon
Each icon represents the recording size of Normal / CIF.
- Normal : Half D1 - (NTSC)720X240 (PAL) 720X288
- CIF : CIF - (NTSC)352X240 (PAL)352X288
: Recording lock icon
It indicates record lock while in record setup.
This icon appears while recording with the recording lock set.
You have to enter a password to cancel the recording.
: PTZ Icon
This icon appears when setting the PTZ device with the PTZ icon and changes to
yellow color when operating the PTZ.
: Audio Icon
This icon represents the Audio On/Off status and changes to yellow color at the
Audio On. It does not appear in the Video mode or Audio Disable.
: Sensor In Event Icon
This icon appears in the channel linked with the external sensor signal when entering
the signal at the Sensor On.
: Motion Event Icon
This icon appears in the Motion Event channel at the Motion Detection On.
: Zoom Icon
This icon appears while Zooming Out or Zooming In and disappears when canceling the
Zoom operation.
: Freeze Icon
This icon appears in the Freeze mode and disappears when canceling the Freeze.
: HDD Recording Disk Full Icon
Comes up when the HDD's space is insufficient when recording.
