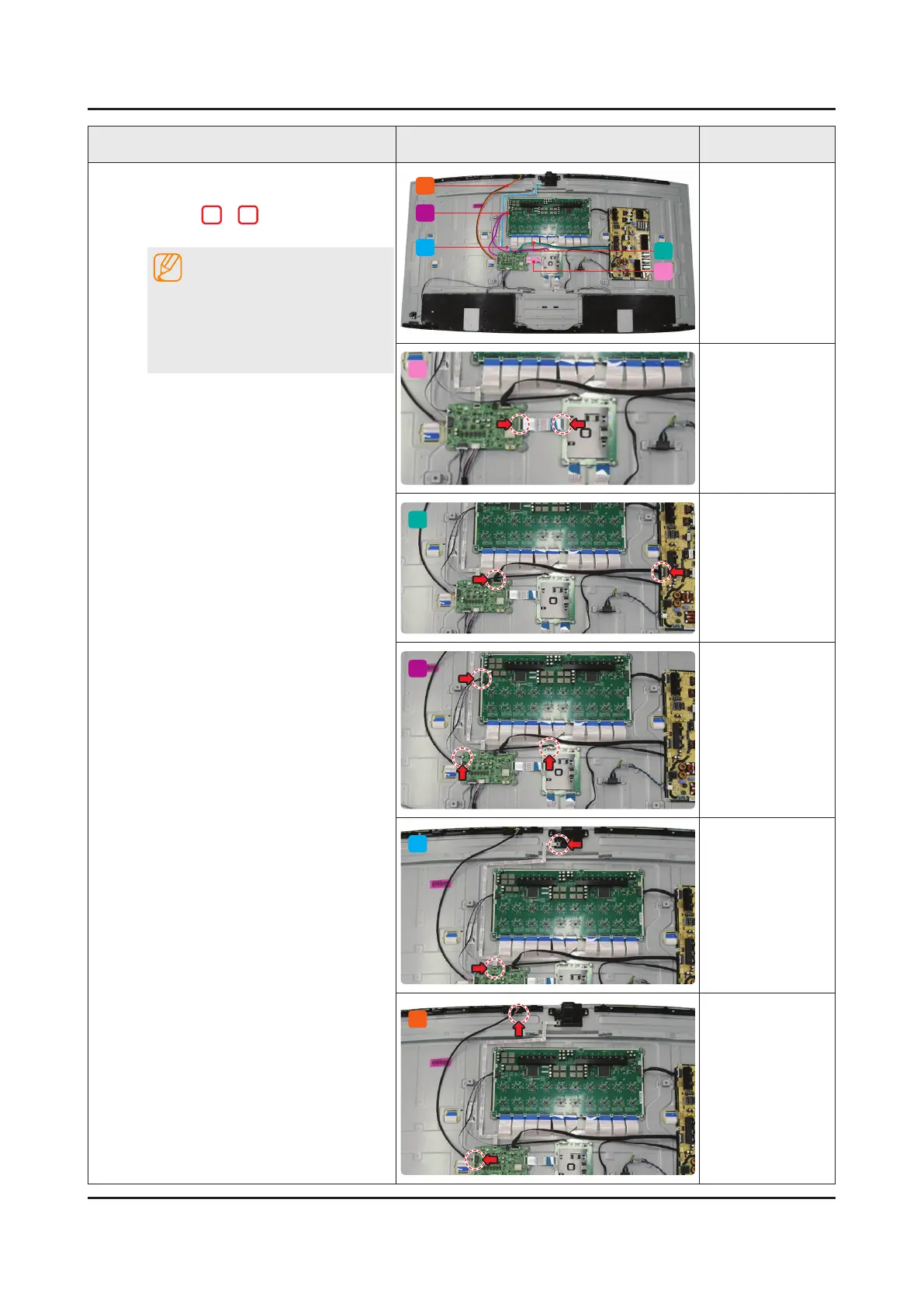

3-6
3. Disassembly and Reassemble
Description
Picture Description
Screws
5
Remove the Wires and cable from
connectors.
78" :
•
1
~
5
NOTE
When assembling the TV
, the electric
•
tapes must be applied on the same
locations.
Please remember to take a picture of
•
wherethetapeswererstapplied.
1
2
3
4
5
1
2
3
4
5
38
40
Table of Contents
Default Chapter
2
Table of Contents
2
1 Precautions
5
Warnings
5
Servicing the LED TV
5
Fire and Shock Hazard
5
Product Safety Notices
6
Servicing Precautions
7
General Servicing Precautions
7
Static Electricity Precautions
8
Installation Precautions
9
2 Product Specifications
10
Product Information
10
Product Specification
11
Feature & Specifications
11
Detailed Specifications
12
Accessories
16
Viewing the Functions
17
The Samsung Smart Control
17
Learning Motion Control Basics
20
Viewing the Panel
21
Displaying Multiple Screens
26
Enabling the TV to Boot Faster
27
HDMI UHD Color
28
Supported Formats
29
Features & Operation
32
3 Disassembly and Reassembly
34
4 Troubleshooting
41
Previous Check
41
How to Check Fault Symptom
43
Video
43
Bluetooth / WIFI Module
45
One Connect Box (Jack-Pack)
48
49
Testing Smart Hub Connections
51
Jog Function Control
52
Testing T-CON Board
53
Factory Mode Adjustments
55
Detail Factory Option
55
Entering Factory Mode
56
Factory Data
57
White Balance
64
Calibration
64
Service Adjustment
64
Adjustment
66
Rs-232C
67
AV Control Tabe
68
Updating the Tv's Software
74
5 Wiring Diagram
75
Connector
77
Main Board
77
Jackpack Board (One Connect)
80
SMPS Board
83
LDC Board
85
T-CON Board
87
FRC Board
94
ANNEX. Exploded View & Part List [UN65JS9500FXZA TS01]
97
Exploded View
114
Parts List
115
ONE CONNECT Exploded View
116
Parts List
117
Electrical Parts List
