3-7

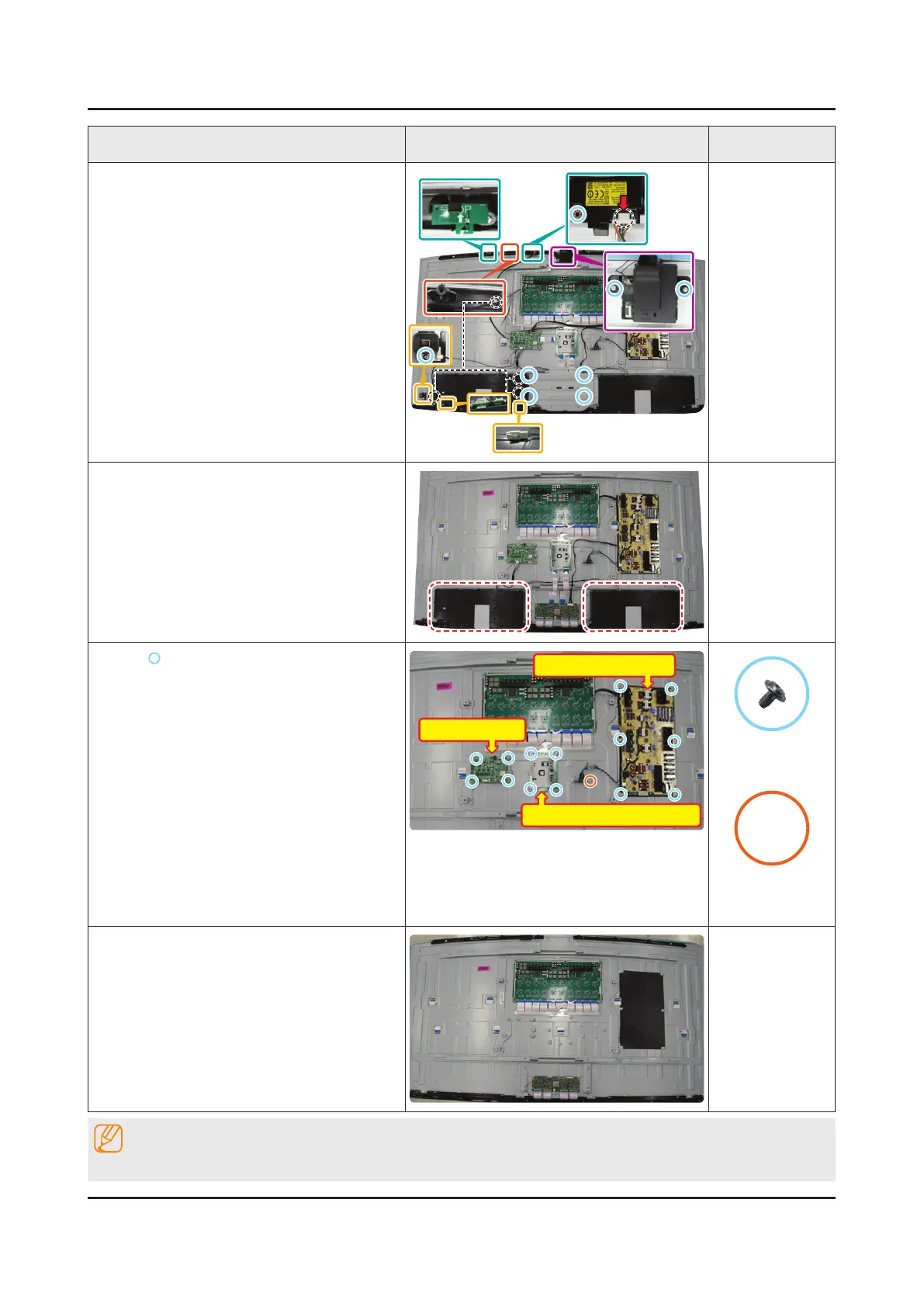

3. Disassembly and Reassemble
Description Picture Description Screws
6
Remove the NETWORK-WIFI MODULE,
ASSY BOARD P-JOG FUNCTION, ASSY
MISC P-TV CAMERA, ASSY BOARD P-IR
MODULE.
7
Remove the ASSY SPEAKER P (L/R).
8
After removing the screws of the
marked section, ASSY PCB MAIN, DC
VSS-LED TV PD BD.
78"•
SMPS : 6EA -
MAIN : 4EA -
ASSY PCB MAIN
ASSY PCB MAIN SUBCON
DC VSS-LED TV PD BD
6001-003016
SCREW-MACHINE
M3,L5,ZPC(WHT)
6001-002789
SCREW-MACHINE
M4,L6,ZPC(WHT)
9
Completed the disassembly.
NOTE
Reassembly procedures are in the reverse order of disassembly procedures.
