2nd Edition of TEMP2000_Series IM : July. 16. 2010 Page 32 / 87
3.1.2 Sensor Input Screen-2
▶ Input compensation for temperature range.
▶ Compensation range is implemented as linear equation type between the compensation points.
① Set temperature input compensation.
② Set each base temperature point which requires compensation.
③ Set compensating temperature at the base temperature.
④ Indicates the input compensation implemented temperature.
☞ This is read only, and can not be changed by touching the screen.
Table 3-2 Sensor Input Setup Screen-2 Parameter
Parameter Range Unit Default
Input Compensation 1 Value
Input Compensation 2 Value
Input Compensation 3 Value
Input Compensation 4 Value
Input Compensation 5 Value
Input Compensation 6 Value
Input Compensation 7 Value
Input Compensation 8 Value
EUS(-10.0 ~ 10.0%) EUS EUS(0.0%)
EU(0.0%)
EU(100.0%)
EU(100.0%)
EU(100.0%)
EU(100.0%)
EU(100.0%)
EU(100.0%)
Input Compensation Point 1
Input Compensation Point 2
Input Compensation Point 3
Input Compensation Point 4
Input Compensation Point 5
Input Compensation Point 6
Input Compensation Point 7
Input Compensation Point 8
EU(0.0 ~ 100.0%)
PV of Range Low
≤ PV of Input Compensation Point 1
≤ PV of Input Compensation Point 2
≤ PV of Input Compensation Point 3
≤ PV of Input Compensation Point 4
≤ PV of Input Compensation Point 5
≤ PV of Input Compensation Point 6
≤ PV of Input Compensation Point 7
≤ PV of Input Compensation Point 8
≤ PV of Range High
EU
EU(100.0%)

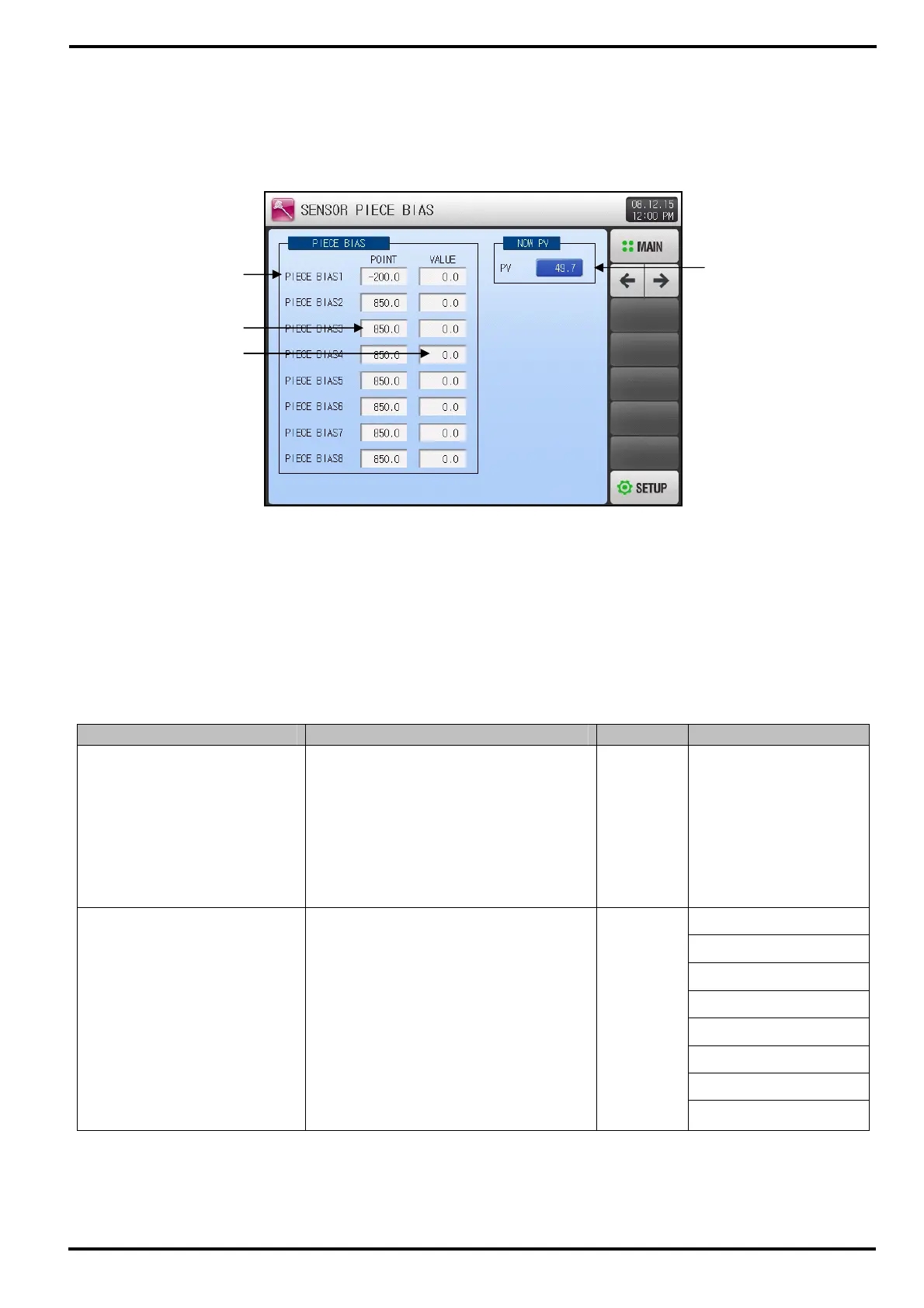

[Figure 3-10] Sensor Input Setup Screen-2
①
②
③
④
