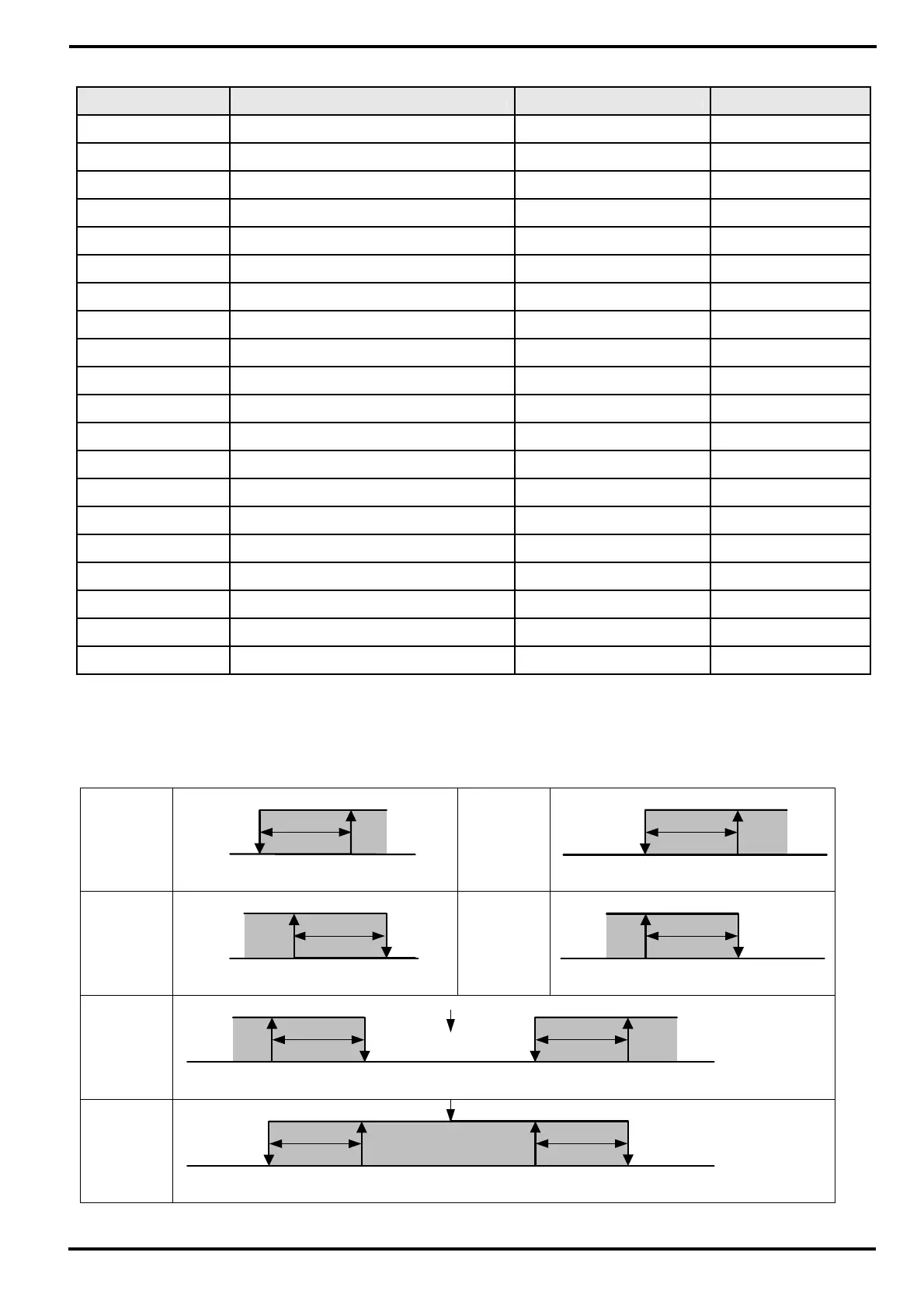

Table 9-4. Alarm Types
Display Alarm Type Output Direction Wait Operation
AH.F High Limit Point Forward Direction No
AL.F Low Limit Point Forward Direction No
DH.F Deviation High Limit Forward Direction No
DL.F Deviation Low Limit Forward Direction No
DH.R Deviation High Limit Reverse Direction No
DL.R Deviation Low Limit Reverse Direction No
DO.F Outside High·Low Deviation Range Forward Direction No
DI.F Within High·Low Deviation Range Forward Direction No
AH.R High Limit Point Reverse Direction No
AL.R Low Limit Point Reverse Direction No
AH.FS High Limit Point Forward Direction Yes
AL.FS Low Limit Point Forward Direction Yes
DH.FS Deviation High Limit Forward Direction Yes
DL.FS Deviation Low Limit Forward Direction Yes
DH.FS Deviation High Limit Reverse Direction Yes
DL.RS Deviation Low Limit Reverse Direction Yes
DO.FS Outside High·Low Deviation Range Forward Direction Yes
DI.FS Within High·Low Deviation Range Forward Direction Yes
AH.RS High Limit Point Reverse Direction Yes
AL.RS Low Limit Point Reverse Direction Yes
9.2 Alarm Signal Operation
- +
- +
- +
- +
PV High Dev. High
Outside
High, Low
Dev.
Range
Within
High, Low
Dev.
Range
PV Low Dev. Low
PV
◀OFF
▲
ALM
ON▶
HYS
DEV
◀OFF
▲
ALM
ON▶
HYS
△
SP
PV
OFF▶
▲
ALM
◀ON
HYS
DEV
▲
ALM
◀ON
HYS
△
SP
OFF▶
DEV
▲
ALM
◀ON
HYS
△
SP
OFF▶
◀OFF
▲
ALM
ON▶
HYS
DEV=0
ON▶
◀ON
DEV=0
▲
ALM
▲
ALM
△
SP
◀OFF
OFF▶
DEV
HYS
HYS
