4.3 Output Terminals displays / settings
4.3.1 Output Setup Screen-3
▶ This screen is to set Retransmission.
▶ Retransmission can be set by selecting one from PV, SP, MV.
① Set Retransmission Type.
② Set Retransmission Range High/Low.
▶ This screen shows when Retransmission is set to MV.
Table 4-3 Output Setup Screen-3 Parameter
Parameter Range Unit Default
RET Type PV, SP, MV ABS PV
RET Range High EU EU(100.0%)
RET Range Low
EU(0.0~100.0%)
RET Range High < RET Range Low
EU EU(0.0%)

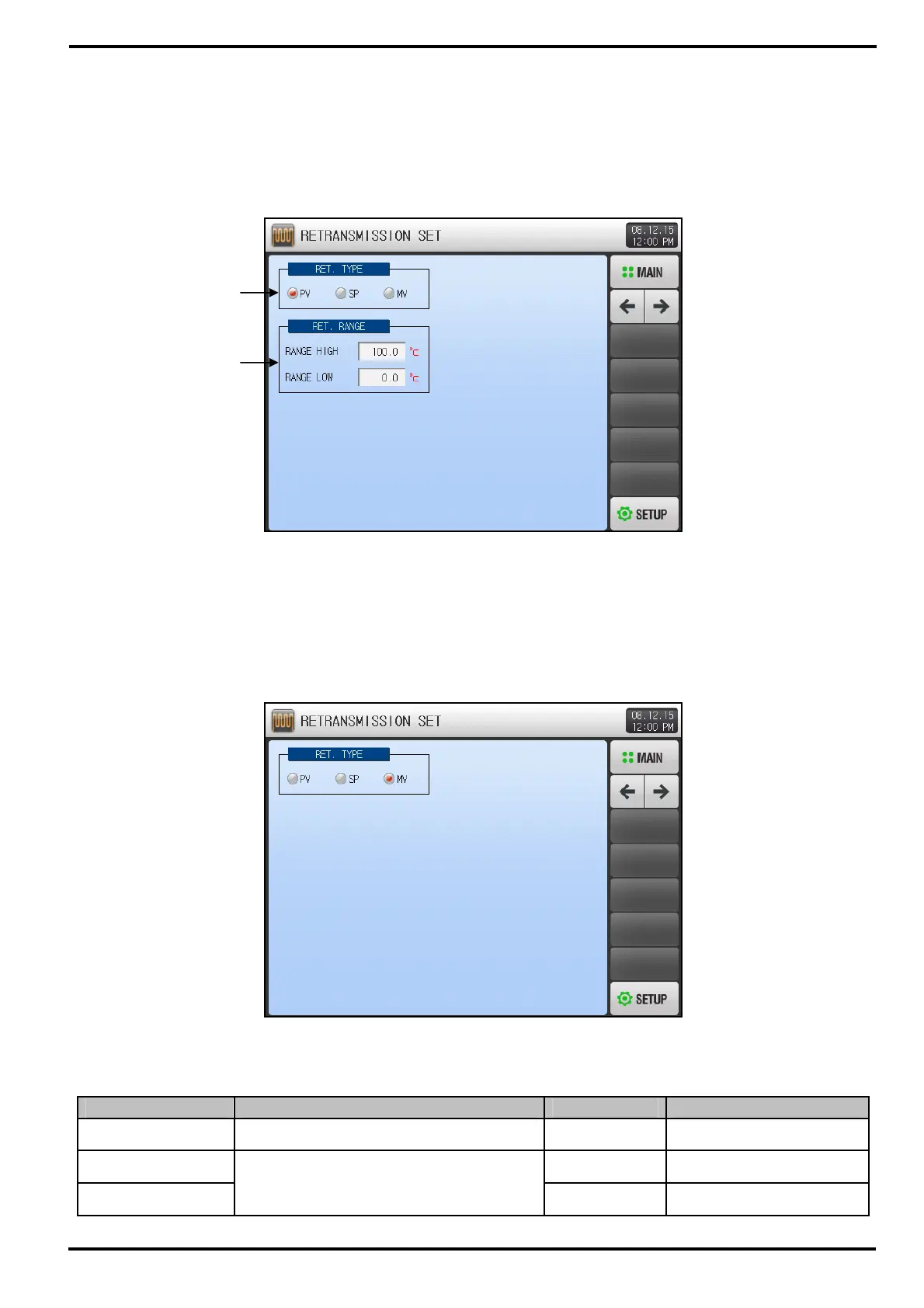

[Figure 4-5] Retransmission Set Screen-3(PV, SP)
①
②
[Figure 4-6] Output Setup Screen-3(MV)
