Samwontech TEMP2500 User Manual

SAMWONTECH
2nd Edition of TEMP2000_Series IM : July. 16. 2010 Page 55 / 87
7. INNER SIGNAL (IS) CONFIGURATION
7.1 Inner Signal Setting
▶ This screen enables to setup the Application Object, Type and Operation.
▶ Setting 8 (IS1∼IS8) Inner Signal Operation.
▶ Inner Signal Operation, Range and Delay Time can be set at [Figure 7-1 Inner Signal Setup Screen].
① Set Inner Signal Application Type.
☞ SP : Present Setting Point
☞ PV : Process Value
- When selected to PV, it has hysteresis of EUS 0.5%(Not Changeable).
☞ TSP : Target Setting Point for Program Control
② Set Inner Signal Operation Band.
☞ Within Range : Inner Signal becomes ON when current value of Inner Signal Type is within the
High/Low Operation Range.
☞ Out of Range : Inner Signal becomes ON when current value of Inner Signal Type is out of the
High/Low Operation Range.
③ Set Range High, Low and Delay Time for the object.
①
②
③
④

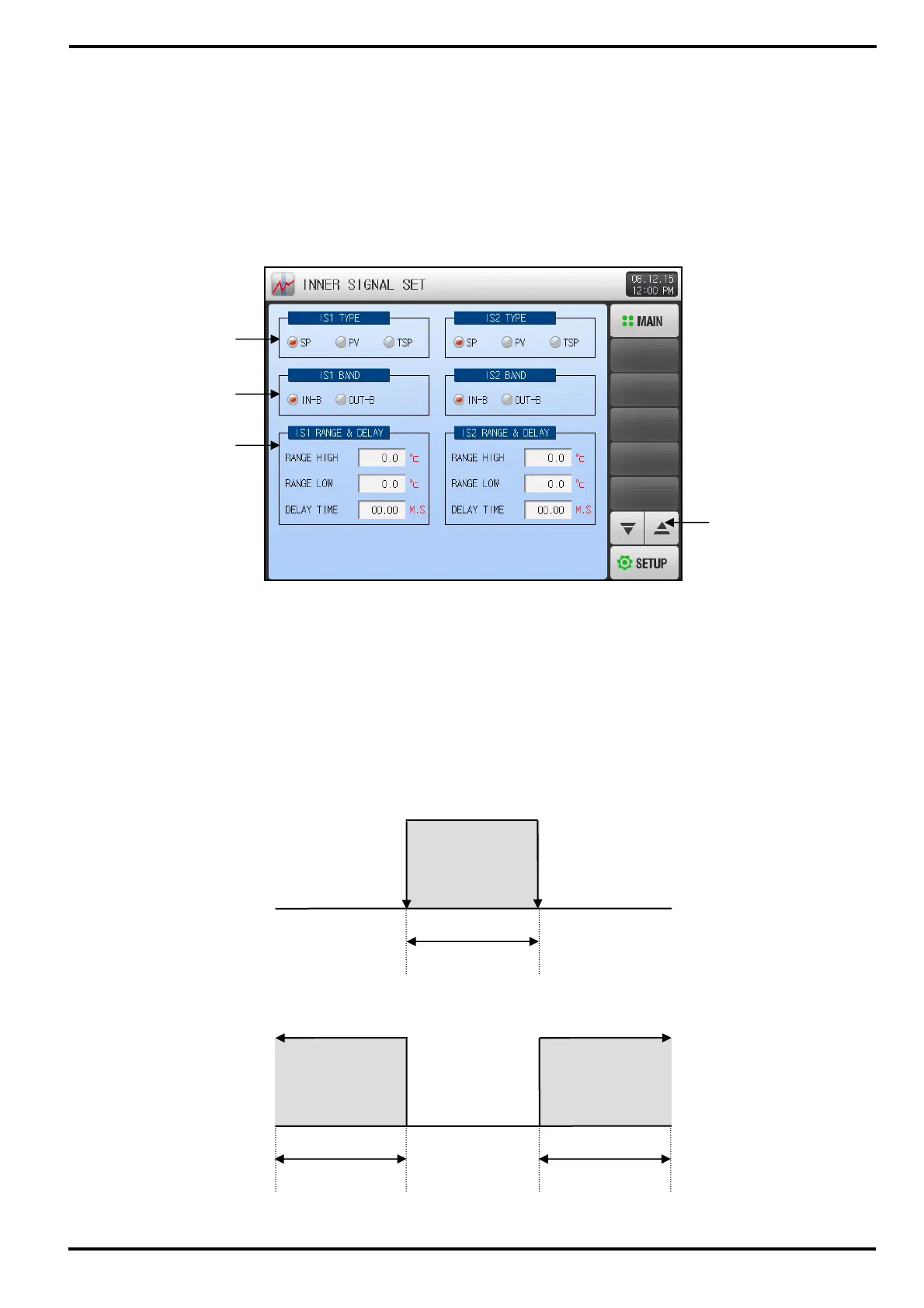

[Figure 7-1] Inner Signal Setup Screen
Within Range
Operation
IS Range Low Sensor
Range Low
Sensor
Range High
IS Range High
Inner Signal ON Section
Out of Range
Operation
Out of Range
Operation
IS Range Low Sensor Range Low Sensor Range High IS Range High
Inner Signal ON Section Inner Signal ON Section
