Samwontech TEMP2500 User Manual

SAMWONTECH
2nd Edition of TEMP2000_Series IM : July. 16. 2010 Page 57 / 87

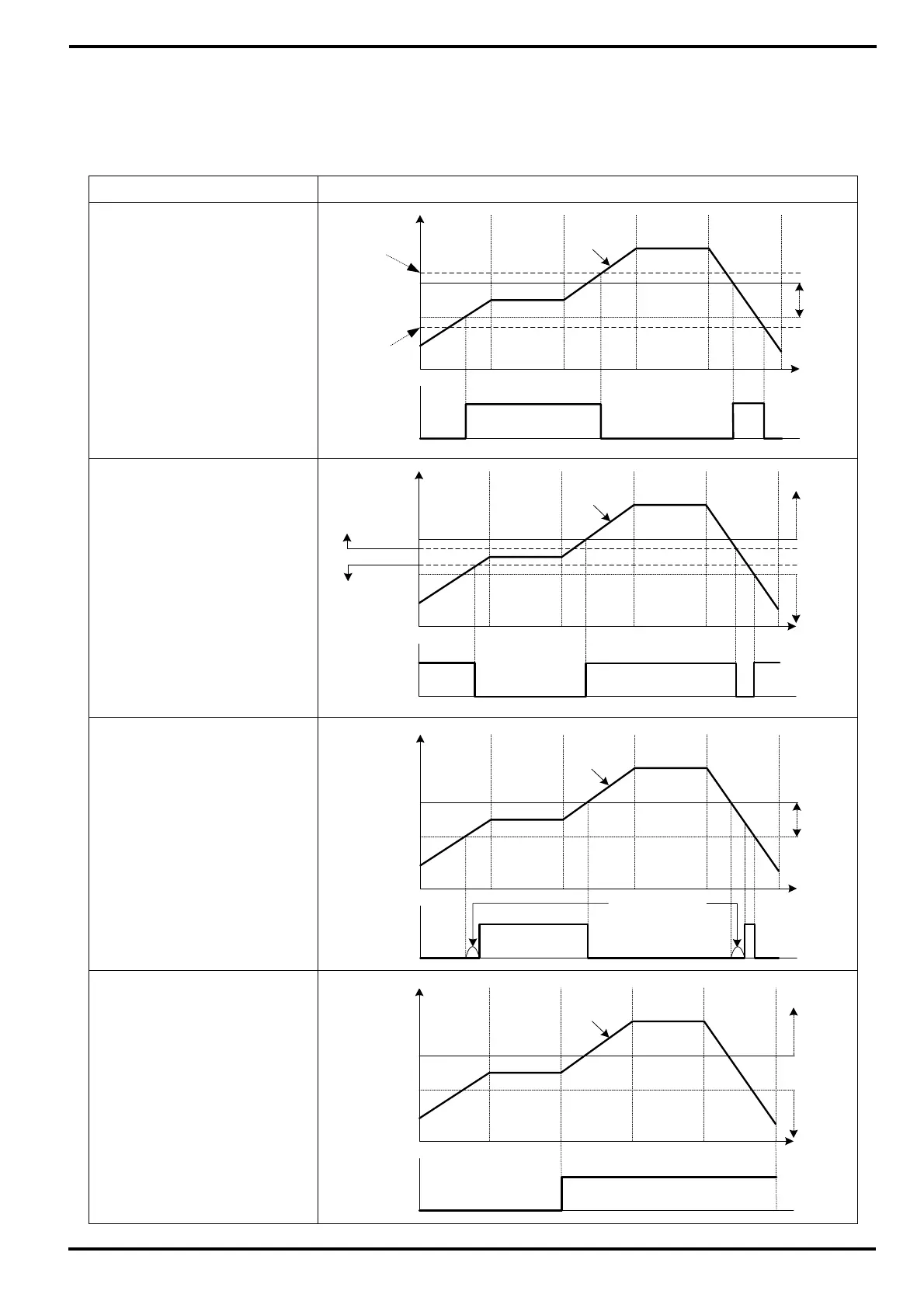

7.2 Inner Signal Operation
▶ By setup the Slope from Fix Operation, “TSP(Target Setting Point)” works same as “TSP” in Program
Control. But “TSP” work as “Setting Point(SP)” if the change ratio is not set.
Setup Inner Signal Operation
▶ Input = 0.0 ~ 100.0
→ EUS 0.5% = 0.5
▶ Operation Type = Pattern
▶ TYPE = Target Value(PV)
▶ Range Low = 30.0%
▶ Range High = 50.0%
▶ Oper. Band =In Band
(INB)
▶ Delay Time = 00.00
▶ Input = 0.0 ~ 100.0
→ EUS 0.5% = 0.5
▶ Operation Type = Pattern
▶ TYPE = Target Value (PV)
▶ Range Low = 30.0%
▶ Range High = 50.0%
▶ Oper. Band = Outside
Band (OUTB)
▶ Delay Time = 00.00
▶ Input = 0.0 ~ 100.0
▶ Operation Type = Pattern
▶ TYPE = Set Point(SP)
▶ Range Low = 30.0%
▶ Range High = 50.0%
▶ Oper. Band =In Band
(INB)
▶ Delay Time = 00.10
▶ Input = 0.0 ~ 100.0
▶ Operation Type = Pattern
▶ TYPE=Target Set Point
(TSP)
▶ Range Low = 30.0%
▶ Range High = 50.0%
▶ Oper. Band = Outside
Band (OUTB)
▶ Delay Time = 00.00
50.0
SEG1 SEG2 SEG3 SEG4 SEG5
30.0
ON
OFF
IS
HYS
50.5
HYS
29.5
PV
INB
HYS
49.5
HYS
30.5
50.0
SEG1 SEG2 SEG3 SEG4 SEG5
30.0
ON
OFF
IS
PV
OUTB
OUTB
50.0
SEG1 SEG2 SEG3 SEG4 SEG5
30.0
ON
OFF
IS
SP
INB
DELAY TIME
50.0
SEG1 SEG2 SEG3 SEG4 SEG5
30.0
ON
OFF
IS
SP
OUTB
OUTB
