4. CONTROL & RETRANSMISSION OUTPUT
4.1 Control Output setting
4.1.1 Output Set Screen-1
▶ Setup Output Types for Temperature Control.
▶ Following is the screen to check/setup the product setup in graphic.
① Set SSR Output Terminal.
☞ Setup screen is displayed as shown in [Figure 4-2 SSR Output Terminal Setup Screen].
② Set SSR Output Terminal.
☞ Setup screen is displayed as shown in [Figure 4-2 SSR Output Terminal Setup Screen].
③ Set SCR Output Terminal and Retransmission Terminal.
☞ Setup screen is displayed as shown in [Figure 4-3 SCR Output Terminal & Retransmission Terminal
Setup Screen].
④ Set SCR Output Terminal and Retransmission Terminal.
☞ Setup screen is displayed as shown in [Figure 4-3 SCR Output Terminal & Retransmission Terminal
Setup Screen].
⑤ Move to previous or next screen using Up/Down button.

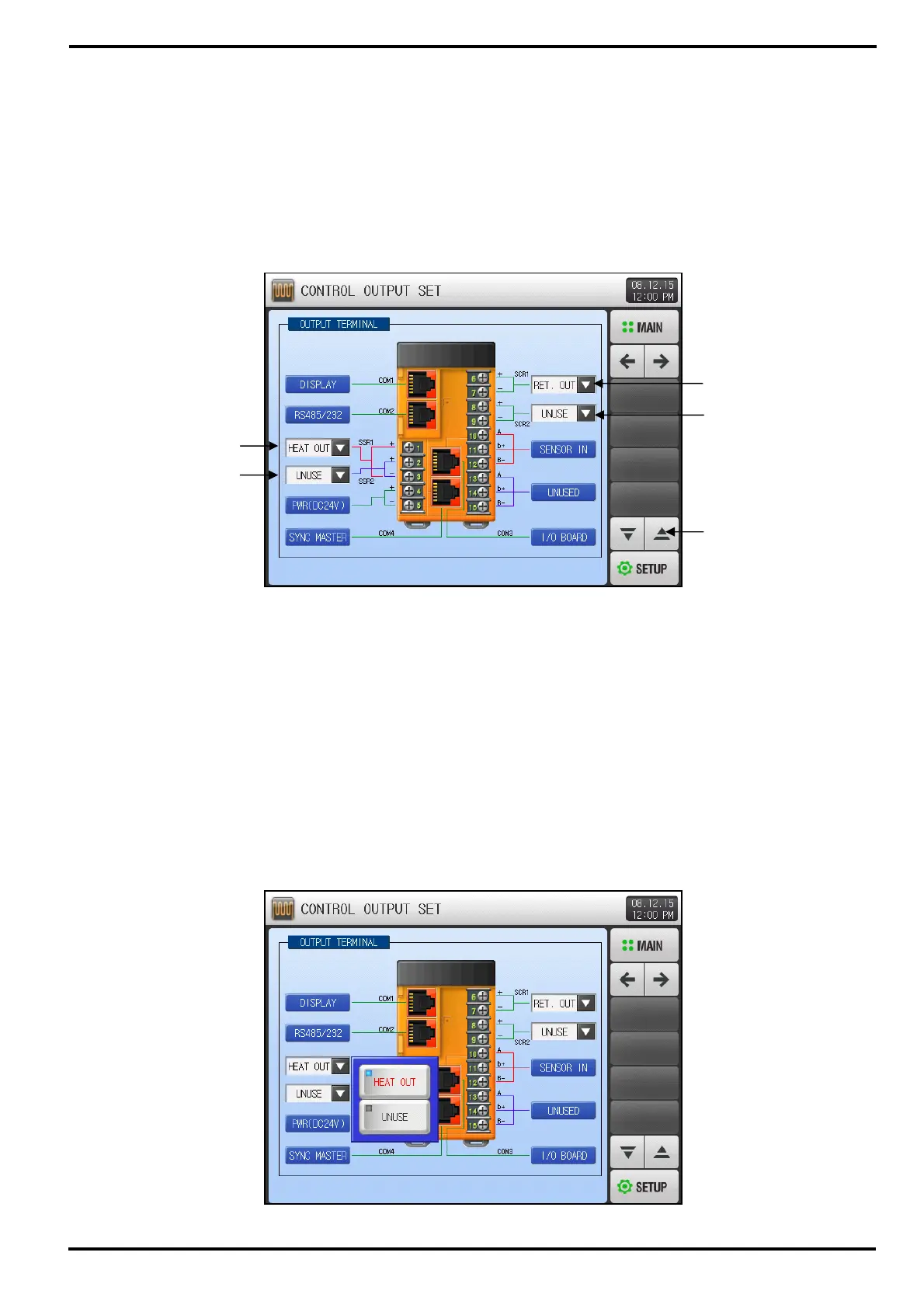

[Figure 4-1] Output Set Screen-1
